104439-7
| Manufacturer | |
| Description | Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RCPT 8POS .100 22-26 30AU Headers & Wire Housings 2X8 MTE RCPT SR PLAIN .100CL 2X8 MTE RCPT SR PLAIN .100CL 2X8 MTE RCPT SR PLAIN .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE |
| Category |
Business
| Tradename | AMPMODU | Standard Pack | 26 |
| Product Category | Headers & Wire Housings | Standard Package | Rail / Tube |
Compliance
| RoHS | Contains lead / RoHS non-compliant | Standard Number | CSA LR7189, UL E28476 |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage - Supply | 267 V | Contact Resistance | 15 mΩ |
| Resistance - Input | 5000 | Connector Impedance | 刺破式压接 (IDC), 压接 |
| Current Rating (Max) | 3 A | Voltage - Protection Rating (VPR) | 600 VAC |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Lock Type | 不带 | Packaging | Tube |
| Wire Type | Ribbon Cable | Body Color | 黑色 |
| Wire Gauge | 22-26 AWG | Row Spacing | 2.54 mm |
| Termination | IDT | Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Contact Finish | Gold Over Nickel | Mounting Style | Wire |
| Number of Rows | 1 | Pressure (PSI) | 高 |
| Height (Inches) | .098 | Insert Material | 磷青铜 |
| Contact Material | Phosphor Bronze | Housing Material | Thermoplastic |
| Length - Overall | 1.6 | Package Quantity | 26 |
| Panel Mount Type | 不带 | Cable Termination | IDC |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 8 | Insulation Diameter | 1.37 mm [ .054 in ] |
| Number of Positions | 8 | Compatible Shell Size | 公端 |
| Mounting Hole Diameter | 不带 | Contact Layout, Typical | 同轴 |
| Contact Finish Thickness | 30µin (0.76µm) | Static Discharge Shielding | 不带 |
| Contact Finish - Post (Mating) | 亮光 | ||
Product Info
| Note | 带状电缆带缺口把手 22-28 AWG, 气动终结器的最大绝缘直径为 1.14 [0.045]。 | Type | IDC Connector |
| Gender | RCP | Series | AMPMODU MTE |
| Features | Closed End | Product Type | Receptacles / Sockets - Housings |
Environmental
| Operating Temperature | - 65 C to + 105 C | ||
Documents & Media
Similar Parts

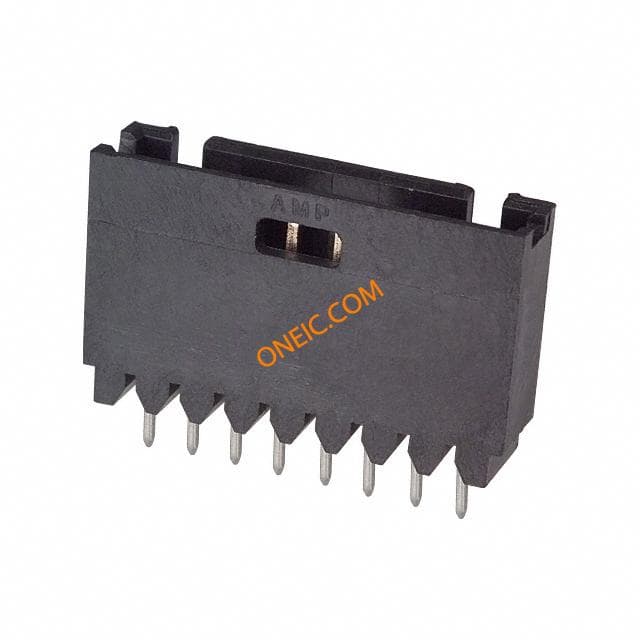

5-102202-5
te connectivity / amp
Conn Shrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 8POS 15AU Headers & Wire Housings SHROUDED VERT SNGL 8 with standoffs Conn Shrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 8Mating Post Length = 6.10 mmSearch Keywords:board to board, AMPMODU, pcb connectors, Header,ThroughHole;Shrouded;Vertical;CopperAlloy;Thermoplastic;8;3A 08 MODII HDR SRST SHRD LF
5-146282-8
te connectivity / amp
Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Tube .100 inch AMPMODU Headers CONN HEADER BRKWAY 8POS SGL .100 Headers & Wire Housings 08 MODII HDR SRST B/A .100CL 08 MODII HDR SRST B/A .100CL
5-103414-6
te connectivity / amp
Conn Shrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 8POS 30AU TE Connectivity AMPMODU Series 2.54mm Pitch 8 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings SHROUDED VERT SNGL 8 with standoffs Conn Shrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 8Mating Post Length = 6.10 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 2.54mm,Header,shrd,vert,SR,8W,Au TE Connectivity AMPMODU Mod II 系列 8路 2.54mm节距 (1排) 直 PCB 针座 , 焊接端接, 3A, 通孔 08 MODII HDR SRST SHRD LF
102203-5
te connectivity / amp
Conn Shrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole Gang of Tubes .100 inch AMPMODU Headers CONN HEADER R/A .100 8POS 15AU Headers & Wire Housings SHROUDED RA SINGLE 8 with standoffs Conn Shrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole Gang of Tubes Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 8Mating Post Length = 6.10 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 08 MODII HDR SRRA SHRD .100CL
102202-5
te connectivity / amp
Conn Shrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 8POS 15AU Headers & Wire Housings SHROUDED VERT SNGL 8 with standoffs Conn Shrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 8Mating Post Length = 6.10 mmSearch Keywords:board to board, AMPMODU, pcb connectors, Header,ThroughHole;Shrouded;Vertical;CopperAlloy;Thermoplastic;8;3A 08 MODII HDR SRST SHRD .100CL

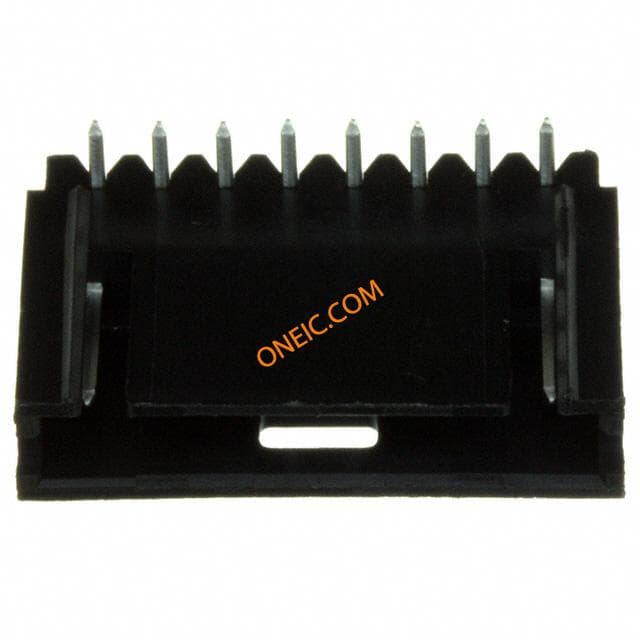

5-102523-6
