104078-1
| Manufacturer | |
| Description | Conn Socket Strip RCP 20 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN RECEPT 20POS .050 VERT DUAL Board to Board & Mezzanine Connectors 20P RECEPTACLE 2508 Conn Socket Strip RCP 20 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Receptacle AssemblyNumber of Positions = 20Number of Rows = DualVertical Mount AnglePCB Mount Style = Thru HoleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 20 SYSTEM 50 RCPT ASSY DRST |
| Category |
Business
| Tradename | AMPMODU | Other Names | A3216 |
| Product Category | Board to Board & Mezzanine Connectors | Standard Package | Rail / Tube |
| Factory Pack Quantity | 38 | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| Approved Countries | CSA LR7189, UL E28476 | RoHSELV Compliance | ELV compliant, 5 of 6 Compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 30 V | Voltage - Supply | 30 |
| Resistance - Input | 5000 | Voltage - Rated AC | 30 |
| Voltage - Breakdown | 500 | Current Rating (Max) | 4 |
| Insulation Resistance | 5,000 | ||
Mechanical
| Color | Black | Pitch | 1.27 mm |
| Height | 8.89 mm [ .35 in ] | Packaging | Tube |
| Body Color | 黑色 | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Housing Color | Black |
| Mounting Type | Vertical | Connector Type | Receptacle |
| Contact Finish | Gold Over Nickel | Flange Feature | Without |
| Mounting Style | Thru Hole | Number of Rows | 2 |
| Insert Material | 铜合金 | Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic | Mounting Feature | 压具柱体 |
| Package Quantity | Tube | Panel Mount Type | 通孔 |
| Termination Style | Through Hole | Height Above Board | 0.350" (8.89mm) |
| Number of Contacts | 20 | Number of Positions | 20 |
| Compatible Shell Size | 插头组件 | Contact Length - Post | 2.54 mm [ .1 in ] |
| Surface Mount Land Size | Without | Termination Post Length | 2.54 [0.100] |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | Socket Strip | Gender | RCP |
| Series | AMPMODU SYSTEM 50 | Manufacturer | AMP |
| Product Type | Receptacle Assembly | Assembly Configuration | Board Standoff |
| Number of Positions Loaded | All | ||
Environmental
| Temperature Range | -65 â +105 | Operating Temperature | -65 – 105 |
Similar Parts

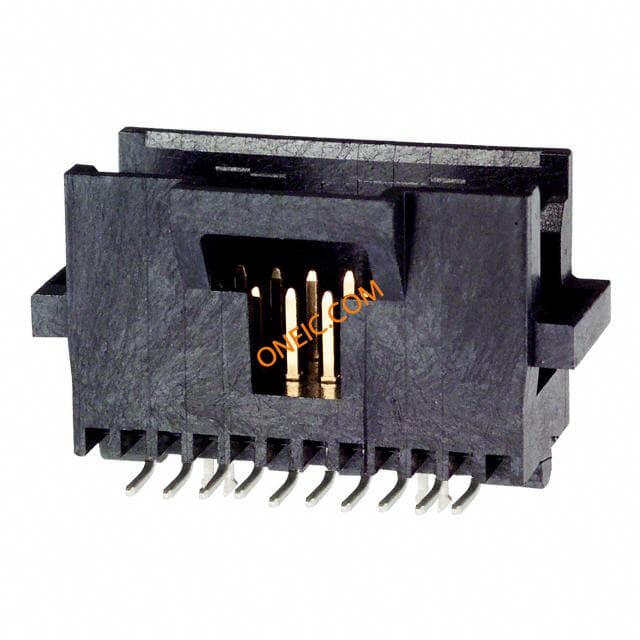

5-104549-2
te connectivity / amp
Conn Shrouded Header HDR 20 POS 1.27mm Solder ST SMD Tube .050 X .100 AMPMODU System 50 CONN HEADER 20POS .050" STR GOLD TE Connectivity AMPMODU Series 1.27mm Pitch 20 Way 2 Row Straight PCB Header, Solder Termination Headers & Wire Housings 20 POS SMT HDR VERT DUAL ROW Conn Shrouded Header HDR 20 POS 1.27mm Solder ST SMD Tube Product Highlights:Header AssemblyNumber of Positions = 20Number of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU HEADER, STR, 20WAY, SM HEADERASSEMBLY,AMPMODU,SYSTEM50,20POSITION,DUALROW,SHROUDED,VERTICAL TE Connectivity AMPMODU System 50 系列 1.27mm节距 20路 (2排) 直 PCB 针座, 焊接端接 , 表面安装 20 SYS50 S/M HDR DRST SHRDSN
104069-1
te connectivity / amp
Conn Shrouded Header HDR 20 POS 1.27mm Solder RA Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN 20POS BRD/BRD SHRD HEAD RT Headers & Wire Housings SYS 50 20P HEADER SHROUDED Conn Shrouded Header HDR 20 POS 1.27mm Solder RA Thru-Hole Tube Product Highlights:Header AssemblyNumber of Positions = 20Number of Rows = DualShroudedRight Angle Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 20 SYSTEM 50 HDR DRRA SHRD
104666-1
te connectivity / amp
Conn Shrouded Header HDR 20 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER 20POS VERT DUAL GOLD Headers & Wire Housings 20 SYSTEM 50 HDR DRST SHRD Conn Shrouded Header HDR 20 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Header AssemblyNumber of Positions = 20Number of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 20 SYSTEM 50 HDR DRST SHRD
104068-1
te connectivity / amp
Conn Shrouded Header HDR 20 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER VERT .050 20POS AU Headers & Wire Housings 20P HEADER SHRD 1134 Conn Shrouded Header HDR 20 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Header AssemblyNumber of Positions = 20Number of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU CONNECTOR, HEADER, THT, 2.54MM, 20WAY SYS50SHRDHDRASSY,20SYSTEM50HDRDRSTSHRD 20 SYSTEM 50 HDR DRST SHRD
5-103916-2
te connectivity / amp
Conn Unshrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER .050 20POS VERT T/H Headers & Wire Housings 050X100 HDR 2X10P VRT T/H U/S Conn Unshrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:Header AssemblyNumber of Positions = 20Number of Rows = DualNot ShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU TE Connectivity AMPMODU System 50 系列 1.27mm节距 20路 (2排) 垂直 PCB 针座, 焊接端接, 1A , 通孔 20 SYS 50 HDR DRST UNSHRD SN
5-104068-1
te connectivity / amp
Conn Shrouded Header HDR 20 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER VERT .050 20POS 30AU Headers & Wire Housings 20 POS HDR VERT DUAL ROW Conn Shrouded Header HDR 20 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Header AssemblyNumber of Positions = 20Number of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU CONN, PCB VERTI. HEADER 20 WAY HEADERASSEMBLY,AMPMODU,SYSTEM50,20POSITION,DUALROW,SHROUDED,VERTICAL TE Connectivity AMPMODU System 50 系列 1.27mm节距 20路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 20 SYSTEM 50 HDR DRST SHRD

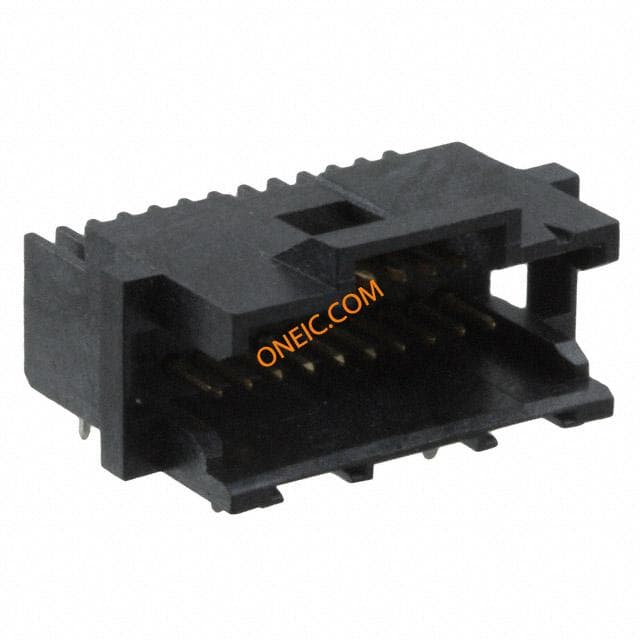

5-104069-1
