104068-1
| Manufacturer | |
| Description | Conn Shrouded Header HDR 20 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER VERT .050 20POS AU Headers & Wire Housings 20P HEADER SHRD 1134 Conn Shrouded Header HDR 20 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Header AssemblyNumber of Positions = 20Number of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU CONNECTOR, HEADER, THT, 2.54MM, 20WAY SYS50SHRDHDRASSY,20SYSTEM50HDRDRSTSHRD 20 SYSTEM 50 HDR DRST SHRD |
| Category |
Business
| Tradename | AMPMODU | Other Names | A3210 |
| Product Category | Headers & Wire Housings | Standard Package | Rail / Tube |
| Factory Pack Quantity | 27 | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | Tariff No | 85366930 |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHSELV Compliance | ELV compliant, 5 of 6 Compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Range deg/s | :TE - AMPMODU System 50 Series | Voltage Rating | 30 VAC |
| Voltage - Supply | 30 | Voltage - Breakdown | 500 |
| Insulation Resistance | 5,000 | Voltage - Supply (Min) | 30VAC |
Mechanical
| Color | Black | Depth | 8.73 mm |
| Pitch | 1.27 mm | Height | 9.9 mm |
| Weight | 0.02 | Packaging | Tube |
| Shrouding | Yes | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Housing Color | Black |
| Mounting Type | Vertical | Connector Type | Shrouded |
| Contact Finish | Gold Over Nickel | Mounting Style | Thru Hole |
| Number of Rows | 2 | Height (Inches) | 0.390" (9.91mm) |
| Contact Material | Phosphor Bronze | Housing Material | Thermoplastic |
| Length - Overall | 18.9 mm | Package Quantity | Tube |
| Termination Style | Through Hole | Number of Contacts | 20 |
| Contact Termination | :Through Hole Vertical | Number of Positions | 20 |
| Contact Length - Mating | 0.125" (3.18mm) | Termination Post Length | 2.54 [0.100] |
| Contact Finish Thickness | 30µin (0.76µm) | Height Stacking (Mating) | 0.450" (11.43mm) |
Product Info
| Note | **Circuit identification feature omitted on 10 and 12 position headers. | Type | Shrouded Header |
| Gender | HDR | Series | AMPMODU System 50 |
| Manufacturer | AMP | Product Type | Header Assembly |
| Number of Positions Loaded | All | ||
Environmental
| Temperature Range | -65 â +105 | Operating Temperature | -65C to 105C |
Documents & Media
Similar Parts

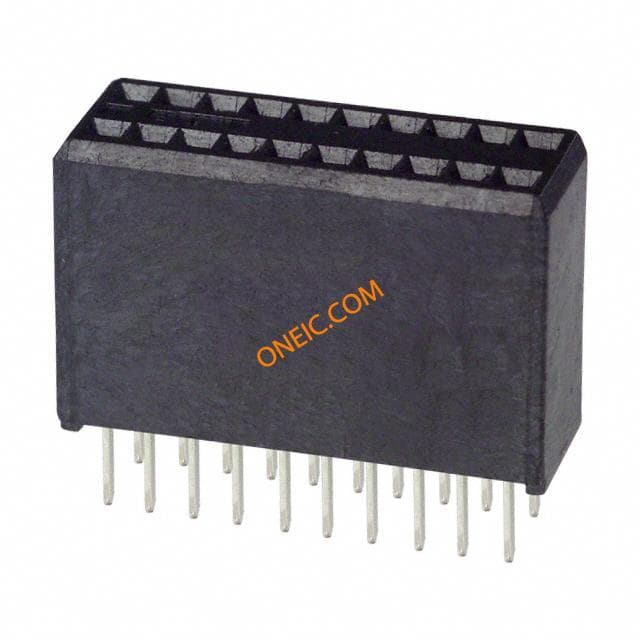

5-104078-1
