103670-2
| Manufacturer | |
| Description | Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 3POS 15AU Headers & Wire Housings LTCHNG HDR W/SWAGE 3 Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 3Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE AMPMODUMTEVERTASSY,03MTEHDRSRSTLATCHW/HLDWN 03 MTE HDR SRST LATCH W/HLDWN |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Rail / Tube | Factory Pack Quantity | 52 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | Standard Number | CSA LR7189, UL E28476 |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Switch Function | Latched | Contact Resistance | 15 mohm |
| Connector Impedance | 刺破式压接 (IDC), 压接 | Current Rating (Max) | 3 A |
| Insulation Resistance | 5000 MOhms | Voltage - Protection Rating (VPR) | 600 V |
Mechanical
| Color | Black | Depth | 6.98 mm |
| Pitch | 2.54 mm | Height | 13.59 mm |
| Length | 10.16 mm [ .4 in ] | Packaging | Tube |
| Body Color | 黑色 | Lead Style | 正方形 |
| Row Spacing | 2.54 mm | Termination | Solder |
| Contact Type | Male Pin | Housing Color | Black |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Gold Over Nickel | Contact Timing | Without |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Insert Material | 黄铜 | Contact Material | Brass |
| Housing Material | Thermoplastic | Length - Overall | 10.16 mm |
| Mounting Feature | 压具 | Package Quantity | 52 |
| Panel Mount Type | 垂直 | Primary Material | InterconnectSystem |
| Termination Style | Through Hole | 1st Connector Type | 带罩 |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 3 |
| Termination Finish | 带有 | Contact Tail Length | 2.54 µm [ 100 µin ] |
| Number of Positions | 3 | Compatible Shell Size | 母端护套组件 |
| Contact Length - Post | 3.3 mm [ .13 in ] | Mounting Hole Diameter | 带有 |
| Contact Finish - Mating | 锡铅 | Contact Length - Mating | 0.230" (5.84mm) |
| Termination Post Length | 5.84 mm [ .23 in ] | Contact Finish Thickness | 15µin (0.38µm) |
| Static Discharge Shielding | 不带 | ||
Product Info
| Note | 使用 91417-1 号键控工具来拆卸用于键控的柱体。 | Type | Shrouded Header |
| Gender | HDR | Series | AMPMODU MTE |
| DELETED | Not Compliant | Manufacturer | AMPMODU/MTESeries |
| Pattern Type | 否 | Product Type | Headers |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | - 65 C to + 105 C | Thermal Resistance of Package | .69 mm [ .027 – .08 in ] |
Documents & Media
Similar Parts
103959-2
te connectivity / amp
Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 3POS .100 26-30 TIN Headers & Wire Housings 8X3 MTE RCPT SR LATCH .100CL 8X3 MTE RCPT SR LATCH .100CL
103969-2
te connectivity / amp
Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip Headers & Wire Housings 8X3 MTE RCPT SR RIBBED .100CL .100 AMPMODU Headers, Housings & Contacts CONN RECPT 3POS .100 22-26 15AU
103958-2
te connectivity / amp
Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 3POS .100 POLAR 30AU Headers & Wire Housings RECEPTACLE ASSY 3P Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 3Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE MTERECPASSY,8X3MTERCPTSRLATCH.100CL 8X3 MTE RCPT SR LATCH .100CL
5-103958-2
te connectivity / amp
Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 3POS .100 POLAR 30AU MTE Housing,receptacle,IDC,3way Headers & Wire Housings RECEPTACLE ASSY 3P Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 3Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE, 3POS, 2.54MM MTERECPASSY,8X3MTERCPTSRLATCH.100CL TE Connectivity AMPMODU MTE 系列 3路 2.54mm节距 母 IDC 连接器 , 电缆安装 8X3 MTE RCPT SR LATCH .100CL
104257-2
te connectivity / amp
Conn Housing RCP 3 POS 2.54mm Crimp ST .100 AMPMODU Headers, Housings & Contacts CONN RECPT 3POS .1" POL UNLOAD 3 way MTE Receptacle Housing Headers & Wire Housings RECEPTACLE ASSY 3P Conn Housing RCP 3 POS 2.54mm Crimp ST Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 3Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, RECEPTACLE, 3WAY ReceptacleAssembly;Thermoplastic;Receptacle;Single;0.100in.;MTE(IDC) Plug; wire-board; female; PIN:3; w/o terminals; 2.54mm; for cable 03 MTE RCPT HSG SR LATCH .100
103648-2
te connectivity / amp
Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount Headers & Wire Housings 03 MTE RCPT HSG SR R .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 3POS .100 UNLOADED Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 3Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE, 3POS, 2 AMPMODU03MTERCPTHSGSRRIB.100CL TE Connectivity AMPMODU MTE 系列 3路 2.54mm节距 母 连接器 , 电缆安装 03 MTE RCPT HSG SR RIB .100CL
103960-2
te connectivity / amp
Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RCPT 3POS .100 26-30 15GOLD Headers & Wire Housings RCPT 3 POS 15 AU Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 3Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 8X3 MTE RCPT SR LATCH .100CL

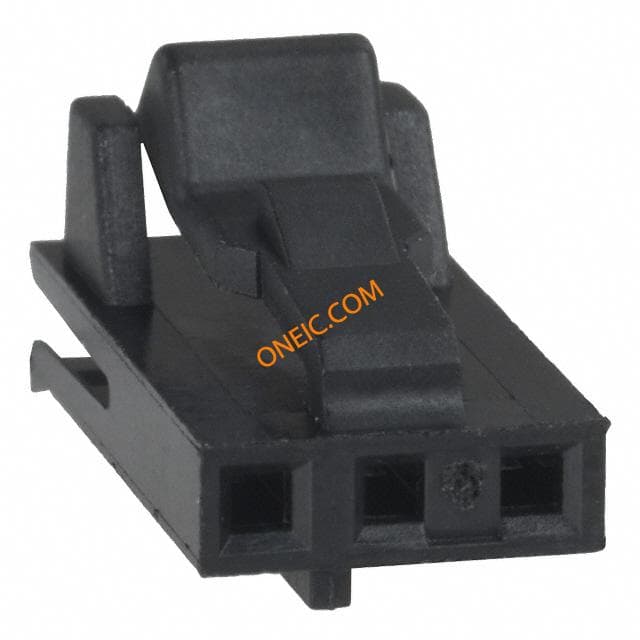

487526-2
te connectivity / amp
Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors CONN RCPT 3POS.100 SLIM W/LATCH FFC & FPC Connectors 003 HOUSING FFC RCPT Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = SlimlineNumber of Positions = 3Number of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector FFC/FPC CONNECTOR, PLUG, 3POS, 1ROW CONNECTOR,RECEPTACLEHOUSING,FLEXIBLEFILM,3POS,2.54MM,SLIMLINE,SINGLER 003 HOUSING FFC RCPT 100CL SR
103956-2
te connectivity / amp
Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 3POS .100 POLAR TIN Headers & Wire Housings RECEPTACLE ASSY 3P Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 3Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 8X3MTERCPTSRLATCH.100CL 8X3 MTE RCPT SR LATCH .100CL
5-103957-2
te connectivity / amp
Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 3POS .100 POLAR 15AU Headers & Wire Housings RECEPTACLE ASSY 3P Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 3Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE, 3POS, 2.54MM MTERECPASSY,8X3MTERCPTSRLATCH.100CL 8X3 MTE RCPT SR LATCH .100CL
103957-2
te connectivity / amp
Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 3POS .100 POLAR 15AU Headers & Wire Housings RECEPTACLE ASSY 3P Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 3Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE MTERECPASSY,8X3MTERCPTSRLATCH.100CL 8X3 MTE RCPT SR LATCH .100CL

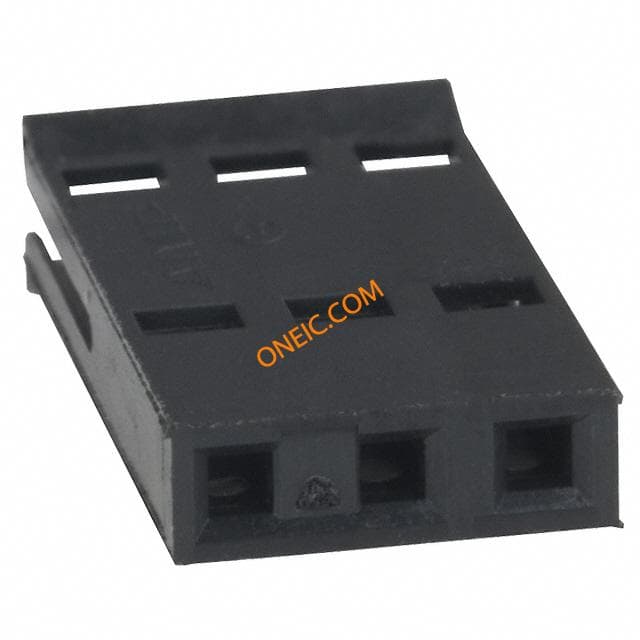

487378-2
te connectivity / amp
Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors CONN RECEPT 3POS .100 SLIMLINE FFC & FPC Connectors HOUSING 3 POS SLIMLINE Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = SlimlineNumber of Positions = 3Number of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector HOUSING, RECEPTACLE, FFC, 2.54MM, 3WAY 003 HOUSING FFC RCPT 100CL SR
103961-2
te connectivity / amp
Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RCPT 3POS .100 26-30 30GOLD Headers & Wire Housings 8X3 MTE RCPT SR LATCH .100CL 8X3 MTE RCPT SR LATCH .100CL
5-103956-2
te connectivity / amp
Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 3POS .100 POLAR TIN Headers & Wire Housings RECEPTACLE ASSY 3P Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 3Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE, 3POS, 2.54MM MTERECPASSY,8X3MTERCPTSRLATCH.100CL TE Connectivity AMPMODU MTE 系列 3路 2.54mm节距 母 插座壳体 , 电缆安装 8X3 MTE RCPT SR LATCH .100CL

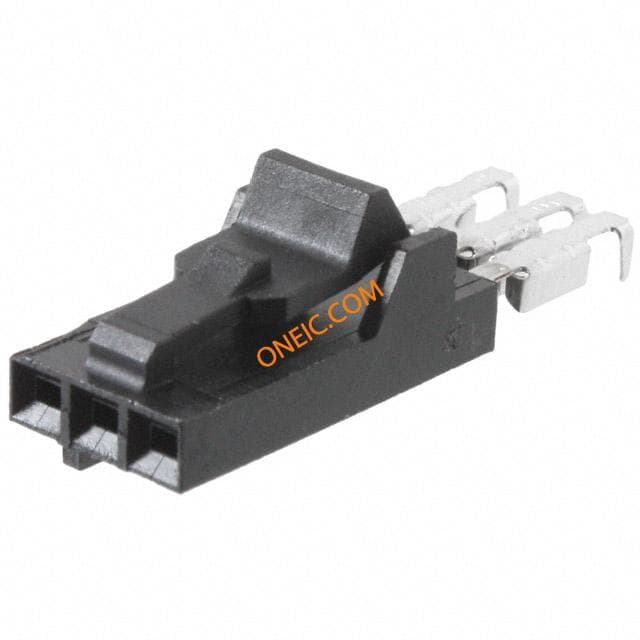

1-103957-3
