103166-7
| Manufacturer | |
| Description | Conn Shrouded Header HDR 18 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 18POS 30AU Headers & Wire Housings SHROUDED RA DUAL 18 detent windows .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 18Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 18 MODII HDR DRRA SHRD .100CL |
| Category |
Business
| Tradename | AMPMODU | Other Names | A26774 |
| Standard Pack | 192 | Product Category | Headers & Wire Housings |
| Standard Package | Trays | Factory Pack Quantity | 192 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | Leadfree Defin | Wave solder capable to 240°C |
| Standard Number | CSA LR7189, UL E28476 | RoHSELV Compliance | ELV compliant, 5 of 6 Compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Switch Function | Detent Windows | Connector Impedance | 制动器窗口 |
| Voltage - Breakdown | 750 | Current Rating (Max) | 3 |
| Insulation Resistance | 5,000 | Voltage - Protection Rating (VPR) | 750 Vrms |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Base Type | 带有 | Lock Type | 带有 |
| Packaging | Tray | Body Color | 黑色 |
| Lead Style | 正方形 | Stabilizer | 不带 |
| Row Spacing | 0.100" (2.54mm) | Termination | Solder |
| Contact Type | Male Pin | 1st Connector | No |
| 2nd Connector | With | Contact Shape | Square |
| Housing Color | Black | Mounting Type | Right Angle |
| Connector Type | Shrouded | Contact Finish | Gold Over Nickel |
| Fastening Type | Detent Lock | Mounting Style | 标准 |
| Number of Rows | 2 | Package / Case | 4-Sided |
| Shell Material | 4- 面 | Insert Material | 磷青铜 |
| Locking Feature | Detent Windows | Profile (W x H) | Standard |
| Contact Material | Phosphor Bronze | Housing Material | Thermoplastic |
| Length - Overall | 1.68 [0.066] | Mounting Feature | Without |
| Package Quantity | 192 | Panel Mount Type | Without |
| Size / Dimension | 0.64 [.025] | Termination Style | Through Hole |
| 1st Connector Type | 带罩 | 1st Contact Gender | Pin (Male) |
| Diameter - Outside | .64 mm [ .025 in ] | Number of Contacts | 18 |
| Termination Finish | 带有 | Number of Positions | 18 |
| Length - Post (Mating) | 8.08 mm | Mounting Hole Diameter | 带有 |
| Center Contact Material | 2.54 x 2.54 [.100 x .100] | Contact Length - Mating | 8.08 [0.318] |
| Surface Mount Land Size | No | Termination Post Length | 3.43 [0.135] |
| Contact Finish Thickness | 30µin (0.76µm) | Mounting Panel Thickness | With |
| Static Discharge Shielding | 不带 | Shell Size, Connector Layout | 1.68 mm [ .066 in ] |
| 1st Connector Mounting Feature | 否 | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | AMPMODU MOD II | Key Type | 否 |
| Manufacturer | AMP | Product Type | Header |
| Selectively Loaded | No | Number of Positions Loaded | All |
Environmental
| Seal Rating | 不带 | Temperature | No |
| Ingress Protection | 带罩 | Operating Temperature | -55 â +105 |
| Thermal Resistance of Package | 1.397 mm [ .055 in ] | Operating Temperature - Junction | 否 |
Documents & Media
Similar Parts
1-87456-3
te connectivity / amp
Conn Housing RCP 18 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 18POS .100 DUAL ROW Headers & Wire Housings 18 HSG COMP DR .100CL .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingNot PreloadedNumber of Positions = 18Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 18 MODIV HSG COMP DR .100CL
87922-5
te connectivity / amp
Conn Housing RCP 18 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSNG 18POS .100 POL W/STR Conn Housing RCP 18 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 18Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 18 MODIV HSG W/STR RLF DR MRKD
1-87631-4
te connectivity / amp
Conn Housing RCP 18 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 18POS .100 POL DUAL Headers & Wire Housings 18 P HOUSING Conn Housing RCP 18 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 18Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 18 MODIV HSG DR MKRD .100 POL
102448-7
te connectivity / amp
Conn IDC Connector RCP 18 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 18POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 18P 22-20 Conn IDC Connector RCP 18 POS 2.54mm IDT ST Cable Mount Product Highlights:ConnectorNot PreloadedHousing Gender = Connector - ReceptacleAccepts Contact Gender = Receptacle2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 18 AMPMODU MT ASSY DR .100CL

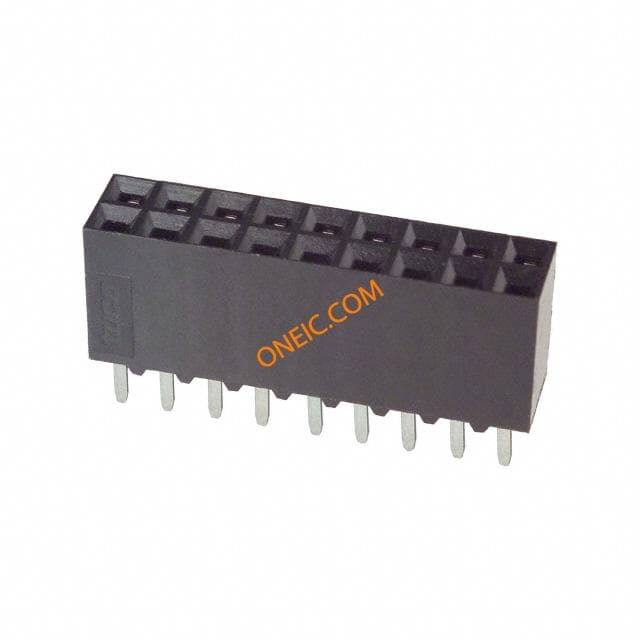

534206-9
