1-87631-4
| Manufacturer | |
| Description | Conn Housing RCP 18 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 18POS .100 POL DUAL Headers & Wire Housings 18 P HOUSING Conn Housing RCP 18 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 18Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 18 MODIV HSG DR MKRD .100 POL |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | Not applicable / RoHS Compliant | Standard Number | CSA LR7189, UL E28476 |
| Material Flammability Rating | 是 | ||
Electrical
| Voltage Rating | 250 V | Switch Function | Detent Latching |
| Voltage - Supply | 250 VAC | Contact Resistance | 12 mΩ |
| Resistance - Input | 5000 | Connector Impedance | 压接 |
| Current Rating (Max) | 3 A | Voltage - Supply (Min) | 250VAC |
| Connector - Voltage Input | Crimp | Voltage - Protection Rating (VPR) | 750 V |
Mechanical
| Color | Black | Depth | 15.24 mm |
| Pitch | 2.54 mm | Height | 3.14 mm [ .24 in ] |
| Length | 22.86 mm [ .9 in ] | Lock Type | 锁闩 |
| Packaging | Bulk | Body Color | 黑色 |
| Wire Gauge | 20-30 AWG | Row Spacing | 0.100" (2.54mm) |
| Contact Form | Female Socket | Contact Type | Female Socket |
| Lead Spacing | 0.100" (2.54mm) | Housing Color | Black |
| Mounting Type | Straight | Connector Type | Receptacle |
| Fastening Type | Locking Ramp | Number of Rows | 2 |
| Insert Material | 铍铜 | Contact Material | Phosphor Bronze |
| Housing Material | Nylon | Length - Overall | 22.86 mm |
| Package Quantity | 1 | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 18 |
| Contact Termination | Crimp | Number of Positions | 18 |
| Compatible Shell Size | 公端 | Mounting Hole Diameter | 带有 |
| Static Discharge Shielding | 不带 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | AMPMODU MOD IV |
| Product Type | Receptacles / Sockets - Housings | Number of Taps/Steps | 1 |
| Other Specifications | 是 | Output Configuration | Free Hanging (In-Line) |
| Application Specifics | Board to Board | ||
Environmental
| Temperature - Test | 标准部件 - 非辉光导线 | Operating Temperature | - 65 C to + 105 C |
Documents & Media
Similar Parts
103166-7
te connectivity / amp
Conn Shrouded Header HDR 18 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 18POS 30AU Headers & Wire Housings SHROUDED RA DUAL 18 detent windows .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 18Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 18 MODII HDR DRRA SHRD .100CL
104353-9
te connectivity / amp
Conn Unshrouded Header HDR 18 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 18POS R/A DUAL Headers & Wire Housings 18 MODII HDR DRRA B/A W/HLDWN 18 MODII HDR DRRA B/A W/HLDWN 18 MODII HDR DRRA B/A W/HLDWN Search Keywords:board to board, AMPMODU, pcb connectors,
104350-9
te connectivity / amp
Conn Unshrouded Header HDR 18 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 18POS DUAL 30AU
103169-7
te connectivity / amp
Conn Shrouded Header HDR 18 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 18POS 30AU Headers & Wire Housings 18 MODII HDR DRST SHRD .100CL .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 18Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 18 MODII HDR DRST SHRD .100CL
104352-9
te connectivity / amp
Conn Unshrouded Header HDR 18 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 18POS DUAL TIN
5-103166-7
te connectivity / amp

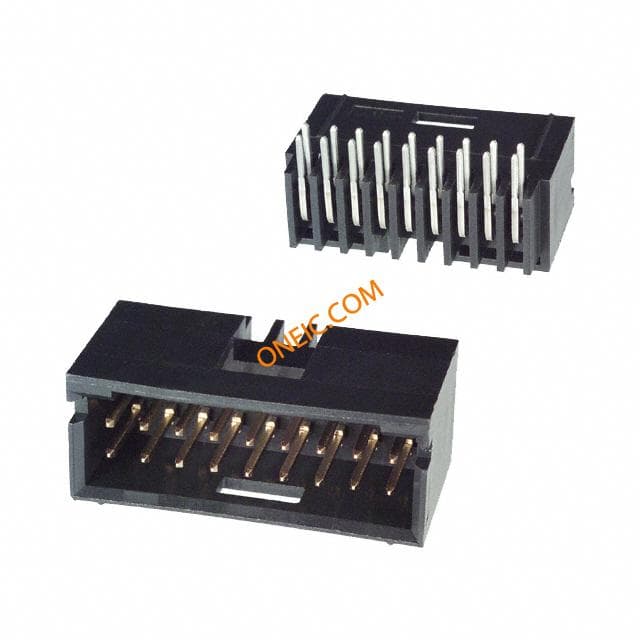

Conn Shrouded Header HDR 18 POS 2.54mm Solder RA Thru-Hole Tube .100 inch AMPMODU Headers CONN HEADER R/A .100 18POS 30AU Headers & Wire Housings SHROUDED RA DUAL 18 detent windows .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 18Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 18 MODII HDR DRRA SHRD LF
88189-4
te connectivity / amp
Conn Housing PL 18 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors CONN PLUG 18POS HSG W/DETENT 018 HOUSING FFC PIN DR 100CL 018 HOUSING FFC PIN DR 100CL Search Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector
146130-8
te connectivity / amp
Conn Unshrouded Header HDR 18 POS 2.54mm Solder ST SMD .100 inch AMPMODU Headers CONN HDR BRKWAY 18POS DUAL SMD Headers & Wire Housings 18 MODII HDR DRST SFMNT B/A Conn Unshrouded Header HDR 18 POS 2.54mm Solder ST SMD Search Keywords:board to board, AMPMODU, pcb connectors, 18 MODII HDR DRST SFMNT B/A
5-103168-7
te connectivity / amp

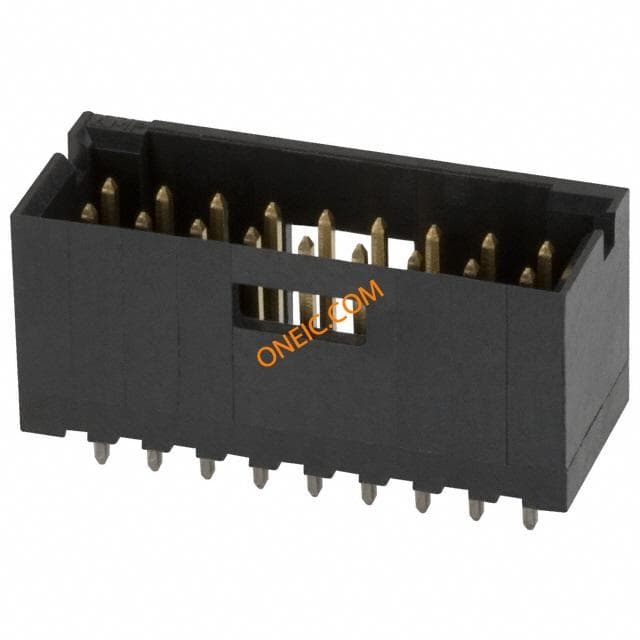

Conn Shrouded Header HDR 18 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 18POS 30AU Headers & Wire Housings HDR 2X09P VRT T/H Conn Shrouded Header HDR 18 POS 2.54mm Solder ST Thru-Hole Product Highlights:ConnectorWith ContactsHousing Gender = Header - PinContact Gender = PinHeader Type = ShroudedSearch Keywords:board to board, AMPMODU, pcb connectors, 18 MODII HDR DRST SHRD .100CL
