103080-7
| Manufacturer | |
| Description | Conn Shrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Headers CONN HEADER VERT 9POS PCB TIN Headers & Wire Housings 09 MODII HDR SRST SHRD .100CL 09 MODII HDR SRST SHRD .100CL |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Rail / Tube | Factory Pack Quantity | 20 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | Standard Number | CSA LR7189, UL E28476 |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current Rating (Max) | 3 A | Insulation Resistance | 5000 MOhms |
| Voltage - Protection Rating (VPR) | 750 Vrms | ||
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Base Type | 带有 | Lock Type | 不带 |
| Packaging | Tube | Body Color | 黑色 |
| Lead Style | 正方形 | Stabilizer | 不带 |
| Row Spacing | 2.54 mm | Termination | Solder |
| Contact Type | Male Pin | 1st Connector | 否 |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Tin-Lead Over Nickel | Mounting Style | 标准 |
| Number of Rows | 1 | Shell Material | 4- 面 |
| Insert Material | 铜合金 | Contact Material | Copper Alloy |
| Housing Material | Thermoplastic | Package Quantity | 20 |
| Panel Mount Type | 通孔 | Termination Style | Through Hole |
| 1st Connector Type | 带罩 | 1st Contact Gender | Pin (Male) |
| Diameter - Outside | .64 mm [ .025 in ] | Number of Contacts | 9 |
| Termination Finish | 带有 | Number of Positions | 9 |
| Length - Post (Mating) | 6.1 mm | Mounting Hole Diameter | 带有 |
| Contact Length - Mating | 0.240" (6.10mm) | Termination Post Length | 3.3 mm |
| Contact Finish Thickness | 100µin (2.54µm) | Static Discharge Shielding | 不带 |
| Shell Size, Connector Layout | 1.778 mm [ .07 in ] | 1st Connector Mounting Feature | 否 |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | AMPMODU MOD II | Key Type | 否 |
| Product Type | Headers | Number of Positions Loaded | All |
Environmental
| Seal Rating | 不带 | Ingress Protection | 带罩 |
| Operating Temperature | - 65 C to + 105 C | Thermal Resistance of Package | 1.397 mm [ .055 in ] |
| Operating Temperature - Junction | 否 | ||
Documents & Media
Similar Parts
104439-8
te connectivity / amp
Conn IDC Connector RCP 9 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RCPT 9POS .100 22-26 30AU
103688-8
te connectivity / amp
Conn Housing RCP 9 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPTACLE 9POS .1" UNLOAD Headers & Wire Housings HSG REC 1X09C STD .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingNot PreloadedNumber of Positions = 9Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 09 MTE RCPT HSG SR PLAIN .100

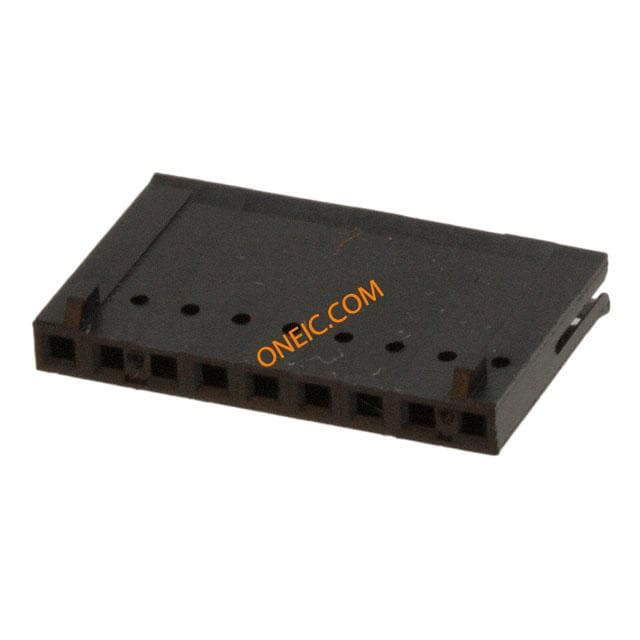

487769-7
