102202-3
| Manufacturer | |
| Description | Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 6POS 15AU TE Connectivity AMPMODU Series 2.54mm Pitch 6 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings SHROUDED VERT SNGL 6 with standoffs Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 6Mating Post Length = 6.10 mmSearch Keywords:board to board, AMPMODU, pcb connectors, MODUTHRUSRHDRSHRD,06MODIIHDRSRSTSHRD.100CL TE Connectivity AMPMODU Mod II 系列 2.54mm节距 6路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 06 MODII HDR SRST SHRD .100CL |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Rail / Tube | Factory Pack Quantity | 29 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | Standard Number | CSA LR7189, UL E28476 |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current Rating (Max) | 3A | Insulation Resistance | 5000 MOhms |
| Voltage - Protection Rating (VPR) | 750 Vrms | ||
Mechanical
| Color | Black | Depth | 5.82 mm |
| Pitch | 2.54 mm | Height | 13.94 mm |
| Base Type | 带有 | Lock Type | 不带 |
| Packaging | Tube | Body Color | 黑色 |
| Lead Style | 正方形 | Stabilizer | 不带 |
| Orientation | 直 | Row Spacing | 2.54 mm |
| Termination | Solder | Contact Type | Male Pin |
| 1st Connector | 否 | Housing Color | Black |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Gold Over Nickel | Mounting Style | Through Hole |
| Number of Rows | 1 | Shell Material | 4- 面 |
| Insert Material | 黄铜 | Contact Material | Copper Alloy |
| Housing Material | Thermoplastic | Length - Overall | 18.29 mm |
| Package Quantity | 29 | Panel Mount Type | 通孔 |
| Termination Rows | 焊接 | Termination Style | Through Hole |
| 1st Connector Type | 带罩 | 1st Contact Gender | Pin (Male) |
| Diameter - Outside | .64 mm [ .025 in ] | Number of Contacts | 6 |
| Termination Finish | 带有 | Number of Positions | 6 |
| Length - Post (Mating) | 6.1 mm | Mounting Hole Diameter | 带有 |
| Contact Length - Mating | 0.240" (6.10mm) | Termination Post Length | 3.3 mm |
| Contact Finish Thickness | 15µin (0.38µm) | Static Discharge Shielding | 不带 |
| Shell Size, Connector Layout | 1.778 mm [ .07 in ] | 1st Connector Mounting Feature | 否 |
| Contact Finish - Post (Mating) | 哑光 | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | AMPMODU | Coverage | 覆盖 |
| Key Type | 否 | Product Type | Headers |
| Number of Positions Loaded | All | ||
Environmental
| Seal Rating | 不带 | Ingress Protection | 带罩 |
| Operating Temperature | - 55 C to + 105 C | Thermal Resistance of Package | 1.397 mm [ .055 in ] |
| Operating Temperature - Junction | 否 | ||
Documents & Media
Similar Parts
103974-5
te connectivity / amp
Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECEPTACLE 6POS .100 TIN Headers & Wire Housings 4X6 RCPT SR PLAIN .100CL 4X6 MTE RCPT SR PLAIN .100CL 4X6 MTE RCPT SR PLAIN .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
103978-5
TE Connectivity / AMP
Headers & Wire Housings OBSOLETE .100 AMPMODU Headers, Housings & Contacts CONN RCPT 6POS .100 GOLD
104439-5
te connectivity / amp
Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RCPT 6POS .100 22-26 30AU Headers & Wire Housings 4X6 MTE RCPT SR PLAIN .100CL 4X6 MTE RCPT SR PLAIN .100CL
103976-5
te connectivity / amp
Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECEPTACLE 6POS .100 30AU Headers & Wire Housings 4X6 RCPT SR PLAIN .100CL .100 AMPMODU Headers, Housings & Contacts Product Highlights:ConnectorHousingConnector Style = ReceptacleContact Type = Receptacle2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 4X6 MTE RCPT SR PLAIN .100CL
102241-4
te connectivity / amp
Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 6POS .100 POLAR 2.54mm,housing,6W,Mod IV,SR,snap in Headers & Wire Housings POLARIZED HSG 6 SNGL detent latching Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 6Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP HOUSING, 1 ROW, 6WAY Housing,Connector;ModIV;Single;6;250VAC;3A;750VYes Crimp housing Pitch2.54 mm Poles 6 Single row / straight / with polarization / with detent latching AMPMODU MOD IV, 102241-4, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 1 行 2.54mm 节距 6 路 直 母 电缆安装 PCB 壳体 06 MODIV HSG COMP SR .100 POL
103977-5
te connectivity / amp
Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RCPT 6POS .100 TIN Headers & Wire Housings 4X6 MTE RCPT SR PLAIN .100CL 4X6 MTE RCPT SR PLAIN .100CL 4X6 MTE RCPT SR PLAIN .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
5-103974-5
te connectivity / amp
Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECEPTACLE 6POS .100 TIN Headers & Wire Housings 4X6 RCPT SR PLAIN .100CL Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 4X6 MTE RCPT SR PLAIN .100CL
103688-5
te connectivity / amp
Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPTACLE 6POS .1" UNLOAD Headers & Wire Housings HSG REC 1X06C STD Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 6Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 06 MTE RCPT HSG SR PLAIN .100
5-103975-5
te connectivity / amp
Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECEPTACLE 6POS .100 15AU Headers & Wire Housings 4X6 RCPT SR PLAIN .100CL 4X6 MTE RCPT SR PLAIN .100CL 4X6 MTE RCPT SR PLAIN .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
103975-5
te connectivity / amp
Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECEPTACLE 6POS .100 15AU Headers & Wire Housings 4X6 RCPT SR PLAIN .100CL .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingPreloadedNumber of Positions = 6Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 4X6 MTE RCPT SR PLAIN .100CL

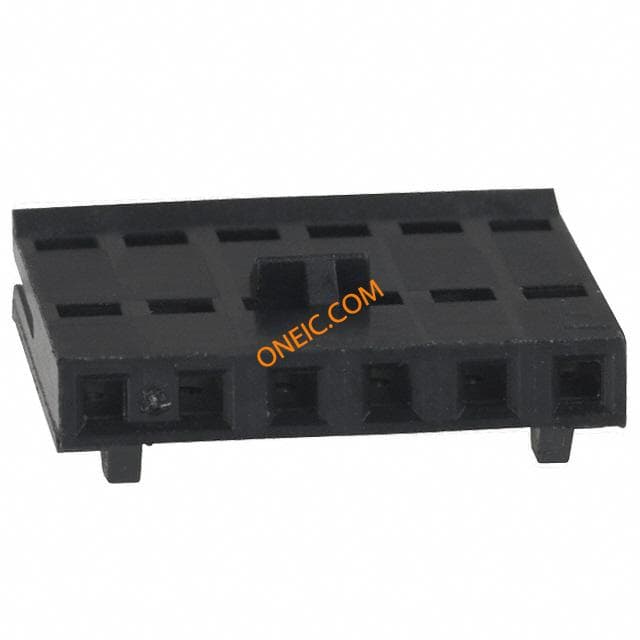

487769-4
te connectivity / amp
Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors CONN RECEPT 6 POS .100 SLIMLINE FFC & FPC Connectors 006 HOUSING FFC RCPT Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = SlimlineNumber of Positions = 6Number of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector 006 HOUSING FFC RCPT 100CL SR
5-103976-5
te connectivity / amp
Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECEPTACLE 6POS .100 30AU Headers & Wire Housings 4X6 RCPT SR PLAIN .100CL Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 6Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 4X6 MTE RCPT SR PLAIN .100CL

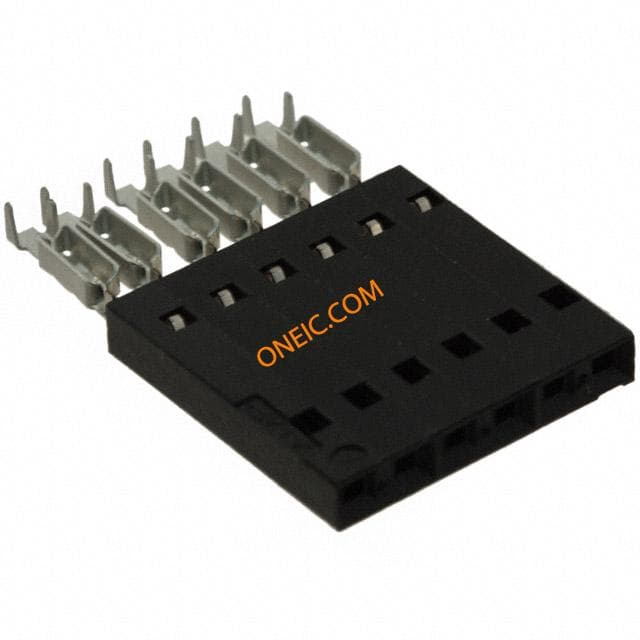

5-104439-5
