103977-5
| Manufacturer | |
| Description | Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RCPT 6POS .100 TIN Headers & Wire Housings 4X6 MTE RCPT SR PLAIN .100CL 4X6 MTE RCPT SR PLAIN .100CL 4X6 MTE RCPT SR PLAIN .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE |
| Category |
Business
| Tradename | AMPMODU | Standard Pack | 36 |
| Product Category | Headers & Wire Housings | Standard Package | 756 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | Standard Number | CSA LR7189, UL E28476 |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage - Supply | 267 V | Contact Resistance | 15 mΩ |
| Resistance - Input | 5000 | Connector Impedance | 刺破式压接 (IDC), 压接 |
| Current Rating (Max) | 3 A | Voltage - Protection Rating (VPR) | 600 VAC |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Height | 2.49 mm [ .098 in ] | Length | 60.71 mm [ 2.39 in ] |
| Lock Type | 不带 | Packaging | Tube |
| Wire Type | Ribbon Cable | Body Color | 黑色 |
| Wire Gauge | 26-30 AWG | Row Spacing | 2.54 mm |
| Termination | IDT | Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Contact Finish | Gold Over Nickel | Mounting Style | Wire |
| Number of Rows | 1 | Pressure (PSI) | 标准 |
| Insert Material | 磷青铜 | Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic | Package Quantity | 36 |
| Panel Mount Type | 不带 | Cable Termination | IDC |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 6 | Insulation Diameter | 1.37 mm [ .054 in ] |
| Number of Positions | 6 | Compatible Shell Size | 与接头配合 |
| Mounting Hole Diameter | 不带 | Contact Layout, Typical | 同轴 |
| Contact Finish Thickness | 100µin (2.54µm) | Static Discharge Shielding | 带有 |
| Contact Finish - Post (Mating) | 亮光 | ||
Product Info
| Note | 带状电缆带缺口把手 22-28 AWG, 气动终结器的最大绝缘直径为 1.14 [0.045]。 | Type | IDC Connector |
| Gender | RCP | Series | AMPMODU MTE |
| Features | Closed End | Product Type | Headers |
Environmental
| Temperature - Test | 标准部件 - 非辉光导线 | Operating Temperature | - 65 C to + 105 C |
Documents & Media
Similar Parts
104346-4
te connectivity / amp
Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER 6POS VERT PCB TIN Headers & Wire Housings 06 MODII HDR SRST B/A W/HD Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = StandardNumber of Rows = SingleNumber of Positions = 6Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 06 MODII HDR SRST B/A W/HD
102523-4
te connectivity / amp
Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER RTANG 6POS PCB TIN Headers & Wire Housings SHROUDED RA SINGLE 6 with standoffs .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 6Mating Post Length = 6.10 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 06 MODII HDR SRRA SHRD .100CL
146132-4
te connectivity / amp
Conn Unshrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER B/A 6POS SL PCB TIN Headers & Wire Housings 06 MODII HDR SR SFMNT B/A .100 06 MODII HDR SR SFMNT B/A .100 06 MODII HDR SR SFMNT B/A .100 Search Keywords:board to board, AMPMODU, pcb connectors,
5-102203-3
te connectivity / amp

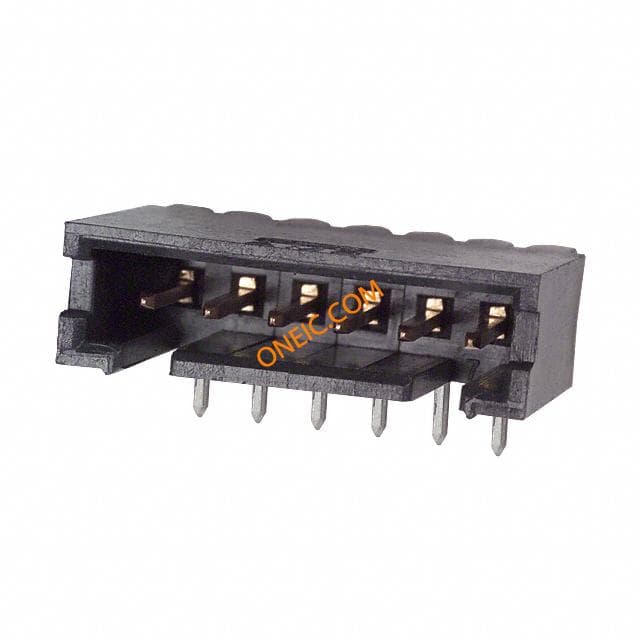

Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Gang of Tubes .100 inch AMPMODU Headers CONN HEADER R/A .100 6POS 15AU TE Connectivity AMPMODU Series 2.54mm Pitch 6 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings SHROUDED RA SINGLE 6 with standoffs Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Gang of Tubes Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 6Mating Post Length = 6.10 mmSearch Keywords:board to board, AMPMODU, pcb connectors, MODUR/ASRHDRSHRD,06MODIIHDRSRRASHRDLF TE Connectivity AMPMODU Mod II 系列 2.54mm节距 6路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔 06 MODII HDR SRRA SHRD LF
