100669-1
| Manufacturer | |
| Description | Conn Hard Metric PL 175 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN HEADER 175POS VERT GOLD 2MM Z-Pack,Header,Plug,Type B,vertical,175w Hard Metric Connectors Z-PACK M.CONN.175P Conn Hard Metric PL 175 POS 2mm Press Fit ST Thru-Hole Product Highlights:ConnectorConnector Type = Type B, 25 ColumnPlugInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, Z-PACKM.CONN.175P. TE Connectivity Z-PACK HM 系列 2mm 节距 175 路 直向 7 排 公 背板连接器, 按式端子, 1.5A |
| Category |
Business
| Other Names | 1006691 | Product Category | Hard Metric Connectors |
| Standard Package | Rail / Tube | Factory Pack Quantity | 10 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS/Not ELV Compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Crosstalk | Standard | Interface | 2mm HM |
| Voltage Rating | 500V | Current Rating (Max) | 1.5A |
Mechanical
| Pitch | 2 mm | Packaging | Tube |
| Orientation | 直 | Shield Type | Ground Return Shielding |
| Termination | Press Fit | Contact Type | Short Tail |
| Housing Color | Gray | Mounting Type | Through Hole |
| Connector Type | Type B, 25 Column | Contact Finish | Gold Over Nickel |
| Mounting Style | Through Hole | Number of Rows | 7 |
| Connector Style | B 25 | Connector Usage | Backplane |
| Contact Material | Phosphor Bronze | Front Connection | Level 1 |
| Housing Material | Polyester GF | Length - Overall | 50.00 [1.968] |
| Package Quantity | 10 | Termination Rows | 按式 |
| Termination Style | Press Fit | Mating Orientation | Without |
| Number of Contacts | 175 | Termination Finish | Tin-Lead over Nickel |
| Number of Positions | 175 | Length - Post (Mating) | 3.71 [0.146] |
| Contact Finish Thickness | 30µin (0.76µm) | Backshell Material, Plating | 硬公制 B 型 |
Product Info
| Type | Hard Metric | Gender | Plug |
| Series | Z-Pack | Manufacturer | AMP |
| Product Type | Connector | Module/Board Type | No |
| Number of Columns | 25 | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
Similar Parts

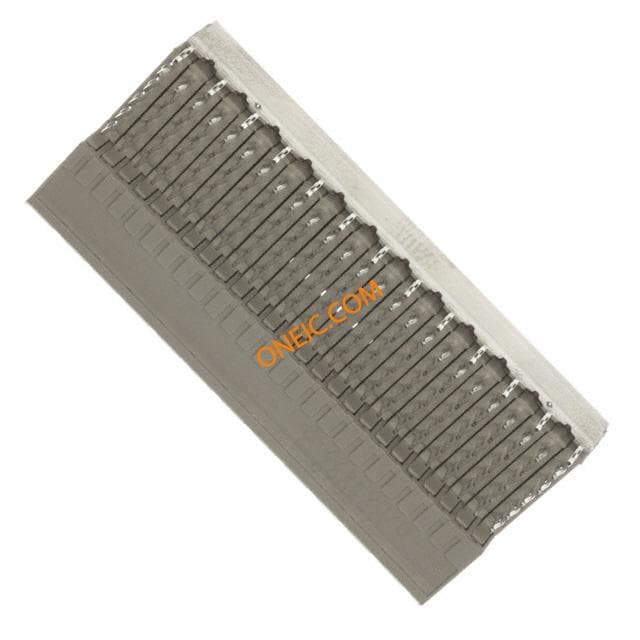

352069-1
