100624-1
| Manufacturer | |
| Description | Hard Metric Connectors TYPE B REC 125 SHLD 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN 2MM HM RCPT 125POS R/A GOLD 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) Product Highlights:ConnectorConnector Type = Type B, 25 ColumnReceptacleInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, |
| Category |
Business
| Standard Pack | 11 | Product Category | Hard Metric Connectors |
| Standard Package | 308 | Factory Pack Quantity | 11 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS/Not ELV Compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Crosstalk | Reduced | Interface | 2mm HM |
| Voltage Rating | 500V | Current Rating (Max) | 1.5A |
Mechanical
| Pitch | 0.079" (2.00mm) | Packaging | Tube |
| Shield Type | Ground Return Shielding | Termination | Press-Fit |
| Contact Type | Short Tail | Housing Color | Gray |
| Mounting Type | Right Angle | Shell Plating | Gold Flash over Nickel |
| Connector Type | Type B, 25 Column | Contact Finish | Gold (30) over Nickel (50) |
| Mounting Style | Through Hole | Number of Rows | 5 |
| Connector Style | B 25 | Connector Usage | Backplane |
| Shield Material | Phosphor bronze | Contact Material | Phosphor Bronze |
| Housing Material | Polyester GF | Length - Overall | 50.00 [1.968] |
| Package Quantity | 11 | Termination Style | Press Fit |
| Mating Orientation | Without | Number of Contacts | 125 |
| Termination Finish | Tin-Lead over Nickel | Number of Positions | 125 |
| Length - Post (Mating) | 3.71 [0.146] | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Type | B | Gender | Receptacle |
| Series | Z-Pack | Features | Upper Shield |
| Manufacturer | AMP | Product Type | Connector |
| Module/Board Type | No | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Similar Parts
100669-1
te connectivity / amp
Conn Hard Metric PL 175 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN HEADER 175POS VERT GOLD 2MM Z-Pack,Header,Plug,Type B,vertical,175w Hard Metric Connectors Z-PACK M.CONN.175P Conn Hard Metric PL 175 POS 2mm Press Fit ST Thru-Hole Product Highlights:ConnectorConnector Type = Type B, 25 ColumnPlugInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, Z-PACKM.CONN.175P. TE Connectivity Z-PACK HM 系列 2mm 节距 175 路 直向 7 排 公 背板连接器, 按式端子, 1.5A
338108-2
te connectivity / amp

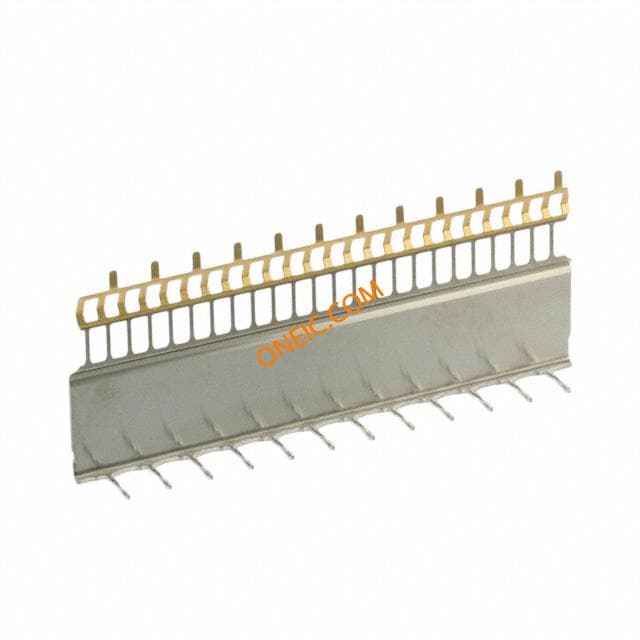

Connector Accessories Ground Return Receptacle Shield Hard Metric Connectors Z-PACK SHLD.LOWER A 2mm Hard Metric Contacts and Accessories (Z-PACK 2mm HM) CONN HARDWARE LOWERSHIELD 110POS Connector Accessories Ground Return Receptacle Shield Product Highlights:ShieldReceptacleNot CompactPCIShield Style = LowerShield Type = Ground Return ShieldingSearch Keywords:IEC 1076-4-101, high speed, open pin field, hybrid power, cabled power, cabled connector, mezzanine, CONNECTOR SHIELD Z-PACK SHLD.LOWER A
