1-87456-1
| Manufacturer | |
| Description | Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 16POS .100 DUAL ROW RECEPTACLE, AMPMODU, MOD IV, 16 POSITION Headers & Wire Housings 16 MODIV HSG COMP DR Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 16Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 16POS, 2.54MM RECEPTACLE,AMPMODU,MODIV,16POSITION,.100IN,DUALROW 16 MODIV HSG COMP DR .100CL |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
Electrical
| Voltage Rating | 250 VAC | Current Rating (Max) | 3/Contact A |
| Insulation Resistance | 5000 MOhms | Voltage - Supply (Min) | 250VAC |
| Connector - Voltage Input | Receptacle | ||
Mechanical
| Color | Black | Depth | 15.24 mm |
| Pitch | 2.54 mm | Height | 6.1 mm |
| Weight | 0 | Packaging | Bulk |
| Row Spacing | 0.100" (2.54mm) | Contact Type | Female Socket |
| Housing Color | Black | Mounting Type | Straight |
| Connector Type | Receptacle | Contact Finish | :- |
| Number of Rows | 2 | Contact Material | :- |
| Housing Material | Nylon | Length - Overall | 22.86 mm |
| Primary Material | InterconnectSystem | Number of Contacts | 16 |
| Contact Termination | Crimp | Number of Positions | 16 |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | AMPMODU/MOD IV |
| Manufacturer | AMPMODU/MODIVSeries | Product Type | Wire Housings |
| Application Specifics | Board-to-Board | ||
Environmental
| Operating Temperature | - 65 C to + 105 C | ||
Documents & Media
Similar Parts
103169-6
te connectivity / amp
Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 16POS 30AU Headers & Wire Housings ACTION PIN VERT 16P dual .150 end Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 16Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 16 MODII HDR DRST SHRD .100CL
146261-8
te connectivity / amp
Conn Unshrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKWAY 16POS DL .100 Headers & Wire Housings 16 MODII HDR DRST B/ 600 .100 inch AMPMODU Headers Product Highlights:ConnectorConnector Type = Header - PinHeader Type = Breakaway16 PositionsMating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 16 MODII HDR DRST B/A .100CL
86479-2
te connectivity / amp
Conn Unshrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER RT/A .100 16POS 30AU Headers & Wire Housings UNSHRD R.A. DUAL 16P Conn Unshrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole Search Keywords:board to board, AMPMODU, pcb connectors, 16 MODII HDR DRRA UNSHRD .100

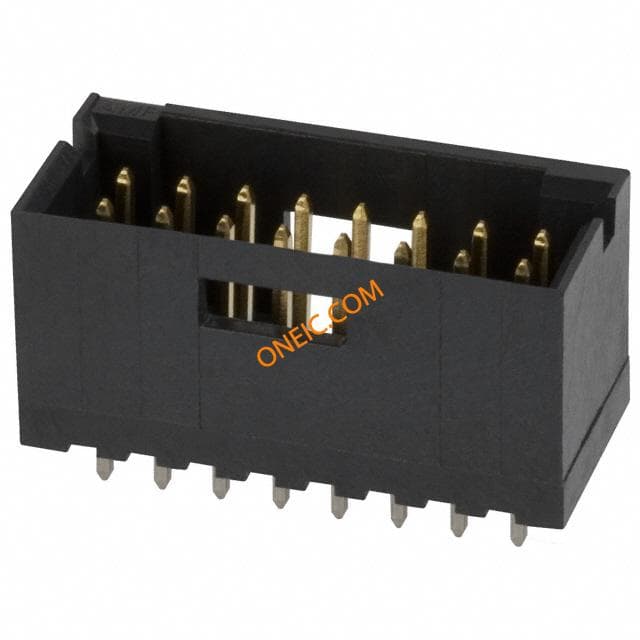

5-103168-6
