1-794954-6
| Manufacturer | |
| Description | Conn Housing RCP 16 POS 4.2mm Crimp ST VAL-U-LOK Series Connector System CONN RECEPT 16POS FREE HANGING 16 way receptacle 4.20mm Val-u-Lok Pin & Socket Connectors RECEPTACLE HSG 16P Conn Housing RCP 16 POS 4.2mm Crimp ST Product Highlights:HousingReceptacleNumber of Circuits = 16UL 94V-2Number of Rows = DualSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP RECEPTACLE HOUSING, 94V-2, 16WAY RECEPTACLE,HOUSING,VAL-U-LOK,16POS,DUALROW,UL94V-2 TE Connectivity VAL-U-LOK 系列 2 行 4.2mm 节距 16 路 直 母 压接连接器外壳 16P RCPT VAL-U-LOK V2 |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 500 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | Approval Agency | :CSA, UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-2 |
Electrical
| Voltage Rating | 600 V | Current Rating (Max) | 9 A |
| Voltage - Supply (Min) | 600VAC | ||
Mechanical
| Color | Natural | Depth | 20mm |
| Pitch | 4.2 mm | Length | 35.2mm |
| Weight | 0.032 | Material | Nylon |
| Packaging | Bulk | Row Spacing | 0.165" (4.20mm) |
| Contact Type | Female Socket | Housing Color | Natural |
| Mounting Type | Straight | Connector Type | Receptacle |
| Fastening Type | Latch Lock | Mounting Style | Free Hanging |
| Number of Rows | 2 | Material Finish | :- |
| Housing Material | Nylon | Length - Overall | 35.2 mm |
| Primary Material | InterconnectSystem | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Color - Connectors | :White |
| Number of Contacts | 16 | Contact Termination | Crimp |
| Number of Positions | 16 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | PE |
| CAD Drawing | 3D CAD Model | Manufacturer | VAL-U-LOK |
| Product Type | Housing | Number of Circuits | 16 |
| For Use With/Related Products | Wire-to-Board Connector, Wire-to-Panel Connector, Wire-to-Wire Connector | ||
Documents & Media
Similar Parts
1586315-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece VAL-U-LOK Series Connector System CONN TERM SOCKET 18-22AWG 30GOLD Pin & Socket Connectors SOCKET 22-18 BULK Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactSocket4.20 mm CenterlineWire Range = 0.20-0.80² [24-18] mm [AWG]Phosphor Bronze MaterialSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT,SOCKET,VAL-U-LOK,24-18AWG,GOLDPLATING VAL-U-LOK SKT PHBZ AU 24-18 LP
1-1586000-6
te connectivity / amp
Conn Housing PL 16 POS 4.2mm Crimp ST Cable Mount VAL-U-LOK Series Connector System CONN PLUG 16POS FREE HANGING Pin & Socket Connectors FREE HANGING PLUG 16 Conn Housing PL 16 POS 4.2mm Crimp ST Cable Mount Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP PLUG,FREEHANGING,VAL-U-LOK,16POS,DUALROW,UL94V-2 16P FH PLUG VAL-U-LOK V2
794958-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip VAL-U-LOK Series Connector System CONN SOCKET 26-22AWG BRASS TIN Crimp skt contact 26-22 awg tin Pin & Socket Connectors SOCKET 26-22 Reel of 5000 794958-1 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactSocketWire Range = 0.12-0.40² [26-22] mm [AWG]Brass MaterialSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT, CRIMP, SOCKET, 26-22AWG Contact,Socket,VAL-U-LOK,22-26AWG,Brass VAL-U-LOK Series 22-26 AWG Insulation Crimp Strain Relief Socket Contact TE Connectivity VAL-U-LOK 系列 母 压接接线端子, 压接, 镀锡镀镍触点 VAL-U-LOK SKT BR SN 22-26AWG
1-1586041-6
te connectivity / amp

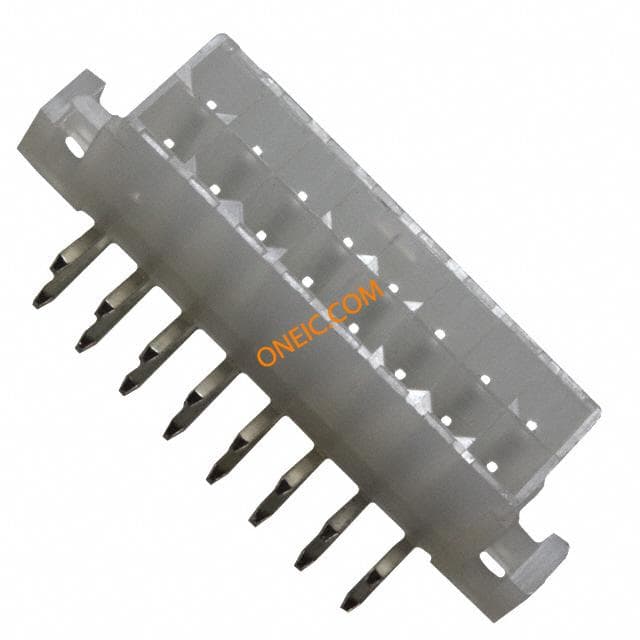

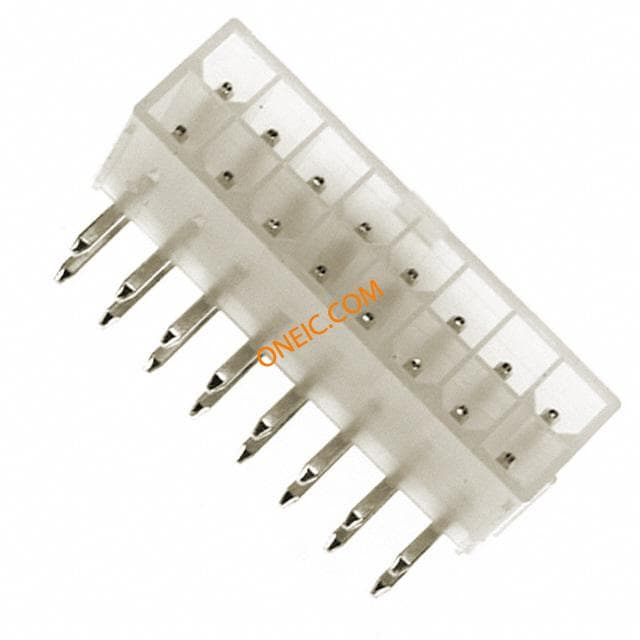

Conn Wire to Board HDR 16 POS 4.2mm Solder RA Thru-Hole VAL-U-LOK Series Connector System CONN HEADER 16POS R/A W/O PEGS Pin & Socket Connectors RA HDR W/O PEGS 16P Conn Wire to Board HDR 16 POS 4.2mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = HeaderHeader Type = Pin Header4.20 mm CenterlineNumber of Circuits = 16Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HEADER, RIGHT ANGLE, UL94V-2, 16WAY HEADER,RIGHTANGLE,VAL-U-LOK,16POS,DUALROW,UL94V-2,W/OPEGS 16P VAL-U-LOK R/A HDR V2
794956-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip VAL-U-LOK Series Connector System CONN SOCKT 18-22AWG PHOS BRZ TIN Contact female 0.2-0.8mm² Val-u-Lok 794956-3 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactSocketWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT,SOCKET,VAL-U-LOK,24-18AWG,TINPLATING VAL-U-LOK Series 18-24 AWG Insulation Crimp Strain Relief Socket Contact TE Connectivity VAL-U-LOK 系列 母 压接接线端子, 压接, 镀锡触点 VAL-U-LOK SKT PHBZ SN 22-18AWG
1-794953-6
te connectivity / amp
Conn Housing PL 16 POS 4.2mm ST VAL-U-LOK Series Connector System CONN PLUG 16POS PANEL MOUNT Pin & Socket Connectors PANEL MOUNT PLUG 16P Conn Housing PL 16 POS 4.2mm ST Product Highlights:HousingPlugNumber of Circuits = 16UL 94V-2Number of Rows = DualSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP PLUG HOUSING, PANEL MOUNT, 94V-2, 16WAY PLUG,PANELMOUNT,VAL-U-LOK,16POS,DUALROW,UL94V-2 16P PM PLUG VAL-U-LOK V2
794958-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip VAL-U-LOK Series Connector System CONN SOCKT 22-26AWG PHOS BRZ TIN Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactSocketWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT,SOCKET,VAL-U-LOK,26-22AWG,TINPLATING VAL-U-LOK Series 22-26 AWG Insulation Crimp Strain Relief Socket Contact VAL-U-LOK SKT PHBZ SN 22-26AWG
794956-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip VAL-U-LOK Series Connector System CONN SOCKET 18-22AWG BRASS TIN Crimp skt contact 22-18 awg tin Pin & Socket Connectors SOCKET 22-18AWG Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactSocketWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT, FEMALE, 22-18AWG CONTACT, CRIMP, SOCKET, 22-18AWG, REEL Contact,Socket,VAL-U-LOK,24-18AWG,Brass TE Connectivity VAL-U-LOK 系列 母 压接接线端子, 压接, 镀锡触点 VAL-U-LOK SKT BR SN 22-18AWG
1586315-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece VAL-U-LOK Series Connector System CONN TERM SOCKET 18-22AWG TIN 4.2 PE series 22-18 awg contact socket Pin & Socket Connectors SOCKET 22-18AWG BRASS-TIN Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactSocketWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT, SOCKET, 18AWG TO 22AWG, CRIMP 4.2SOCKET,BRASS-TIN22-18 Contact; female; 0.2÷0.8mm2; 18÷24AWG; VAL-U-LOK; tinned; crimped Crimp socket Female 22...18 AWG, 1586315-1, TE Connectivity TE Connectivity VAL-U-LOK 系列 母 压接接线端子, 压接, 镀锡触点 VAL-U-LOK SKT BR SN 24-18 LP
794956-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip VAL-U-LOK Series Connector System CONN SOCKET 18-22AWG BRASS GOLD Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactSocketWire Range = 0.20-0.80² [24-18] mm [AWG]Brass MaterialSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT, SOCKET, 22-18AWG, CRIMP CONTACT,SOCKET,VAL-U-LOK,24-18AWG,GOLDPLATING VAL-U-LOK SKT BR AU 22-18AWG
1586055-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount CONN SOCKET 16AWG BRASS TIN Pin & Socket Connectors VAL-U-LOK SKT BR SN Contact SKT Crimp ST Cable Mount Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT, SOCKET, 16AWG, CRIMP CONTACT,SOCKET,VAL-U-LOK,16AWG,TINPLATING 16 AWG Socket Crimp VAL-U-LOK Connector Contact VAL-U-LOK SKT BR SN 16AWG
1586317-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece VAL-U-LOK Series Connector System CONN TERM SOCKET 22-26AWG 30GOLD Pin & Socket Connectors SOCKET 26-22 BULK 1586317-2 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactSocketWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT,SOCKET,VAL-U-LOK,26-22AWG,GOLDPLATING 1586317 Series 22-26 AWG Gold Socket VAL-U-LOK Connector System VAL-U-LOK SKT BR AU 26-22 LP
1-1586043-6
te connectivity / amp
Conn Power HDR 16 POS 4.2mm Solder RA Thru-Hole 16 Terminal 1 Port VAL-U-LOK Series Connector System CONN HEADER 16POS R/A W/FLANGE Pin & Socket Connectors RA HDR SCREW MNT 16P Conn Power HDR 16 POS 4.2mm Solder RA Thru-Hole 16 Terminal 1 Port Product Highlights:ConnectorConnector Type = HeaderHeader Type = Pin Header4.20 mm CenterlineNumber of Circuits = 16Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HEADER,RIGHTANGLE,VAL-U-LOK,16POS,DUALROW,UL94V-2,SCREWMOUNT 16P VAL-U-LOK R/A HDR SCRMT V2
1586315-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece VAL-U-LOK Series Connector System CONN TERM SOCKET 18-22AWG 30GOLD Pin & Socket Connectors SOCKET 22-18 BULK Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactSocketWire Range = 0.20-0.80² [24-18] mm [AWG]Brass MaterialSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT, SOCKET, 24-18AWG, CRIMP CONTACT,SOCKET,VAL-U-LOK,24-18AWG,GOLDPLATING 18-24 AWG Socket Wire/Cable Insulation Crimp VAL-U-LOK Connector VAL-U-LOK SKT BR AU 24-18 LP
1586315-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece VAL-U-LOK Series Connector System CONN TERM SOCKET 18-22AWG TIN Pin & Socket Connectors SOCKET 22-18 BULK Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactSocketWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT, SOCKET, 24-18AWG, CRIMP CONTACT,SOCKET,VAL-U-LOK,22-18AWG 24-18 AWG Socket Crimp VAL-U-LOK Series Connector System VAL-U-LOK SKT PHBZ SN 24-18 LP
1-1586039-6
te connectivity / amp

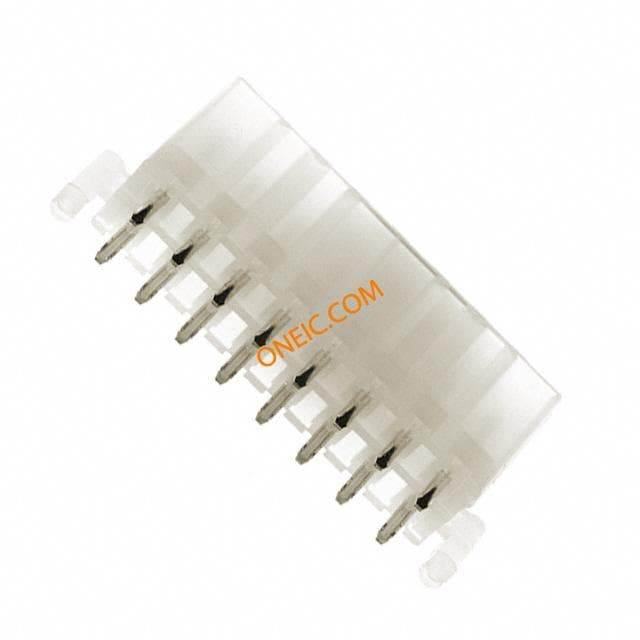

Conn Power HDR 16 POS 4.2mm Solder ST Thru-Hole 16 Terminal 1 Port VAL-U-LOK Series Connector System CONN HEADER 16POS VERT W/PEGS Pin & Socket Connectors VERT HDR W/PEGS 16P Conn Power HDR 16 POS 4.2mm Solder ST Thru-Hole 16 Terminal 1 Port Product Highlights:Pin HeaderNumber of Circuits = 16UL 94V-2Number of Rows = DualVertical Mount AngleSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HEADER,VERTICAL,VAL-U-LOK,16POS,DUALROW,UL94V-2,W/PEGS 16P VAL-U-LOK VRT HDR W/P V2
1586317-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece VAL-U-LOK Series Connector System CONN TERM SOCKET 22-26AWG TIN Pin & Socket Connectors SOCKET 26-22 BULK Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactSocketWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT,SOCKET,VAL-U-LOK,26-22AWG,TINPLATING VAL-U-LOK SKT PHBZ SN 26-22 LP
1586317-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece VAL-U-LOK Series Connector System CONN TERM SOCKET 22-26AWG TIN 4.2 PE series 26-22 awg contact socket Pin & Socket Connectors SOCKET 26-22 BULK Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactSocketWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT SOCKET, 26-22AWG 4.2SOCKET,BRASS-TIN26-22 Crimp socket Female 26...22 AWG, 1586317-1, TE Connectivity TE Connectivity VAL-U-LOK 系列 母 压接接线端子, 压接, 镀锡触点 VAL-U-LOK SKT BR SN 26-22 LP
1-1586037-6
te connectivity / amp

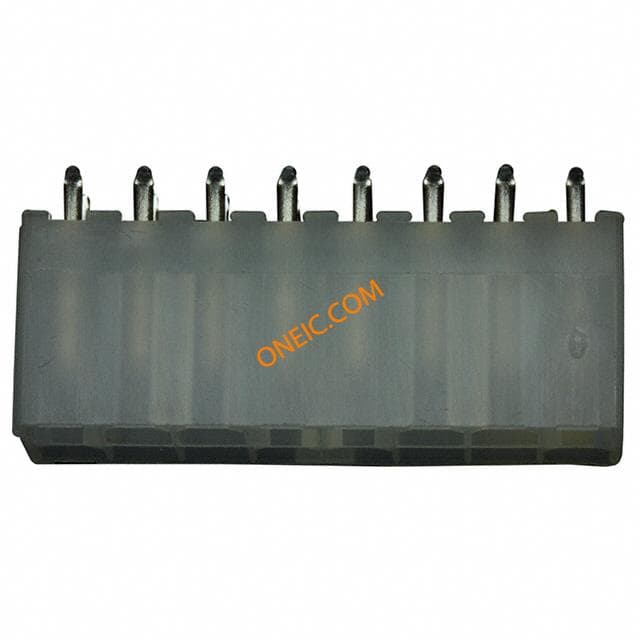

Conn Power HDR 16 POS 4.2mm Solder ST Thru-Hole 16 Terminal 1 Port VAL-U-LOK Series Connector System CONN HEADER 16POS VERT W/O PEGS TE Connectivity PE Series 4.2mm Pitch 16 Way Straight Heavy Duty Power Connector, Solder Termination, 9A Pin & Socket Connectors VERT HDR NO PEGS 16P Conn Power HDR 16 POS 4.2mm Solder ST Thru-Hole 16 Terminal 1 Port Product Highlights:ConnectorConnector Type = HeaderHeader Type = Pin Header4.20 mm CenterlineNumber of Circuits = 16Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HEADER, VERTICAL, W/DRAIN HOLES, 94V-2 HEADER,VERTICAL,VAL-U-LOK,16POS,DUALROW,UL94V-2,W/OPEGS TE Connectivity VAL-U-LOK 系列 4.2mm节距 16路 直 RJ45-Rangierfeld, 焊接端接, 9A , 通孔 16P VERT HDR VAL-U-LOK V2
