1-640454-8
| Manufacturer | |
| Description | Conn Wire to Board HDR 18 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 18POS VERT .100 TIN Headers & Wire Housings 18P HDR SQ STR POL 18P MTA100 HDR ASSY SQ STR POL |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | UL File Number | E28476 |
| CSA File Number | LR7189 | Standard Number | CSA, UL |
| CSA Certification | Certified | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 250 V | Voltage - Supply | 250 |
| Voltage - Rated AC | 250 | Connector Impedance | 焊接 |
| Current Rating (Max) | 5 | ||
Mechanical
| Color | Natural | Pitch | 2.54 mm |
| Height | 7.75 mm [ .305 in ] | Length | 45.72 mm [ 1.8 in ] |
| Packaging | Bulk | Shrouding | No |
| Body Color | 自然 | Termination | Solder |
| Contact Type | Male Pin | 2nd Connector | Without |
| Contact Shape | Square | Housing Color | White |
| Mounting Type | Vertical | Connector Type | Header, Unshrouded |
| Contact Finish | Tin | Contact Timing | Without |
| Mounting Style | 不带 | Number of Rows | 1 |
| Plating - Body | Tin | Shell Material | 极化 |
| Connector Usage | Header | Insert Material | 铜合金 |
| Contact Material | Copper Alloy | Housing Material | Polyester |
| Mounting Feature | Without | Package Quantity | 1 |
| Panel Mount Type | Without | Size / Dimension | 0.64 [.025] |
| Termination Style | Through Hole | 1st Contact Gender | Pin (Male) |
| Mating Orientation | With | Number of Contacts | 18 |
| Termination Finish | 不带 | Number of Positions | 18 |
| Backshell Interrupts | Without | Compatible Shell Size | MTA .100 连接器组件 |
| Contact Length - Post | 3.56 mm [ .14 in ] | Mounting Hole Diameter | 不带 |
| Contact Finish - Mating | 锡 | Contact Layout, Typical | 2.54 [0.100] |
| Contact Length - Mating | 0.295" (7.49mm) | Contact Material - Post | Copper Alloy |
| Surface Mount Land Size | Without | Termination Post Length | 3.56 [0.140] |
| Contact Finish Thickness | 3.81 µm [ 150 µin ] | Small Diameter Recovered | No |
| Static Discharge Shielding | 不带 | Jacket (Insulation) Thickness | 1.27 µm, 50 µin |
Product Info
| Type | Wire to Board | Gender | HDR |
| Series | MTA-100 | Features | Polarizing Key |
| Sealable | 否 | Manufacturer | AMP |
| Product Type | MTA-100 Connectors | Connection Type | Printed Circuit Board |
| Application Specifics | Wire-to-Board | Number of Positions Loaded | All |
| Number of Positions Omitted | None | ||
Environmental
| Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] | Thermal Resistance of Package | 1.6 mm [ .063 in ] |
Similar Parts
4-640441-8
te connectivity / amp
Conn IDC Connector F 18 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 18POS 24AWG MTA100 Connector FH IDC 18way Rec 24AWG MTA-100 Headers & Wire Housings 18P MTA100 ASSY WH Conn IDC Connector F 18 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 18Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP ConnectorFHIDC18wayRec24AWGMTA-100 TE Connectivity MTA-100 系列 18路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 18P MTA100 CONN ASSY WHT
1-643815-8
te connectivity / amp
Conn IDC Connector F 18 POS 2.54mm IDT RA Cable Mount Loose Piece CONN RCPT 18POS 26AWG CLOSD .100
1-1375820-8
te connectivity / amp
Conn Housing RCP 18 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT HOUSING 18POS CST-100 Headers & Wire Housings 18P RECEPT HSNG Conn Housing RCP 18 POS 2.54mm Crimp ST Product Highlights:CST-100 II HousingsNumber of Positions = 18Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CST-100 II HOUSING 18 POS
1-640443-8
te connectivity / amp
Conn IDC Connector F 18 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 18POS 28AWG MTA100 Headers & Wire Housings 18P MTA100 CONN ASSY GRN Conn IDC Connector F 18 POS 2.54mm IDT RA Cable Mount Loose Piece Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 18P MTA100 CONN ASSY GRN
1-643814-8
te connectivity / amp
Conn IDC Connector F 18 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 18POS 24AWG MTA-100 Headers & Wire Housings 18P MTA100 CONN ASSY POL RIB Conn IDC Connector F 18 POS 2.54mm IDT RA Cable Mount Loose Piece Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 18P MTA100 CONN ASSY POL RIB
1-641190-8
te connectivity / amp
Conn IDC Connector F 18 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 18POS .100 GOLD Headers & Wire Housings 18P MTA100 CONN ASSY RED 22AWG
1-640621-8
te connectivity / amp
Conn IDC Connector F 18 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 18POS .100 TIN Headers & Wire Housings 18P MTA100 CONN ASSY F/T NATL MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-100 ConnectorsNumber of Positions = 18Mating Type = ReceptacleConnector Type = Feed ThruWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 18P MTA100 CONN ASSY F/T NATL
1-644042-8
te connectivity / amp
Conn IDC Connector F 18 POS 2.54mm IDT RA Cable Mount Loose Piece CONN RCPT 18POS .100 POLAR GOLD

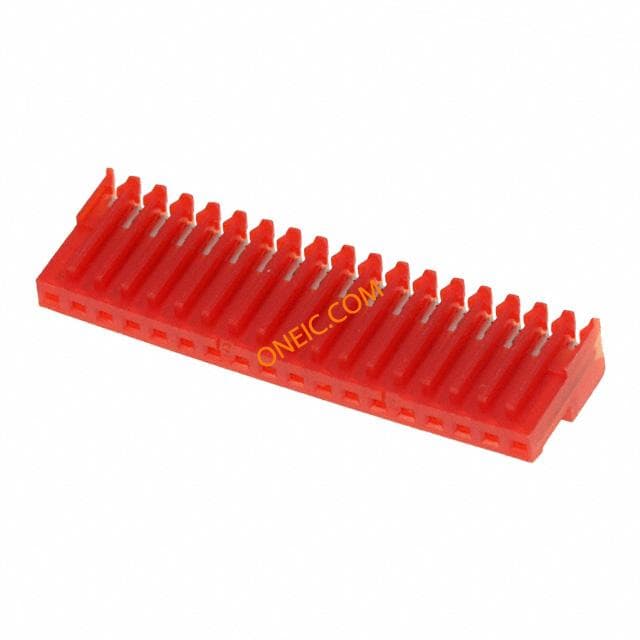

4-640440-8
