1-5102156-2
| Manufacturer | |
| Description | Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 64POS .100 GOLD Headers & Wire Housings 100X100 HDR 2X032P VERTICAL Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 642.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE TO BOARD CONNECTOR, HEADER, 64POS, 2ROW AMPLATCHHEADER-PIN,4SIDEDVERTICAL,64P A/L UNIV HDR 64P VERT |
| Category |
Business
| Tradename | AMP-LATCH | Product Category | Headers & Wire Housings |
| Standard Package | Trays | Factory Pack Quantity | 30 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 00000000 |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Range deg/s | :TE - AMP-LATCH Series | Current Rating (Max) | 1/Contact A |
| Voltage - Supply (Min) | 250VAC | ||
Mechanical
| Color | Black | Depth | 8.53 mm |
| Pitch | 2.54 mm | Height | 13.94 mm |
| Weight | 0 | Packaging | Bulk |
| Shrouding | Yes | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Contact Type | Male Pin |
| Polarization | Center, Dual Polarizing Bar, Military | 2nd Connector | Without |
| Contact Shape | Square | Housing Color | Black |
| Mounting Type | Vertical | Connector Type | Universal Ejection Pin Headers |
| Contact Finish | Gold Over Palladium Nickel|Gold Over Nickel | Mounting Style | Through Hole |
| Number of Rows | 2 | Package / Case | 4-Sided |
| Board Thickness | 3.18 [0.125] | Profile (W x H) | Standard |
| Contact Material | Brass/Phos Bronze | Housing Material | Thermoplastic |
| Length - Overall | 100.58 mm | Primary Material | InterconnectSystem |
| Size / Dimension | 0.64 [.025] | Termination Style | Through Hole |
| 1st Contact Gender | Pin (Male) | Mating Orientation | With |
| Number of Contacts | 64 | Contact Termination | :Through Hole Vertical |
| Number of Positions | 64 | Center Contact Material | 2.54 x 2.54 [.100 x .100] |
| Contact Length - Mating | 0.240" (6.10mm) | Termination Post Length | 3.94 [0.155] |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | Ejector Header | Gender | HDR |
| Series | AMP-LATCH | Manufacturer | AMP-LATCH |
| Product Type | Headers | Other Specifications | Without |
| Number of Positions Loaded | All | ||
Environmental
| Temperature Rating | Standard | Operating Temperature | -65C to 105C |
Documents & Media
Similar Parts
746383-1
te connectivity / amp
Connector Accessories Mounting Bolt Accessories (AMP-LATCH) CONN MOUNTING SCREW Headers & Wire Housings A/L MT SCR Connector Accessories Mounting Bolt Product Highlights:Mounting BoltSearch Keywords:ribbon cable connector system, hardware, Mounting Header Screw A/L MT SCREW

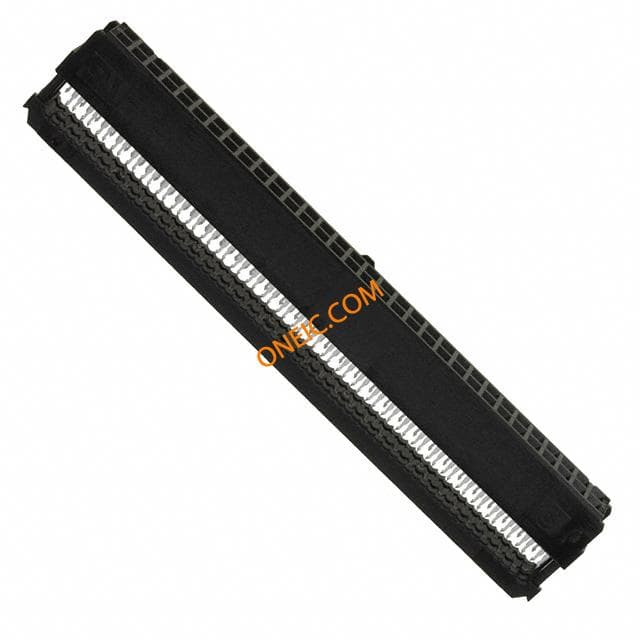

1-1658622-2
te connectivity / amp
Conn IDC Connector RCP 64 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 64POS W/POL GOLD AMP-LATCH Novo IDC Receptacle 64P Headers & Wire Housings .1CL IDC REC 2X32P C&M 30AU Conn IDC Connector RCP 64 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 64ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board CONNECTOR, RECEPTACLE, IDC, 2.54MM, 64P Connector,Receptacle;Novo;64;Gold(30);Tin-Lead;0.100in.x0.100in. 64 NOVO MIL/CTR 30DP,LEAD FREE

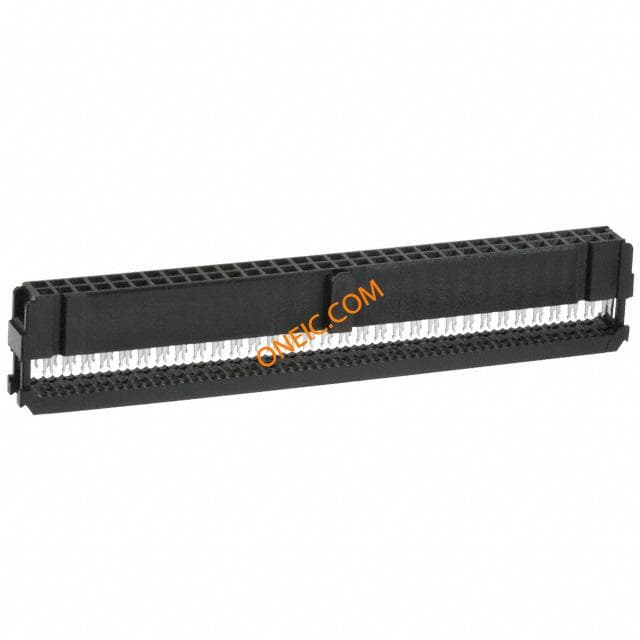

1-1658621-2
te connectivity / amp
Conn IDC Connector F 64 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 64POS W/POL 15 GOLD Headers & Wire Housings .1CL IDC REC 2X32P C&M 15AU Conn IDC Connector F 64 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 64ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 64POS, 2.54MM Connector,Receptacle;Novo;64;Gold(15);Tin-Lead;0.100in.x0.100in. 64 NOVO MIL/CTR 15DP,LEAD FREE

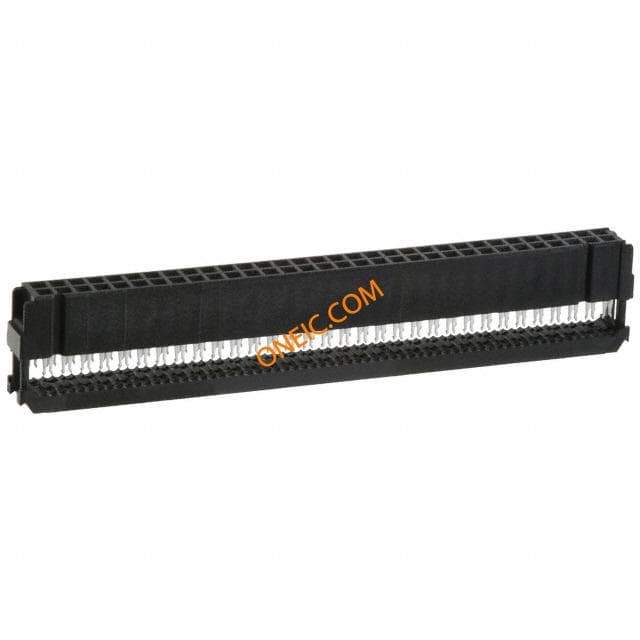

1-1658620-2
