1-1658622-2
| Manufacturer | |
| Description | Conn IDC Connector RCP 64 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 64POS W/POL GOLD AMP-LATCH Novo IDC Receptacle 64P Headers & Wire Housings .1CL IDC REC 2X32P C&M 30AU Conn IDC Connector RCP 64 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 64ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board CONNECTOR, RECEPTACLE, IDC, 2.54MM, 64P Connector,Receptacle;Novo;64;Gold(30);Tin-Lead;0.100in.x0.100in. 64 NOVO MIL/CTR 30DP,LEAD FREE |
| Category |
Business
| Tradename | AMP-LATCH | Product Category | Headers & Wire Housings |
| Standard Package | Rail / Tube | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Range deg/s | :TE - AMP-LATCH Novo Series | Contact Resistance | 15 mohm |
| Current Rating (Max) | 1A | Voltage - Supply (Min) | 250VAC |
Mechanical
| Color | Black | Depth | 7.49 mm |
| Pitch | 2.54 mm | Height | 15.97 mm |
| Length | 3.38in | Weight | 0.009 |
| Packaging | Bulk | Wire Type | Ribbon Cable |
| Cable Exit | Without | Wire Gauge | 26-28 AWG |
| Row Spacing | 0.100" (2.54mm) | Termination | IDT |
| Contact Type | Female Socket | Polarization | Center & Military |
| 2nd Connector | Without | Housing Color | Black |
| Mounting Type | No | Cable End Type | Without |
| Connector Type | NOVO | Contact Finish | Gold Over Palladium Nickel Over Nickel|Gold Over Nickel |
| Mounting Style | Cable | Number of Rows | 2 |
| Contact Material | Phosphor Bronze | Housing Material | Thermoplastic |
| Length - Overall | 85.85 mm | Mounting Feature | Without |
| Cable Termination | IDC | Termination Style | IDC |
| 1st Contact Gender | Socket (Female) | Mating Orientation | With |
| Number of Contacts | 64 | Contact Termination | :IDC / IDT |
| Number of Positions | 64 | Center Contact Material | 2.54 x 2.54 [.100 x .100] |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | IDC Connector | Gender | RCP |
| Series | AMP-LATCH, NOVO | Features | Feed Through, Polarizing Key |
| Product Type | Receptacles / Sockets - Housings | Connection Type | Ribbon Cable |
| With Modem Control | Yes | ||
Environmental
| Operating Temperature | +105°C | ||
Documents & Media
Similar Parts
1-5102153-2
te connectivity / amp
Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 64POS .100 GOLD Headers & Wire Housings 64 POS HDR 15AU W/OUT LATCHES Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 642.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 64POS, 2.54MM Connector;UniversalEjectionPinHeader;64;0.100in.x0.100in.;Vertical TE Connectivity AMP-LATCH 系列 2.54mm节距 64路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 64P VERT
1-5102156-2
te connectivity / amp
Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 64POS .100 GOLD Headers & Wire Housings 100X100 HDR 2X032P VERTICAL Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 642.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE TO BOARD CONNECTOR, HEADER, 64POS, 2ROW AMPLATCHHEADER-PIN,4SIDEDVERTICAL,64P A/L UNIV HDR 64P VERT
1-5102162-2
te connectivity / amp
Conn Ejector Header HDR 64 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 64POS .100 GOLD Headers & Wire Housings A/L UNIV HDR 64P RA Conn Ejector Header HDR 64 POS 2.54mm Solder RA Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 64P RA
1-5102159-2
te connectivity / amp
Conn Ejector Header HDR 64 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 64POS .100 GOLD Conn Ejector Header HDR 64 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 642.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 64P RA
1-5102155-2
te connectivity / amp
Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 64POS .100 GOLD Headers & Wire Housings A/L UNIV HDR 64P VRT VERTICAL Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 64P VERT
1658694-5
te connectivity / amp
Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 64POS .100 GOLD Headers & Wire Housings 100X100 HDR 2X032P VRT PFIT AMP-LATCH UNV HDR,64 POSN,VERT AMP-LATCH UNV HDR,64 POSN,VERT Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header,
1-499582-2
te connectivity / amp
Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 64POS .100 GOLD Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 642.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header,
3-5499374-2
te connectivity / amp
Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 64POS .100 GOLD A/L UNIV HDR 64P VERT SHT LAT BLUE
3-5499345-2
te connectivity / amp
Conn Ejector Header HDR 64 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 64POS R/A GOLD Headers & Wire Housings UNIV HDR 64P R/A BLU SHORT LATCH A/L UNIV HDR 64P RA SHT LAT BLUE
3-5499141-2
te connectivity / amp
Conn Ejector Header HDR 64 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 64POS R/A POLAR GOLD A/L UNIV HDR 64P RA LG LAT BLUE
1-5102321-2
te connectivity / amp
Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 64POS .100 GOLD Headers & Wire Housings 100X100 HDR 2X032P VERT W/EJECT LATCH Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 642.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 64POS, 2.54MM HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,64POS,2.54X2.54,PCB,VERTICAL TE Connectivity AMP-LATCH 系列 2.54mm节距 64路 (2排) 直 PCB 针座, 焊接端接 , 通孔 A/L UNIV HDR 64P VERT LG LAT
1-5499923-2
te connectivity / amp
Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 64POS .100 GOLD Headers & Wire Housings 100X100 HDR 2X032P VRT EJE Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 642.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 64POS, 2.54MM TE Connectivity AMP-LATCH 系列 2.54mm节距 64路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 64P VERT LG LAT
1-5499206-2
te connectivity / amp
Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings 64 POS HDR 30AU W/LONG LATCHES Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 64POS .100 GOLD Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 64POS, 2.54MM TE Connectivity AMP-LATCH 系列 2.54mm节距 64路 (2排) 垂直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 64P VERT LG LAT
1-5499786-2
te connectivity / amp
Conn Ejector Header HDR 64 POS 2.54mm Solder RA Thru-Hole Headers & Wire Housings 64 POS HDR 15AU R/A W/LONG LATCHES Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 64POS .100 GOLD Conn Ejector Header HDR 64 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 642.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 64P RA LG LAT

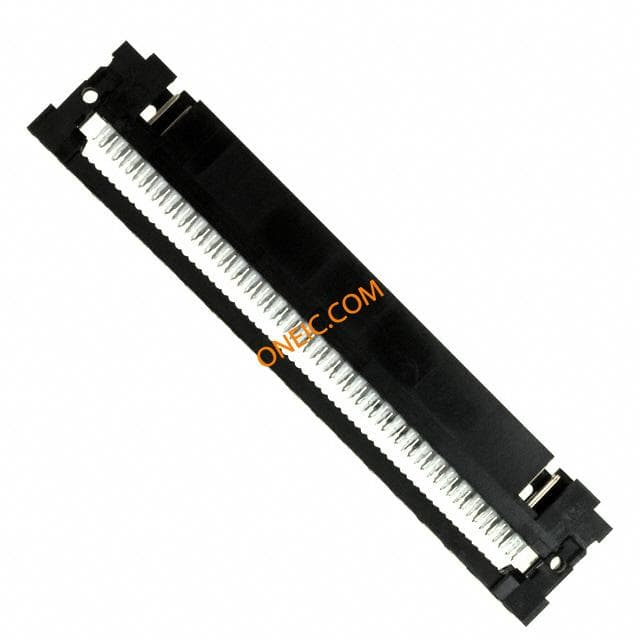

2-111446-6
