1-480683-0
| Manufacturer | |
| Description | Conn Housing PL 2 POS 5.08mm Crimp ST Cable Mount Box .200" Centerline, 250 V, 13 A max. 02P CMNL PLUG HSG F/H NATL Power to the Board 02P PLUG HSG F/H NAT 1-480683-0 Conn Housing PL 2 POS 5.08mm Crimp ST Cable Mount Box Product Highlights:HousingContact Diameter = 2.18 mmNumber of Circuits = 25.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP |
| Category |
Business
| Product Category | Power to the Board | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 已认证, 获得认可 |
| Part Status | E28476 | Leadfree Defin | Not relevant for lead free process |
| CSA File Number | LR16455 | Standard Number | CSA, UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | UL Flammability Rating | UL 94V-2 |
| Approval Agency Marking | 否 | ||
Electrical
| Voltage Rating | 250 V | Voltage - Supply | 250 |
| Frequency - Center | 带有 | Current Rating (Max) | 13 A |
| Connector - Voltage Input | Commercial MATE-N-LOK | ||
Mechanical
| Color | Natural | Pitch | 5.08 mm |
| Sealed | Not Sealed | Lock Type | Detent Lock |
| Packaging | Bulk | Contact Type | Female Socket |
| Pitch - Post | 5.08 [.200] | Mounting Type | Straight |
| Connector Type | Plug | Contact Finish | Without |
| Fastening Type | Detent Lock | Number of Rows | 1 |
| Package / Case | Plug | Height (Inches) | .86 |
| Width - Overall | .24 | Housing Material | Nylon |
| Length - Overall | .53 | Package Quantity | One Piece Housing |
| Panel Mount Type | 不带 | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 2 |
| Contact Termination | Crimp | Number of Positions | 2 |
| Compatible Shell Size | 插针（盖帽）护套 | Contact Layout, Typical | In-Line |
| Contact Finish Thickness | 2.18 [0.086] | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Series | Mate-N-Lok |
| Product Type | Housing | Number of Circuits | 2 |
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] |
Documents & Media
Similar Parts
1-480319-0
te connectivity / amp
Conn Housing RCP 2 POS 5.08mm ST Individual .200" Centerline, 250 V, 13 A max. CONN RECEPT/CAP 2 POS MATE-N-LOK Female Compact Power Connector Socket,13A 250V ac/dc Power to the Board PIN FREE 2 CIRCUITS Conn Housing RCP 2 POS 5.08mm ST Individual Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 25.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP PIN HOUSING, 2WAY Connector;CommercialMATE-N-LOK;Receptacle(Cap);2;Nylon;13A(Max.);AMP Plug; wire-board; male; w/o terminals; 5.08mm; PIN:2; UL94V-2; 250V Pin housing Pitch5.08 mm Poles 1 x 2 MATE-N-LOK Commercial, 1-480319-0, TE Connectivity TE Connectivity Commercial MATE-N-LOK 系列 1 行 5.08mm 节距 2 路 直 母 电缆安装 PCB 壳体 02P CMNL CAP HSG NATL
61117-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Pin & Socket Connectors SOK 20-14 BR .200" Centerline, 250 V, 13 A max. CONN SOCKET 14-20 AWG CRIMP 61117-2 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Commercial Mate-N-Lok Pre-Tin 20-14 AWG Discrete Wire Crimp Socket Contact CMNL SOK 20-14 BR
61314-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET 18-24AWG GOLD CRIMP Power to the Board SOCKET CONTACT 24-18 AWG 61314-5 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL SOK 24-18 AUBR
61173-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Power to the Board SOCKET CONTACT 30-22 .200" Centerline, 250 V, 13 A max. CONN SOCKET 22-30AWG TIN CRIMP Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmLoose PieceContact Type = SocketWire Range = 0.05-0.40² [30-22] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL SOK 30-22 PTPHBZ L/P
61314-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET 24-18AWG M-N-L TIN Contact Crimp socket 24-18AWG Mate-n-Lok Power to the Board SOCKET 22-18 AWG Reel of 7000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CONTACT, SOCKET, 24-18AWG, CRIMP CONTACT,SOCKET,MATE-N-LOK,2.13MM,24-18AWG,BRASS TE Connectivity Commercial MATE-N-LOK 系列 母 压接接线端子, 压接, 镀锡触点 CMNL SOK 24-18 TPBR
61314-7
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONTACT SOCKET 24-18AWG M-N-L Pin & Socket Connectors CMNL SOK S/F 24-18 . .200" Centerline, 250 V, 13 A max. Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL SOK 24-18 AUBR
61314-6
te connectivity / amp

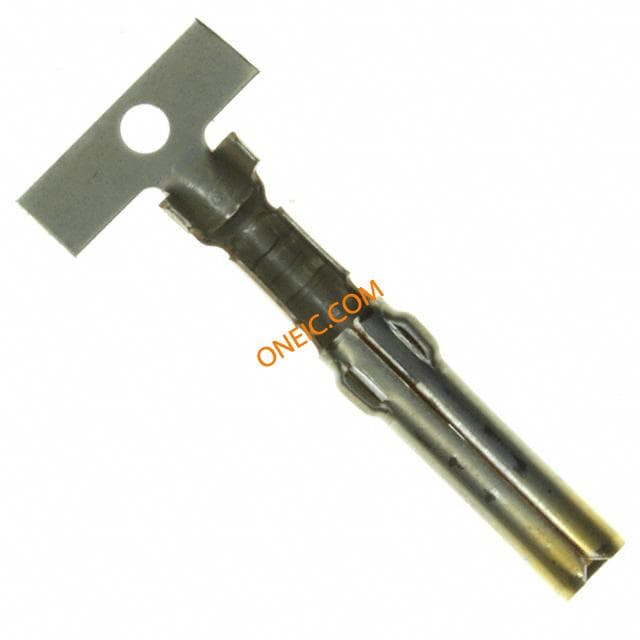

Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET 18-24AWG GOLD CRIMP Mate-n-lok socket contact,0.20-0.80mm² Pin & Socket Connectors CMNL SOK S/F 24-18 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Mate-n-loksocketcontact,0.20-0.80mm² TE Connectivity Commercial MATE-N-LOK 系列 母 压接接线端子, 压接, 镀金镀镍触点 CMNL SOK S/F 24-18 .0125AUPHBZ
61117-6
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET 14-20AWG GOLD CRIMP Power to the Board MNL SOK SF 20-14 .01 5000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL SOK 20-14 AUPHBZ
60619-5
te connectivity / amp

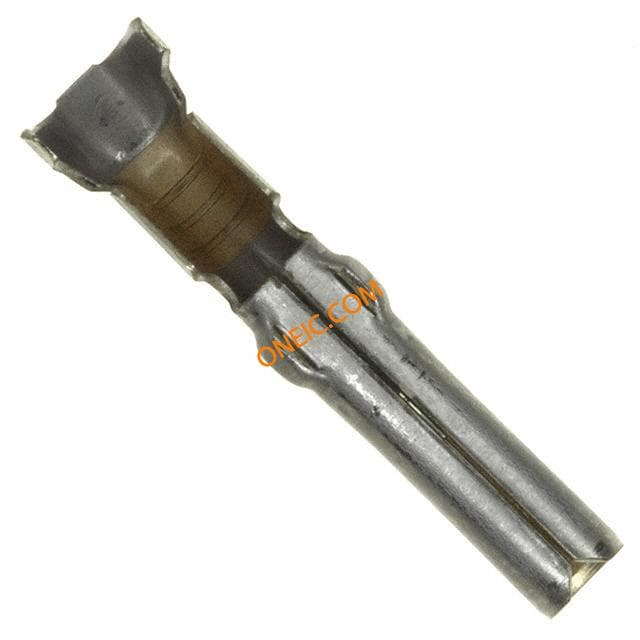

Contact SKT Crimp ST Cable Mount Loose Piece .200" Centerline, 250 V, 13 A max. CONN SOCKET 14-20AWG GOLD CRIMP Contact socket Commercial Mate-n-Lok Power to the Board SOCKET AUBR L/P Conn Contact SKT 1 POS Crimp ST Cable Mount Loose Piece Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Diameter = 2.13 mmLoose PieceContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CONTACT, SOCKET, 20-14AWG, CRIMP CMNLSOKAUBRL/P TE Connectivity Commercial MATE-N-LOK 系列 压接接线端子, 镀金镀镍触点 CMNL SOK AUBR L/P
60617-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .200" Centerline, 250 V, 13 A max. CONN SOCKET 18-24AWG GOLD CRIMP Mate-n-Lok,Contact,socket,0.20-0.80mm² Power to the Board SCKT 24-18 AWG Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Diameter = 2.13 mmLoose PieceContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CONTACT, SOCKET, 24-18AWG, CRIMP Connectors,contactsforMATE-N-LOK,socket,24-18AWG TE Connectivity Commercial MATE-N-LOK 系列 母 压接接线端子, 压接, 镀金镀镍触点 CMNL SOK AUBR L/P
61117-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET 20-14AWG TIN MNL Contact,crimp,socket,20-14awg Power to the Board SPLIT PIN 24-18 REEL Reel of 5000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CONTACT, CRIMP, RECEPTACLE, 20-14AWG CONTACT,SOCKET,MATE-N-LOK,2.13MM,20-14AWG,BRASS TE Connectivity Commercial MATE-N-LOK 系列 母 压接接线端子, 压接, 镀锡触点 CMNL SOK 20-14 TPBR
60619-1
te connectivity / amp

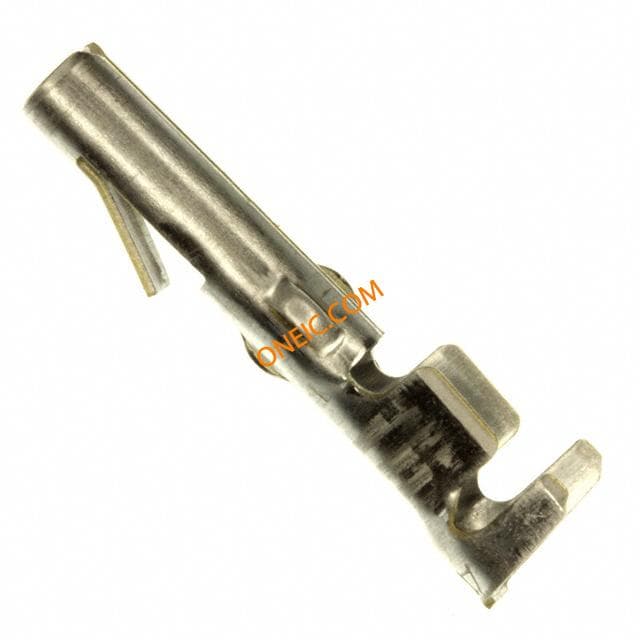

Contact SKT Crimp ST Cable Mount Loose Piece .200" Centerline, 250 V, 13 A max. CONN SOCKET 14-20AWG TIN CRIMP Mate-N-Lok Com contact socket 20-14awg Power to the Board SOCKET 20-14 AWG Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Diameter = 2.13 mmLoose PieceContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CRIMP SOCKET, 0.5-2.0MM Contact,Socket,MATE-N-LOK,20-14AWG,Brass Crimp socket 13 A Female 20...14 AWG, 60619-1, TE Connectivity TE Connectivity Commercial MATE-N-LOK 系列 母 压接接线端子, 压接, 镀锡触点 CMNL SOK PTPBR L/P
60617-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .200" Centerline, 250 V, 13 A max. CONN SOCKET 18-24AWG TIN CRIMP Mate-N-Lok Com contact socket 24-18awg Power to the Board SOCKET 24-18 BULK Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Diameter = 2.13 mmLoose PieceContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CONTACT, SOCKET, 24-18 AWG, CRIMP Contact,Socket,MATE-N-LOK,24-18AWG,Brass Crimp socket 13 A Female 24...18 AWG, 60617-1, TE Connectivity TE Connectivity Commercial MATE-N-LOK 系列 母 压接接线端子, 压接, 镀锡触点 CMNL SOK SNBR L/P
350638-4
te connectivity / amp

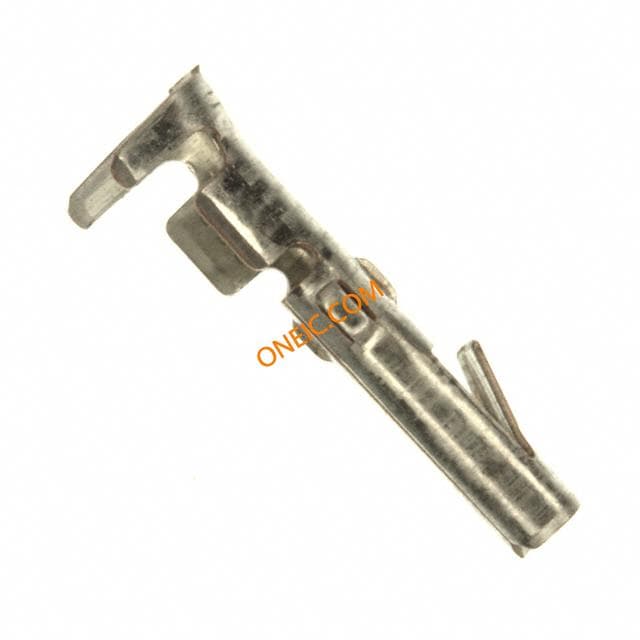

Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET 16-18AWG TIN CRIMP Contact female 18-16AWG Mate-n-Lok Power to the Board SOCKET CONTACT 350638-4 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmPackaging Method = Loose PieceContact Type = SocketWire Range = (1) 0.80-.090² + (1) 1.25-1.40² [(1) 18 + (1) 16] mm [AWG], (2) 0.80-0.90² [(2) 18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CONTACTFEMALE18-16AWG TE Connectivity Commercial MATE-N-LOK 系列 母 压接接线端子, 压接, 镀锡触点 MNL SOK L/P
61314-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET 24-18AWG M-N-L Power to the Board SOK 24-18 BR 28000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL SOK 24-18 BR
350078-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET 22-30AWG TIN CRIMP Mate-n-lok socket contact,0.05-0.40mm² Power to the Board SKT 30-22 BR/SN 26000 350078-1 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmPackaging Method = StripContact Type = SocketWire Range = 0.05-0.40² [30-22] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Mate-n-loksocketcontact,0.05-0.40mm² Mate-N-Lok 30-22 AWG Pre-Tin Socket Contact TE Connectivity Commercial MATE-N-LOK 系列 母 压接接线端子, 压接, 镀锡触点 CMNL SOK 30-22 PTPBR
350557-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .200" Centerline, 250 V, 13 A max. CONN SOCKET 16-18AWG TIN CRIMP Power to the Board L-PIN 24-18 AWG Reel of 3000 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = (1) 0.80-.090² + (1) 1.25-1.40² [(1) 18 + (1) 16] mm [AWG], (2) 0.80-0.90² [(2) 18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP MNL SOK SPECIAL .0126PTPBR
350078-4
te connectivity / amp

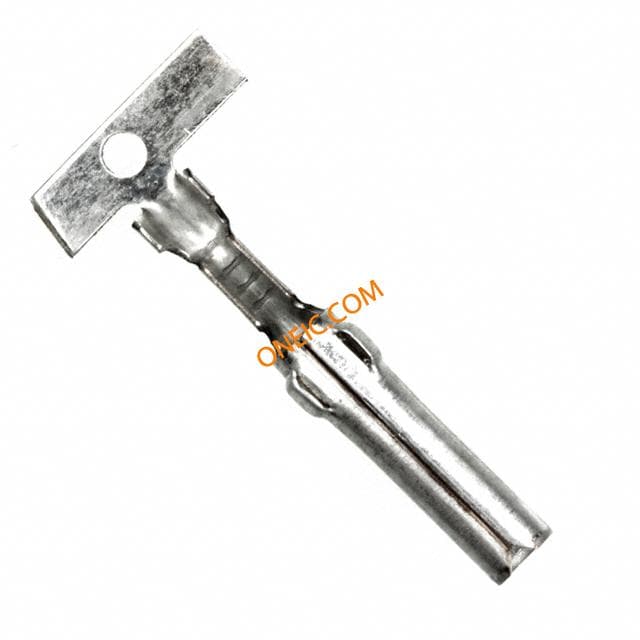

Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET 22-30AWG TIN CRIMP Pin & Socket Connectors MNL SOK 30-22 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.05-0.40² [30-22] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL SOK 30-22 PTPPHBZ
