1-480319-0
| Manufacturer | |
| Description | Conn Housing RCP 2 POS 5.08mm ST Individual .200" Centerline, 250 V, 13 A max. CONN RECEPT/CAP 2 POS MATE-N-LOK Female Compact Power Connector Socket,13A 250V ac/dc Power to the Board PIN FREE 2 CIRCUITS Conn Housing RCP 2 POS 5.08mm ST Individual Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 25.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP PIN HOUSING, 2WAY Connector;CommercialMATE-N-LOK;Receptacle(Cap);2;Nylon;13A(Max.);AMP Plug; wire-board; male; w/o terminals; 5.08mm; PIN:2; UL94V-2; 250V Pin housing Pitch5.08 mm Poles 1 x 2 MATE-N-LOK Commercial, 1-480319-0, TE Connectivity TE Connectivity Commercial MATE-N-LOK 系列 1 行 5.08mm 节距 2 路 直 母 电缆安装 PCB 壳体 02P CMNL CAP HSG NATL |
| Category |
Business
| Product Category | Power to the Board | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | Approval Agency | :CSA, UL |
| RoHSELV Compliance | Always was RoHS compliant | Material Flammability Rating | UL 94V-2 |
Electrical
| Voltage Rating | 250 V ac/dc | Voltage - Supply | 250 |
| Voltage - Working | :250V | Contact Resistance | :4mohm |
| Dielectric Strength | :1500V | Current Rating (Max) | 13A |
| Insulation Resistance | :500Mohm | Voltage - Supply (Min) | 250VDC/250VAC |
| Connector - Voltage Input | Commercial MATE-N-LOK | ||
Mechanical
| Color | Natural | Depth | 23.88 mm |
| Pitch | 5.08 mm | Height | 8.38 mm |
| Weight | 0.001001 | Material | :Nylon |
| Lock Type | Detent Lock | Packaging | Bulk |
| Wire Gauge | 14-30 AWG | Contact Type | Male Pin |
| Pitch - Post | 5.08 [.200] | Body Material | polyamide |
| Housing Color | Natural | Mounting Type | Straight |
| Connector Type | Receptacle | Fastening Type | Friction Lock |
| Mounting Style | Free Hanging | Number of Rows | 1 |
| Package / Case | Receptacle (Cap) | Housing Material | Nylon |
| Length - Overall | 15.49 mm | Package Quantity | One Piece Housing |
| Connector - Cable | plug | Termination Style | Wire |
| 1st Contact Gender | Pin (Male) | Color - Connectors | :Clear |
| Number of Contacts | 2 | Contact Termination | Crimp |
| Number of Positions | 2 | Contact Layout, Typical | In-Line |
| Contact Finish Thickness | 2.13 [0.084] | Wire Gauge or Range - AWG | 30-14 |
| 1st Connector Mounting Feature | 1x2 | ||
Product Info
| Spg | 746 | Note | Housing accepts double wire applications where individual insulation diameters |
| Type | Housing | Gender | RCP |
| Series | :Mate-N-Lok | CAD Drawing | 3D CAD Model |
| Product Type | Housing | Adapter Series | Commercial MATE-N-LOK |
| Number of Units | 1 | Number of Circuits | 2 |
| For Use With/Related Products | :Commercial MATE-N-LOK Connectors | ||
Environmental
| Mating Cycles | :50 | Operating Temperature | +105°C |
Documents & Media
Similar Parts
350639-1
te connectivity / amp

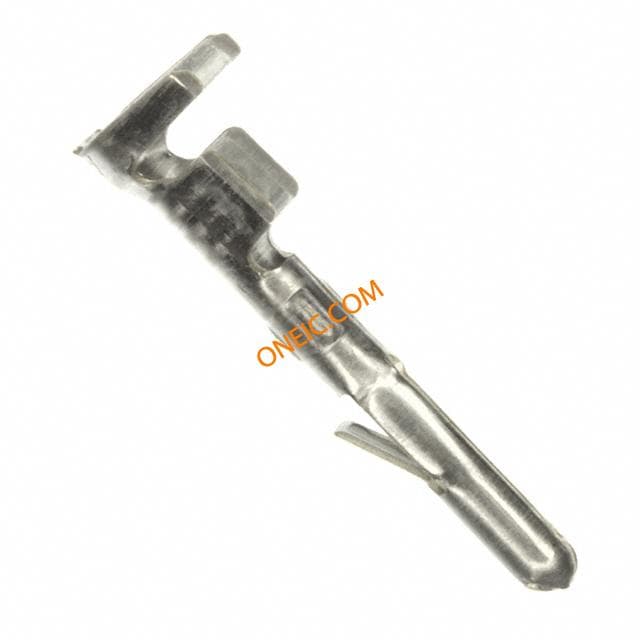

Contact PIN Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN PIN 16-18AWG TIN CRIMP Mate-n-lok pin contact,0.80-.090mm² Power to the Board CONTACT 350639-1 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmLoose PieceContact Type = PinWire Range = (1) 0.80-.090² + (1) 1.25-1.40² [(1) 18 + (1) 16] mm [AWG], (2) 0.80-0.90² [(2) 18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP PINCONTACT,0.80-.090MMª MATE-N-LOK 18 AWG Discrete Wire to Cable Crimp Pin Contact TE Connectivity Commercial MATE-N-LOK 系列 公 压接接线端子, 压接, 镀锡触点 MNL PIN PTPBR
1-480318-0
te connectivity / amp
Conn Housing PL 2 POS 5.08mm Crimp ST Individual .200" Centerline, 250 V, 13 A max. CONN PLUG 2 POS MATE-N-LOK Male Compact Power Connector Plug 250V ac Power to the Board SOCKET FREE 2 CRKTS Conn Housing PL 2 POS 5.08mm Crimp ST Individual Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 25.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP SOCKET HOUSING, 2WAY Connector;CommercialMATE-N-LOK;Plug;2;Nylon;13A(Max.);250VAC;0.2in. Socket housing Pitch5.08 mm Poles 1 x 2 MATE-N-LOK Commercial, 1-480318-0, TE Connectivity TE Connectivity 插座外壳 插头 公 250 V 交流 02P CMNL PLUG HSG F/H NATL
350079-1
te connectivity / amp

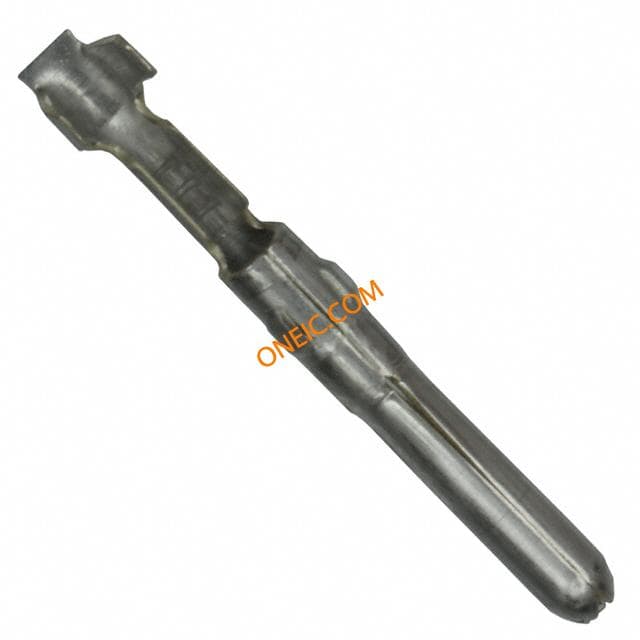

Contact PIN Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN PIN 22-30AWG TIN CRIMP Power to the Board PIN CONTACT 30-22 AWG Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = PinWire Range = 0.05-0.40² [30-22] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Commercial Mate-N-Lok Pre-Tin 30-22 AWG Pin Contact MNL PIN 30-22 PTPBR
61116-7
te connectivity / amp

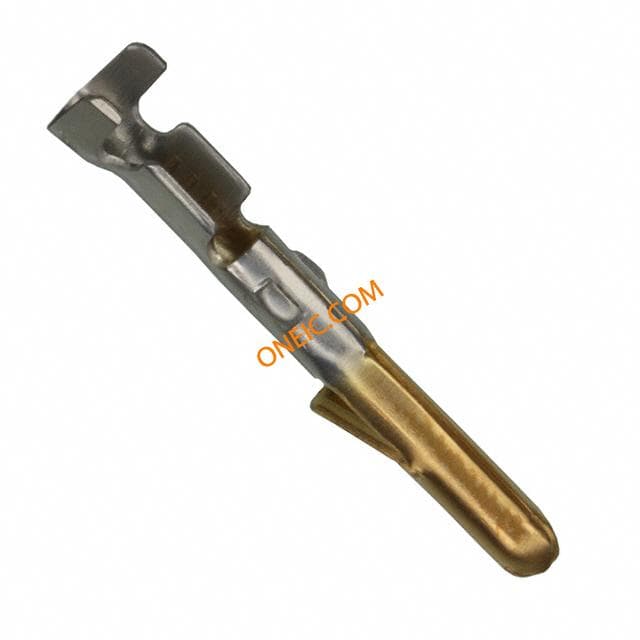

Contact PIN Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN PIN 18-24AWG GOLD CRIMP Pin & Socket Connectors MNL PIN S/F 24-18 Contact PIN Crimp ST Cable Mount Strip Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL PIN 24-18 AUNIBR
61174-5
te connectivity / amp

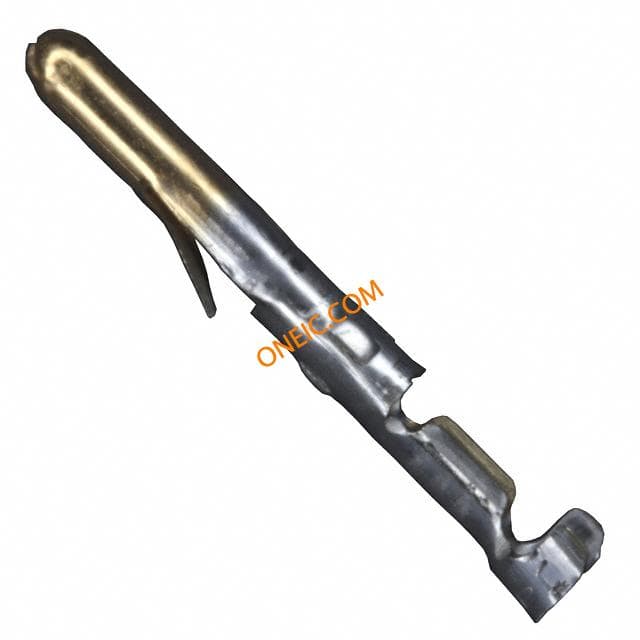

Contact PIN Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN PIN 22-30AWG GOLD CRIMP Power to the Board 30-22 CONTACT PIN Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmLoose PieceContact Type = PinWire Range = 0.05-0.40² [30-22] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP MNLPINL/P CMNL PIN L/P AUNIBR
61116-4
te connectivity / amp

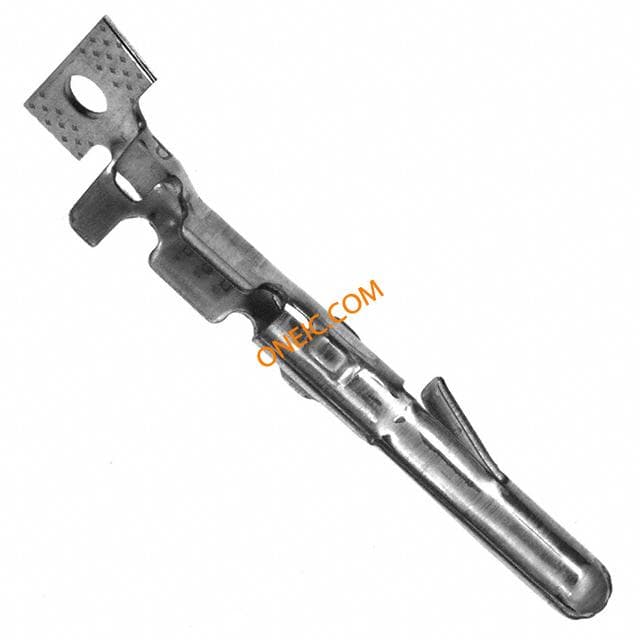

Contact PIN Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN PIN 18-24AWG TIN CRIMP Mate-n-lok pin contact,0.20-0.80mm² Power to the Board 24-18 CRIMP PIN REEL 32000 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = PinWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CONTACT, PIN, 24-18AWG, CRIMP MATE-N-LOKSTRIP,CMNLPIN24-18PTPHBZ TE Connectivity Commercial MATE-N-LOK 系列 公 压接接线端子, 压接, 镀锡触点 CMNL PIN 24-18 PTPHBZ
350079-4
te connectivity / amp

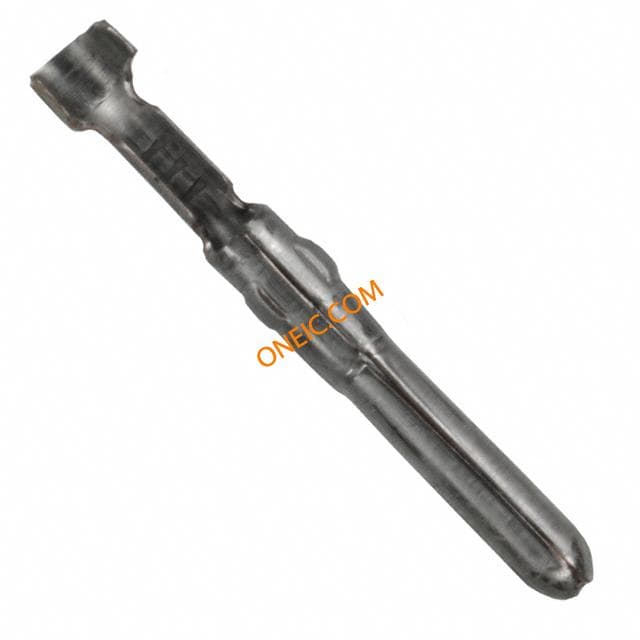

Contact PIN Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN PIN 22-30AWG TIN CRIMP Pin & Socket Connectors MNL PIN 30-22 .0125 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactContact Gender = PinWire Barrel Contact Termination TypeTerminate To WireCrimp Termination MethodSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL PIN 30-22 PTPHBZ
61118-6
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONTACT PIN 20-14AWG MATE-N-LOK Power to the Board MNL PIN 20-14 .0126A 5000 .200" Centerline, 250 V, 13 A max. Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL PIN 20-14 AUNIPHBZ
61118-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Power to the Board CMNL PIN 20-14 BR PIN 20-14 AWG BR .200" Centerline, 250 V, 13 A max. CONN PIN 14-20AWG CRIMP TERM 61118-2 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL PIN 20-14 BR
1-480683-0
te connectivity / amp
Conn Housing PL 2 POS 5.08mm Crimp ST Cable Mount Box .200" Centerline, 250 V, 13 A max. 02P CMNL PLUG HSG F/H NATL Power to the Board 02P PLUG HSG F/H NAT 1-480683-0 Conn Housing PL 2 POS 5.08mm Crimp ST Cable Mount Box Product Highlights:HousingContact Diameter = 2.18 mmNumber of Circuits = 25.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP
350079-5
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Pin & Socket Connectors MNL PIN 30-22 .0126 .200" Centerline, 250 V, 13 A max. CONN PIN 22-30AWG GOLD CRIMP 350079-5 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmPackaging Method = StripContact Type = PinWire Range = 0.05-0.40² [30-22] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL PIN 30-22 AUBR
60620-5
te connectivity / amp

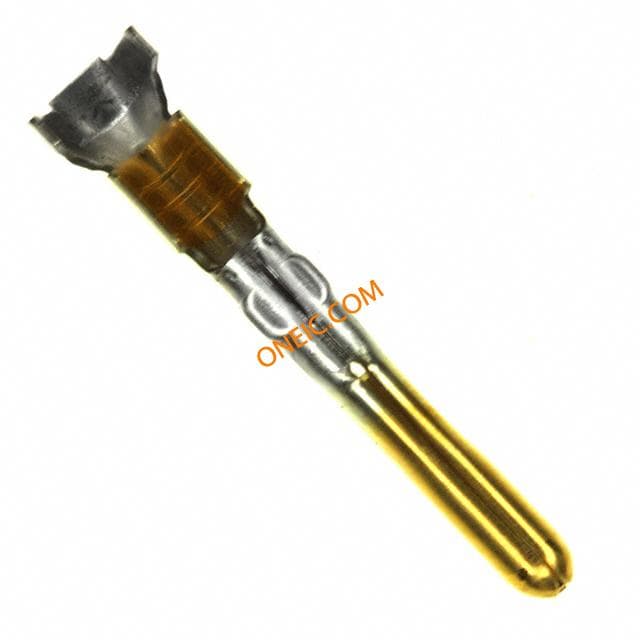

Contact PIN Crimp ST Cable Mount Loose Piece .200" Centerline, 250 V, 13 A max. CONN PIN 14-20AWG GOLD CRIMP Mate-n-lok pin contact,0.50-2.00mm² Power to the Board PIN AUBR L/P Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Diameter = 2.13 mmLoose PieceContact Type = PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CONTACT, PIN, 20-14AWG, CRIMP CMNLPIN.0126AUBRL/P TE Connectivity Commercial MATE-N-LOK 系列 公 压接接线端子, 压接, 镀金镀镍触点 CMNL PIN 20-14 AUBR L/P
61118-5
te connectivity / amp

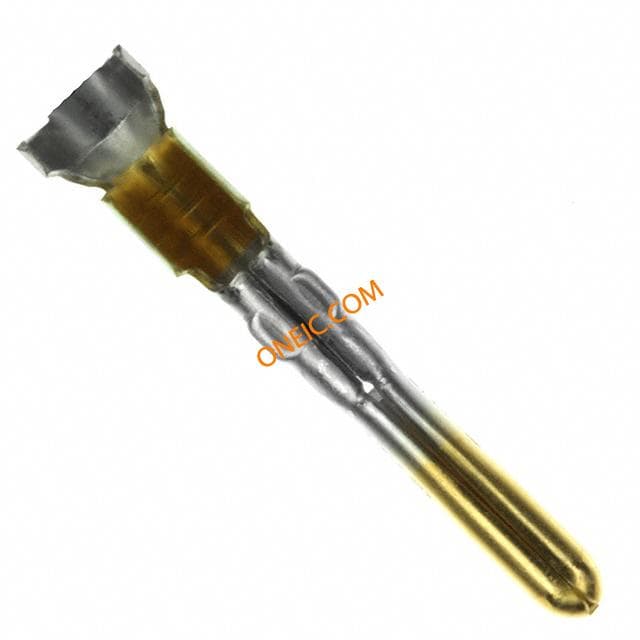

Contact PIN Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN PIN 14-20AWG GOLD CRIMP Power to the Board MNL PIN S/F 20-14 .0 5000 61118-5 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactContact Gender = PinCrimp Contact Termination TypeApplies To WireCrimp Termination MethodSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL PIN 20-14 AUNIBR
1-480318-9
te connectivity / amp
Conn Housing PL 2 POS 5.08mm Crimp ST Cable Mount Loose Piece .200" Centerline, 250 V, 13 A max. 02P CMNL PLUG HSG F/H BLK Power to the Board 2 CKT PLUG HOUSING Conn Housing PL 2 POS 5.08mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 25.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP HOUSING, PLUG, MATE-N-LOK, 2WAY
350558-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Power to the Board MNL PIN 20-14 .0126 .200" Centerline, 250 V, 13 A max. CONN PIN 16-18AWG TIN CRIMP Contact PIN Crimp ST Cable Mount Loose Piece Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP
60620-4
te connectivity / amp

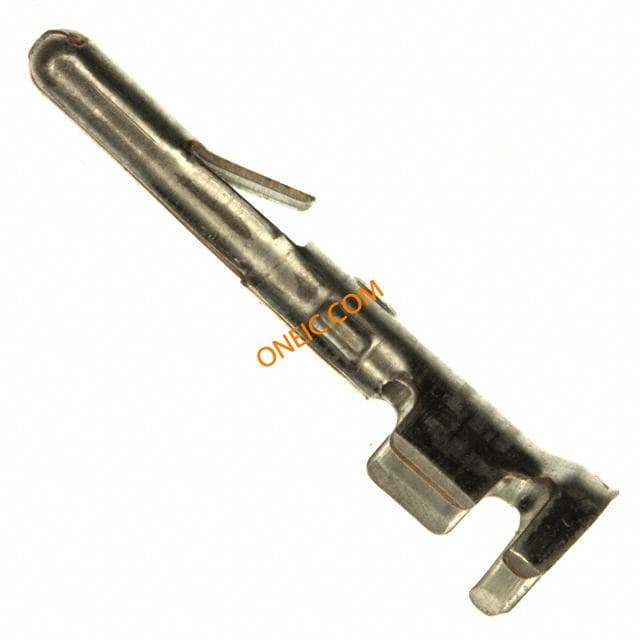

Contact PIN Crimp ST Cable Mount Loose Piece .200" Centerline, 250 V, 13 A max. CONN PIN 14-20AWG TIN CRIMP Mate-n-lok pin contact,0.50-2.00mm² Power to the Board 20-14 AWG CRIMP PIN 10000 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Diameter = 2.13 mmLoose PieceContact Type = PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CONTACT, PIN, 20-14AWG, CRIMP CMNLPIN.0126PTPPHBZL/P TE Connectivity Commercial MATE-N-LOK 系列 公 压接接线端子, 压接, 镀锡触点 CMNL PIN 20-14 TPPHBZ L/P
61116-6
te connectivity / amp

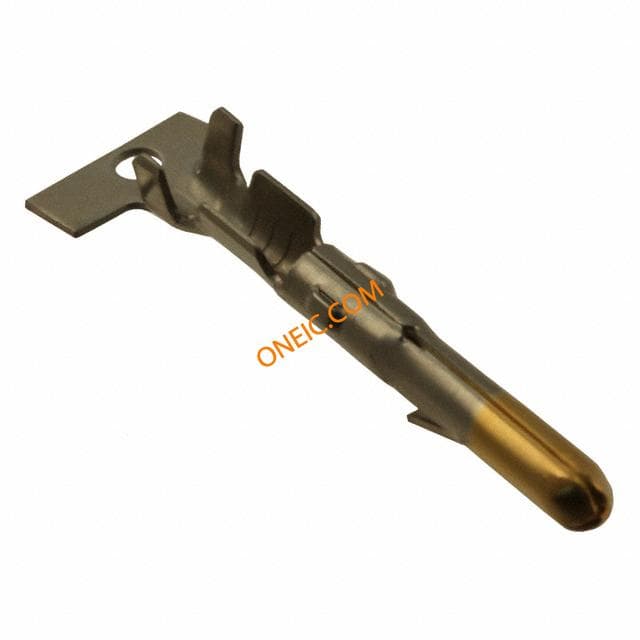

Contact PIN Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN PIN 18-24AWG 30GOLD M-N-LOK Pin & Socket Connectors PIN 24-18 AUNIPHBZ Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = PinWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL PIN 24-18 AUNIPHBZ
60618-1
te connectivity / amp

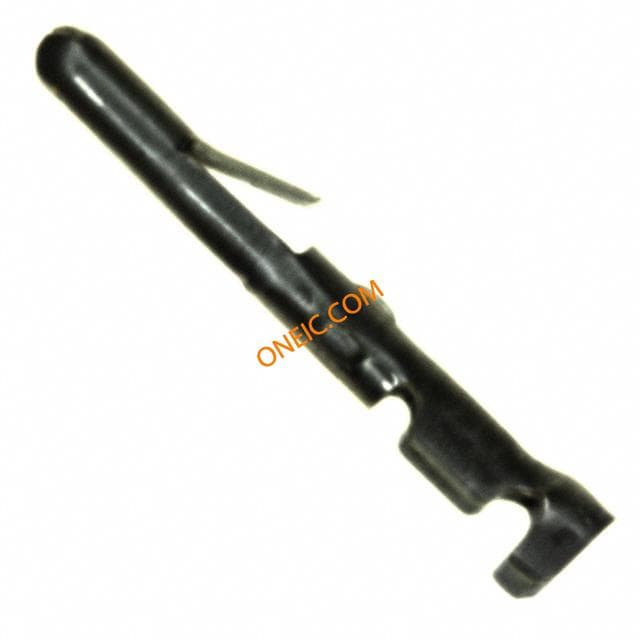

Contact PIN Crimp ST Cable Mount Loose Piece .200" Centerline, 250 V, 13 A max. CONN PIN 18-24AWG TIN CRIMP Mate-N-Lok Com contact pin 24-18awg Power to the Board PIN 24-18 AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Diameter = 2.13 mmLoose PieceContact Type = PinWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CONTACT, PIN, 24-18 AWG, CRIMP CMNLPINPTPBRL/P Crimp pin 13 A Male 24...18 AWG, 60618-1, TE Connectivity TE Connectivity Commercial MATE-N-LOK 系列 公 压接接线端子, 压接, 镀锡触点 CMNL PIN PTPBR L/P
61116-5
te connectivity / amp

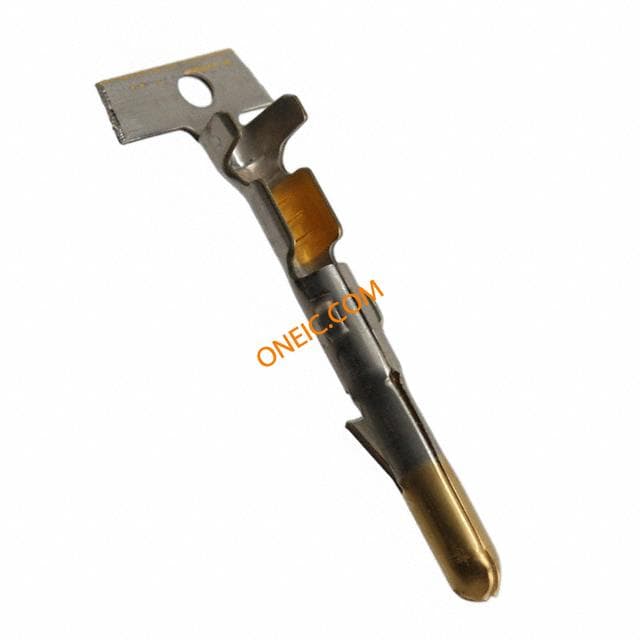

Contact PIN Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN PIN 18-24 AWG 30GOLD CRIMP Power to the Board MNL PIN S/F 24-18 AU 8000 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmPackaging Method = StripContact Type = PinWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Contact,Pin,24-18AWG,2.13mm CMNL PIN 24-18 AUNIBR
60618-4
te connectivity / amp

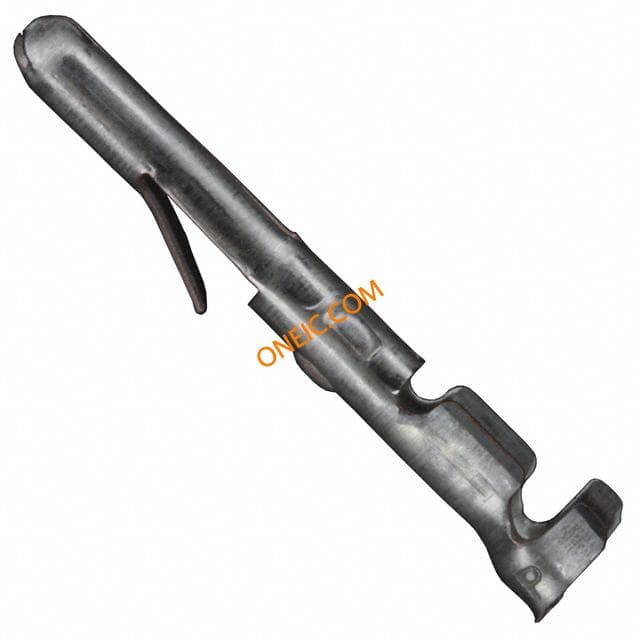

CMNL PIN PTPPHBZL/P .200" Centerline, 250 V, 13 A max. CONN PIN 18-24AWG TIN CRIMP Contact Crimp Pin 24-18AWG Mate-n-Lok Power to the Board CRIMP PIN Contact PIN Crimp ST Cable Mount Loose Piece Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Diameter = 2.13 mmLoose PieceContact Type = PinWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CONTACT, PIN, 24-18AWG, CRIMP CONTACT, CRIMP, PIN, MATE-LOK, 24-18 AWG Connector,Shell;Pin;CommercialMate-N-Lok;13;250;PhosphorBronze;Pre-Tin TE Connectivity Commercial MATE-N-LOK 系列 公 压接接线端子, 压接, 镀锡触点
