1-332056-0
| Manufacturer | |
| Description | Cable Accessories CPC Ferrule Copper Multiple Coaxial Contacts (COAXICON) CONN FERRULE CPC COAXIAL Ferrule Sub Min Coaxicon RF Connector Accessories COAXICON FERRULE Cable Accessories CPC Ferrule Copper Product Highlights:FerruleCable Type = 161, 174, 179, 179A, 179B, 187, 187A, 188, 188A, 316, Belden 9221Ferrule Diameter = 2.84 mmWire Diameter = 2.84 mmSearch Keywords:RF, multi position, Ferrule;0.112in.;Copper;0.112in.Dia. Sleeve; 2.84mm TE Connectivity COAXICON 系列 13A 圆形 连接器 触芯, 使用于超微型印刷电路板插座 FERRULE, SUB MIN |
| Category |
Business
| Product | Hardware | Product Category | RF Connector Accessories |
| Standard Package | Bulk | Factory Pack Quantity | 1000 |
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | ||
Electrical
| Voltage Rating | 250 V 交流 | Current Rating (Max) | 13A |
Mechanical
| Color | Silver | Length | 0.25mm |
| Weight | 0.56 g | Diameter | 2.84(0.112)mm(Inch) |
| Material | Copper, Tin Plated | Packaging | 纸箱 |
| Cable Type | Belden 9221, RG 161, RG 174, RG 179, RG 179A, RG 179B, RG 187, RG 187A, RG 188, | Insulation | Uninsulated |
| Wire Gauge | 2.84 [0.112] | Body Finish | Tin |
| Body Material | Copper | Angle of Throw | Straight |
| Connector Type | Ferrule | Contact Finish | BrightTin |
| Inner Diameter | 2.84 [0.112] | Plating - Body | 锡 |
| Connector Usage | sleeve | Insert Material | 铜 |
| Contact Material | Copper | Ferrule Material | Copper |
| Length - Overall | 0.250" | Package Quantity | 1 |
| Primary Material | Uninsulated | Insulation Diameter | 0.112Inch |
| Compatible Shell Size | CPC 连接器 | Outside Cable Diameter (Max) | 2.84mm |
Product Info
| Spg | 130 | Note | Extraction Tool No. 305183 |
| Type | Ferrule | Series | COAXICON |
| Manufacturer | AMP | Product Type | Ferrule |
| Accessory Type | Ferrule | Number of Units | 1 |
| Proprietary Name | COAXICON | For Use With/Related Products | CPC Connectors |
| For Use With/Related Manufacturer | CPC Connectors | ||
Environmental
| Operating Temperature | +125°C | ||
Similar Parts
226537-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Barrier Terminal Blocks SUBMIN PIN MULTIMATE Multiple Coaxial Contacts (COAXICON) CONN PIN COAXIAL/SHIELDED 26AWG Multiple Coaxial Contacts (COAXICON) Product Highlights:ContactPinTerminate To Coaxial Cable, Terminate To Shielded WireCable Type = Belden 9221, RD 316, RG 161, RG 174, RG 174DB, RG 179, RG 187, RG 187DB, RG 188, RG 316Wire Range = 0.12-0.15; [26] mm [AWG]Search Keywords:RF, multi position, SUB MIN PIN MULTIMATE

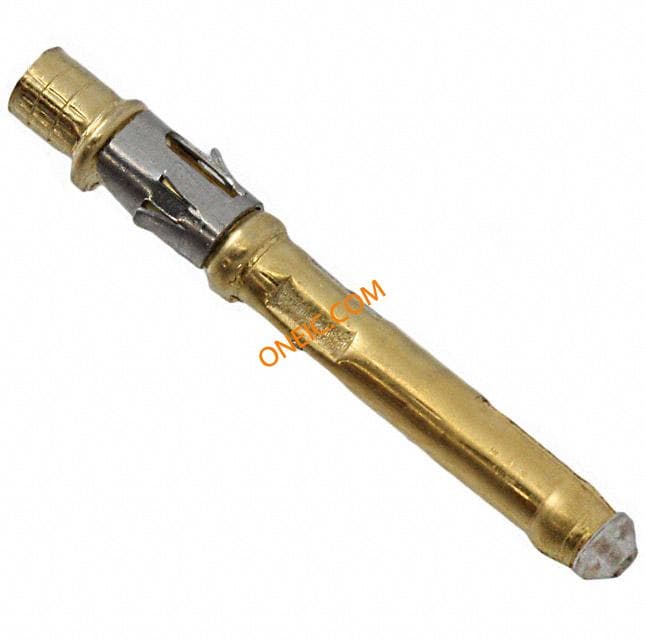

51563-8
