点击放大查看
1-178802-5
| Manufacturer | |
| Description | Conn Housing PL 5 POS 3.81mm Crimp ST Panel Mount Bag Dynamic Series Connectors CONN HOUSING TAB 5POS KEY-X PNL Heavy Duty Power Connectors HOUSING TAB 5 POS KEY-X PNL Conn Housing PL 5 POS 3.81mm Crimp ST Panel Mount Bag Product Highlights:Terminate To WireHousingTabNumber of Positions = 5Mount = PanelSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, DYNAMIC3100S TAB HSG 5P PM X-K |
| Category |
Business
| Product Category | Heavy Duty Power Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 200 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Leadfree Defin | Not relevant for lead free process | UL File Number | E28476 |
| CSA File Number | LR7189 | Standard Number | CSA, UL |
| CSA Certification | Certified | Approved Countries | 是 |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Approval Agency Marking | 否 |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 250 VAC | Voltage - Supply | 250 |
| Voltage - Rated AC | 250 | Current Rating (Max) | 12/Contact A |
| Voltage - Supply (Min) | 250VAC | Connector - Voltage Input | Crimp |
Mechanical
| Color | Black | Depth | 33.6 mm |
| Pitch | 3.81 mm | Width | 12.7 mm [ .499 in ] |
| Height | 12.7 mm | Length | 47 mm [ 1.85 in ] |
| Packaging | Bulk | Body Color | 黑色 |
| Wire Gauge | 16 AWG | Contact Form | Male Pin |
| Contact Type | Male Pin | Housing Color | Black |
| Mounting Type | Straight | Connector Type | Plug |
| Number of Rows | 1 | Insertion Force | 9.8 牛顿 |
| Housing Material | Nylon | Length - Overall | 47 mm |
| Package Quantity | Bag | Panel Mount Type | 带有 |
| Termination Style | 公端 | Number of Contacts | 5 |
| Contact Termination | Crimp | Number of Positions | 5 |
| Compatible Shell Size | 母端护套 | Contact Layout, Typical | 同轴 |
Product Info
| Note | Housing is secured onto panel by push rivet | Type | Housing |
| Gender | PL | Series | D-3100S |
| Features | Polarizing Key | Key Type | X |
| Sealable | 否 | Coded, Keyed | Yes |
| Main Purpose | Polarizing Key | Preinstalled | 否 |
| Product Type | Housing | Connection Type | Wire |
| Selectively Loaded | No | Other Specifications | Without |
| Output Configuration | Panel Mount | ||
Environmental
| Temperature - Test | 标准部件 - 非辉光导线 | Operating Temperature | -55C to 105C |
Documents & Media
Similar Parts
917485-3
te connectivity / amp
Conn Contact M 1 POS Crimp ST Cable Mount Reel Dynamic Series Connectors CONN TAB 14-16AWG CRIMP 30GOLD Headers & Wire Housings RCPT 16-14 AWG 30 AU Dynamic Series Connectors Product Highlights:ContactContact Gender = TabTerminate To WireProduct Series = D-3Wire Range = 1.25-2.00² [16-14] mm [AWG]Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, DYNAMIC D-3 TAB CONT. 2L 16-14
353716-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Reel Dynamic Series Connectors CONN TAB 14-16AWG CRIMP 15GOLD Contact male crimp 16-14AWG Au 3L D-3 Headers & Wire Housings RCPT 16-14 AWG 15 AU Dynamic Series Connectors Product Highlights:ContactContact Gender = TabTerminate To WireProduct Series = D-3Wire Range = 1.25-2.00² [16-14] mm [AWG]Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, TE Connectivity Dynamic 3000 系列 公 压接接线端子, 压接, 镀金触点 DYNAMIC D-3 TAB CONT 3L 16-14
175287-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Bag CONN TAB 24-28AWG CRIMP 15GOLD Heavy Duty Power Connectors D-3 TAB CONTACT Dynamic Series Connectors Dynamic Series Connectors Product Highlights:Terminate To WireContactContact Type = TabTabProduct Series = D-3Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, CONTACT, CRIMP, PLUG, 28-24AWG DYNAMIC D-3 TAB CONT. L/P
175288-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Bag Dynamic Series Connectors CONN TAB 20-24AWG CRIMP 15GOLD Contact male crimp 24-20AWG Au M D-3 Heavy Duty Power Connectors RCPT 24-20 AWG 15 AU Contact PIN Crimp ST Cable Mount Bag Product Highlights:Terminate To WireContactTabProduct Series = D-3Wire Range = 0.20-0.60² [24-20] mm [AWG]Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, TE Connectivity Dynamic 3000 系列 公 压接接线端子, 压接, 镀金触点 DYNAMIC D-3 TAB CONT. M L/P
175289-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Bag Dynamic Series Connectors CONN TAB 16-20AWG CRIMP 30GOLD Contact male crimp 20-16AWG Au L D-3 Heavy Duty Power Connectors TAB CONT. L L/P Contact PIN Crimp ST Cable Mount Bag Product Highlights:Terminate To WireContactTabProduct Series = D-3Wire Range = 0.50-1.40² [20-16] mm [AWG]Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, TE Connectivity Dynamic 3000 系列 公 压接接线端子, 压接, 镀金触点 DYNAMIC D-3 TAB CONT. L L/P
175287-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Bag Dynamic Series Connectors CONN TAB 24-28AWG CRIMP 30GOLD Contact PIN Crimp ST Cable Mount Bag Product Highlights:ContactContact Gender = TabTerminate To WireProduct Series = D-3Wire Range = 0.08-0.24² [28-24] mm [AWG]Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, DYNAMIC D-3 TAB CONT. L/P
175289-5
te connectivity / amp
Contact PIN Crimp ST Cable Mount Bag Dynamic Series Connectors CONN TAB 16-20AWG CRIMP TIN Heavy Duty Power Connectors TAB CONTACT 20-16 CRIMP CONTACT, TAB, 16-20AWG 3.81 DYNAMIC TAB LP TN 20-16
175286-5
te connectivity / amp
Contact PIN Crimp ST Cable Mount Reel Dynamic Series Connectors CONN TAB 16-20AWG CRIMP TIN Contact male crimp 20-16AWG Sn L D-3 Headers & Wire Housings RCPT 24-20 AWG 15 AU Contact PIN Crimp ST Cable Mount Reel Product Highlights:ContactContact Gender = TabTerminate To WireProduct Series = D-3Wire Range = 0.50-1.40² [20-16] mm [AWG]Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, Contactmalecrimp20-16AWGSnLD-3 TE Connectivity Dynamic 3000 系列 公 压接接线端子, 压接, 镀锡触点 DYNAMIC D-3 TAB CONT. L 20-16
175284-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Reel Dynamic Series Connectors CONN TAB 24-28AWG CRIMP 15GOLD Headers & Wire Housings RCPT 28-24 AWG 15 AU Dynamic Series Connectors Product Highlights:Terminate To WireContactTabProduct Series = D-3Wire Range = 0.08-0.24² [28-24] mm [AWG]Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, DYNAMIC D-3 TAB CONT. S 28-24
353718-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Bag Dynamic Series CONN TAB 14-16AWG CRIMP 15GOLD Contact,Tab,crimp,16-14AWG,D-3 Headers & Wire Housings RCPT 16-14 AWG 15 AU Dynamic Series Connectors Dynamic Series Connectors Product Highlights:Terminate To WireContactContact Type = TabTabProduct Series = D-3Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, CONTACT, PIN, 16-14AWG, CRIMP TE Connectivity Dynamic 3000 系列 公 压接接线端子, 压接, 镀金触点 DYNAMIC D-3 TAB L/P 3L 16-14
917485-5
te connectivity / amp
Contact PIN Crimp ST Cable Mount Reel Dynamic Series Connectors CONN TAB 14-16AWG CRIMP TIN Contact male crimp 16-14AWG Sn 2L D-3 Contact PIN Crimp ST Cable Mount Reel Product Highlights:ContactContact Gender = TabTerminate To WireProduct Series = D-3Wire Range = 1.25-2.00² [16-14] mm [AWG]Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, Contactmalecrimp16-14AWGSn2LD-3 TE Connectivity Dynamic 3000 系列 公 压接接线端子, 压接, 镀锡触点 DYNAMIC D-3 TAB CONT. 2L 16-14
175288-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Bag Dynamic Series Connectors CONN TAB 20-24AWG CRIMP 30GOLD Contact male crimp 24-20AWG Au M D-3 Headers & Wire Housings RCPT 24-20 AWG 30 AU Contact PIN Crimp ST Cable Mount Bag Product Highlights:Terminate To WireContactTabProduct Series = D-3Wire Range = 0.20-0.60² [24-20] mm [AWG]Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, CONTACT, CRIMP, PLUG, 24-20AWG Contactmalecrimp24-20AWGAuMD-3 TE Connectivity Dynamic 3000 系列 公 压接接线端子, 压接, 镀金触点 DYNAMIC D-3 TAB CONT. M L/P

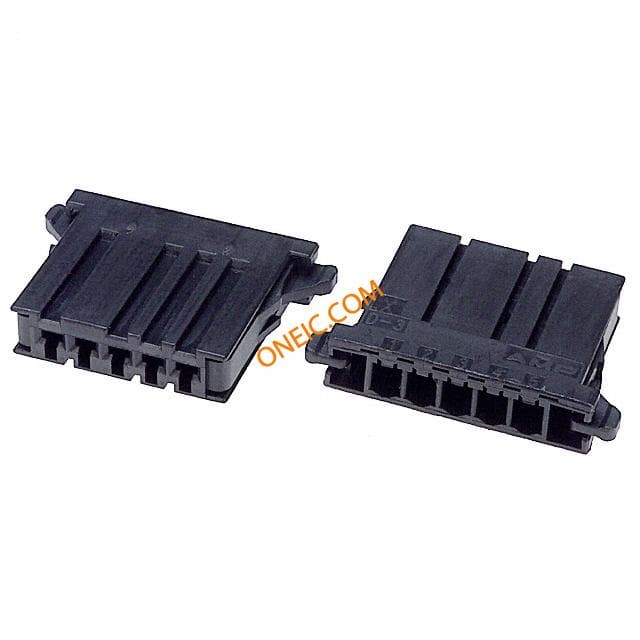

1-178288-5
