1-178288-5
| Manufacturer | |
| Description | Conn Housing RCP 5 POS 3.81mm Crimp ST Cable Mount Bag Dynamic Series Connectors CONN RECEPT 3.81 5POS KEY-X Heavy Duty Power Connectors 5P RCPT HSG Conn Housing RCP 5 POS 3.81mm Crimp ST Cable Mount Bag Product Highlights:Terminate To WireHousingReceptacleNumber of Positions = 5KeyedSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, RECEP HOUSING, 1 ROW 5 WAY CASEKIT&PLUGHSG,3.81DYNAMICRECHSG5P Connector: wire-board; D-3100S; plug; female; w/o terminals; PIN:5 3.81 DYNAMIC REC HSG 5P |
| Category |
Business
| Product Category | Heavy Duty Power Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 600 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | Approval Agency | :CSA, TUV, UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 250 VAC | Voltage - Rated AC | 250 |
| Dielectric Strength | :1500V/m | Current Rating (Max) | 10/Contact A |
| Current - Max/Contact | :10A | Insulation Resistance | :10mohm |
| Voltage - Supply (Min) | 250VAC | Connector - Voltage Input | w/o terminals |
Mechanical
| Color | Black | Depth | 22.8 mm |
| Pitch | 3.81 mm | Height | 7.15 mm |
| Weight | 0.1 | Packaging | Bulk |
| Wire Gauge | 16 AWG | Contact Type | Female Socket |
| Pitch - Post | 3.81mm | Housing Color | Black |
| Mounting Type | Straight | Connector Type | Receptacle |
| Mounting Style | for cable | Number of Rows | 1 |
| Package / Case | :PBT / Nylon 66 UL94V-0 | Housing Material | Nylon |
| Length - Overall | 34.38 mm | Package Quantity | Bag |
| Connector - Cable | plug | Number of Contacts | 5 |
| Contact Termination | Crimp | Number of Positions | 5 |
| 1st Connector Mounting Feature | 1x5 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | D-3100S |
| Features | Polarizing Key | Key Type | X |
| Coded, Keyed | Yes | Product Type | Housing |
| Adapter Series | D-3100S | Connection Type | Wire |
| Number of Units | 1 | For Use With/Related Products | :D-3100S Dynamic Series Connectors |
Environmental
| Operating Temperature | -55C to 105C | ||
Documents & Media
Similar Parts
1-917484-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel Heavy Duty Power Connectors REC CONT 2L 16-14 Dynamic Series Connectors CONN RCPT 14-16AWG CRIMP 15GOLD Contact female crimp 16-14AWG Au 2L D-3 Contact SKT Crimp ST Cable Mount Reel Product Highlights:Terminate To WireContactReceptacleProduct Series = D-3Wire Range = 1.25-2.00² [16-14] mm [AWG]Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, TE Connectivity Dynamic 3000 系列 母 压接接线端子, 压接, 镀金触点 DYNAMIC D-3 REC CONT 2L 16-14
1-175196-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel Dynamic Series Connectors CONN RCPT 16-20AWG CRIMP TIN Contact,female,crimp,20-16AWG,D-3 Headers & Wire Housings DYNAMIC D-3 REC CONT 1-175196-5 Contact SKT Crimp ST Cable Mount Reel Product Highlights:Terminate To WireContactReceptacleProduct Series = D-3Wire Range = 0.50-1.40² [20-16] mm [AWG]Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, CONTACT, RECEPTACLE, AWG20-16 CONTACT, CRIMP, SOCKET, 20-16AWG, REEL TE Connectivity Dynamic 3000 系列 母 压接接线端子, 压接, 镀锡触点 DYNAMIC D-3 REC CONT/L PRE-TIN
1-175195-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel Dynamic Series Connectors CONN RCPT 20-24AWG CRIMP 15GOLD Contact female crimp 24-20AWG Au M D-3 Headers & Wire Housings REC CONT/M AU 0.38 Dynamic Series Connectors Product Highlights:Terminate To WireContactReceptacleProduct Series = D-3Wire Range = 0.20-0.60² [24-20] mm [AWG]Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, TE Connectivity Dynamic 3000 系列 母 压接接线端子, 压接, 镀金触点 DYNAMIC D-3 REC CONT/M AU 0.38
1-178315-2
te connectivity / amp
Conn Power M 5 POS 3.81mm Solder ST Thru-Hole 5 Terminal 1 Port Tube Dynamic Series CONN HDR 5POS VERT KEY-X 15GOLD D-3000 5 Male Straight Heavy Duty Power Connector, Through Hole,250V ac Headers & Wire Housings HDR 5 POS VERT 15 AU KEY X Dynamic Series Connectors Dynamic Series Connectors Product Highlights:Terminate To Printed Circuit BoardHeaderTabNumber of Positions = 5Mount = Board MountSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, Headervert5wayTAB3.81mmXkeyD-3 TE Connectivity Dynamic 3000 系列 3.81mm节距 5路 直 PCB 针座, 焊接端接 , 通孔 DYNAMIC S/ROW HDR 5P V ASSY
175216-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Bag Dynamic Series Connectors CONN RCPT 24-28AWG CRIMP 30GOLD Contact female crimp 28-24AWG Au S D-3 Headers & Wire Housings RCPT 28-24 AWG 30 AU CRIMP STD INSERT Contact SKT Crimp ST Cable Mount Bag Product Highlights:Terminate To WireContactReceptacleProduct Series = D-3Wire Range = 0.08-0.24² [28-24] mm [AWG]Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, Contactfemalecrimp28-24AWGAuSD-3 TE Connectivity Dynamic 3000 系列 母 压接接线端子, 压接, 镀金触点 DYNAMIC REC CONT. S L/P

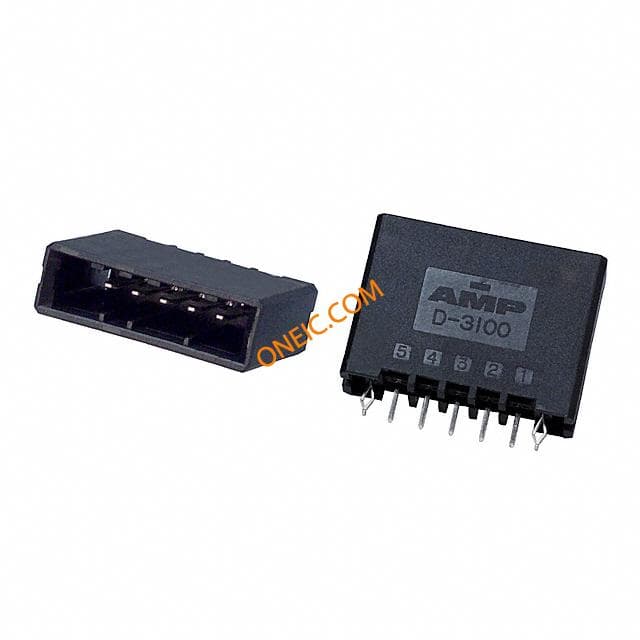

1-178315-5
te connectivity / amp
Conn Power HDR 5 POS 3.81mm Solder ST Thru-Hole 5 Terminal 1 Port Tube Dynamic Series Connectors CONN HDR 5POS VERT KEY-X TIN D-3000 5 Male Straight Heavy Duty Power Connector, Through Hole,250V ac Heavy Duty Power Connectors 5P TAB HEADER Conn Power HDR 5 POS 3.81mm Solder ST Thru-Hole 5 Terminal 1 Port Tube Product Highlights:Terminate To Printed Circuit BoardHeaderTabNumber of Positions = 5Mount = Board MountSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, Powerheader,male,5way,3.81mm,180°,pcb Connector: wire-board; D-3100S; socket; male; straight; PIN:5; 250V TE Connectivity Dynamic 3000 系列 3.81mm节距 5路 直 PCB 针座, 焊接端接 , 通孔 3.81 DYNAMIC D3100S 5P CP H V
1-178315-3
te connectivity / amp
Conn Power HDR 5 POS 3.81mm Solder ST Thru-Hole 5 Terminal 1 Port Tube Dynamic Series Connectors CONN HDR 5POS VERT KEY-X 30GOLD D-3000 5 Male Straight Heavy Duty Power Connector, Through Hole,250V ac Headers & Wire Housings HDR 5 POS VERT 30 AU KEY X Conn Power HDR 5 POS 3.81mm Solder ST Thru-Hole 5 Terminal 1 Port Tube Product Highlights:Terminate To Printed Circuit BoardHeaderTabNumber of Positions = 5Mount = Board MountSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, Headervert5wayTAB3.81mmXkeyD-3 TE Connectivity Dynamic 3000 系列 3.81mm节距 5路 直 PCB 针座, 焊接端接 , 通孔 DYNAMIC S/ROW HDR 5P V ASSY
1-353715-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel Dynamic Series Connectors CONN RCPT 14-16AWG CRIMP 15GOLD Contact female crimp 16-14AWG Au 3L D-3 Contact SKT Crimp ST Cable Mount Reel Product Highlights:Terminate To WireContactContact Type = ReceptacleReceptacleProduct Series = D-3Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, CONTACT, CRIMP, RECEPTACLE, 16-14AWG TE Connectivity Dynamic 3000 系列 母 压接接线端子, 压接, 镀金触点 DYNAMIC D-3 REC CONT 3L 16-14
1-178802-5
te connectivity / amp
Conn Housing PL 5 POS 3.81mm Crimp ST Panel Mount Bag Dynamic Series Connectors CONN HOUSING TAB 5POS KEY-X PNL Heavy Duty Power Connectors HOUSING TAB 5 POS KEY-X PNL Conn Housing PL 5 POS 3.81mm Crimp ST Panel Mount Bag Product Highlights:Terminate To WireHousingTabNumber of Positions = 5Mount = PanelSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, DYNAMIC3100S TAB HSG 5P PM X-K
1-353717-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Bag Dynamic Series Connectors CONN RCPT 14-16AWG CRIMP 30GOLD Contact female crimp 16-14AWG Au 3L D-3 Heavy Duty Power Connectors REC L/P 3L 16-14 Contact SKT Crimp ST Cable Mount Bag Product Highlights:Terminate To WireContactReceptacleProduct Series = D-3Wire Range = 1.25-2.00² [16-14] mm [AWG]Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, CONTACT, RECEPTACLE, 16-14AWG, CRIMP Contactfemalecrimp16-14AWGAu3LD-3 TE Connectivity Dynamic 3000 系列 母 压接接线端子, 压接, 镀金触点 DYNAMIC D-3 REC L/P 3L 16-14

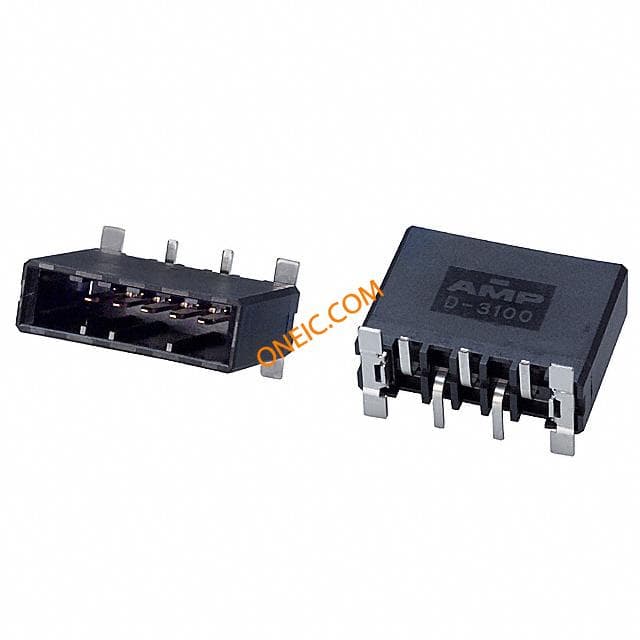

1-177665-2
te connectivity / amp
Conn Power HDR 5 POS 3.81mm Solder ST SMD 5 Terminal 1 Port Tube Dynamic Series Connectors CONN HEADER 5POS VERT 15GOLD SMD Dynamic Series Connectors Product Highlights:Terminate To Printed Circuit BoardHeaderTabNumber of Positions = 5KeyedSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, DYNAMIC D-3 HDR
1-175196-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel Dynamic Series Connectors CONN RCPT 16-20AWG CRIMP 30GOLD Contact female crimp 20-16AWG Au L D-3 Headers & Wire Housings CONTACT RCPT GOLD Contact SKT Crimp ST Cable Mount Reel Product Highlights:Terminate To WireContactContact Type = ReceptacleReceptacleProduct Series = D-3Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, Contactfemalecrimp20-16AWGAuLD-3 TE Connectivity Dynamic 3000 系列 母 压接接线端子, 压接, 镀金触点 DYNAMIC D-3 REC CONT/L AU 0.76

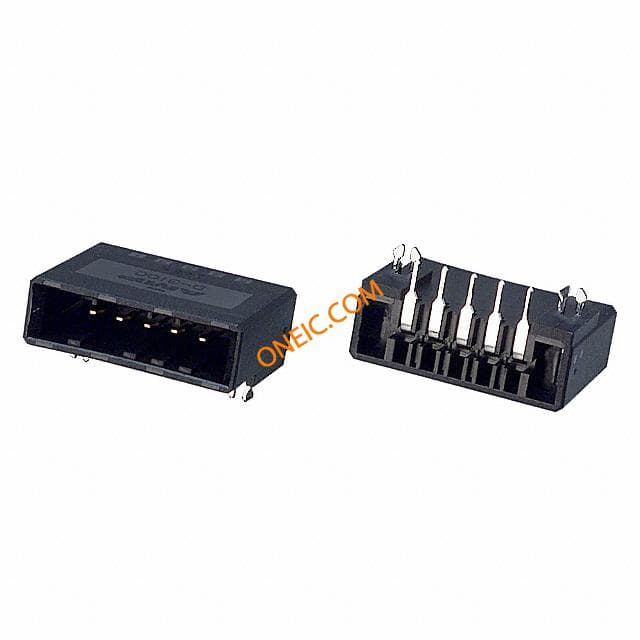

1-178295-2
te connectivity / amp
Conn Power M 5 POS 3.81mm Solder RA Thru-Hole 5 Terminal 1 Port Tube Dynamic Series Connectors CONN HDR 5POS R/A KEY-X 15GOLD D-3000 5 Male Right Angle Heavy Duty Power Connector, Through Hole,250V ac Heavy Duty Power Connectors HDR 5 POS R/A 15 AU KEY-X 1-178295-2 Conn Power M 5 POS 3.81mm Solder RA Thru-Hole 5 Terminal 1 Port Tube Product Highlights:Terminate To Printed Circuit BoardHeaderTabNumber of Positions = 5Mount = Board MountSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, Headerhoriz5wayTAB3.81mmXkeyD-3 TE Connectivity Dynamic 3000 系列 3.81mm节距 5路 直角 PCB 针座, 焊接端接 , 通孔 DYNAMIC S/ROW HDR 5P H ASSY

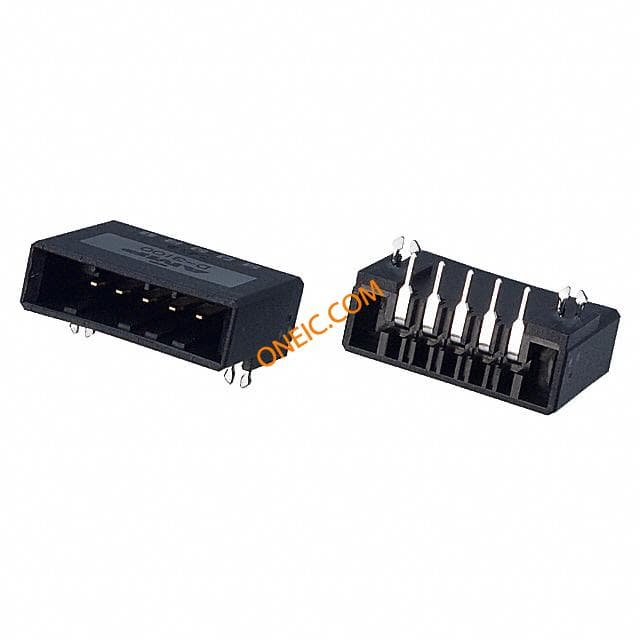

1-178295-3
te connectivity / amp
Conn Power M 5 POS 3.81mm Solder RA Thru-Hole 5 Terminal 1 Port Tube Dynamic Series Connectors CONN HDR 5POS R/A KEY-X 30GOLD D-3000 5 Male Right Angle Heavy Duty Power Connector, Through Hole,600V ac Heavy Duty Power Connectors HDR 5 POS R/A 30 AU KEY-X Conn Power M 5 POS 3.81mm Solder RA Thru-Hole 5 Terminal 1 Port Tube Product Highlights:Terminate To Printed Circuit BoardHeaderTabNumber of Positions = 5Mount = Board MountSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, Headerhoriz5wayTAB3.81mmXkeyD-3 TE Connectivity Dynamic 3000 系列 3.81mm节距 5路 直角 PCB 针座, 焊接端接 , 通孔 DYNAMIC S/ROW HDR H 5P ASSY

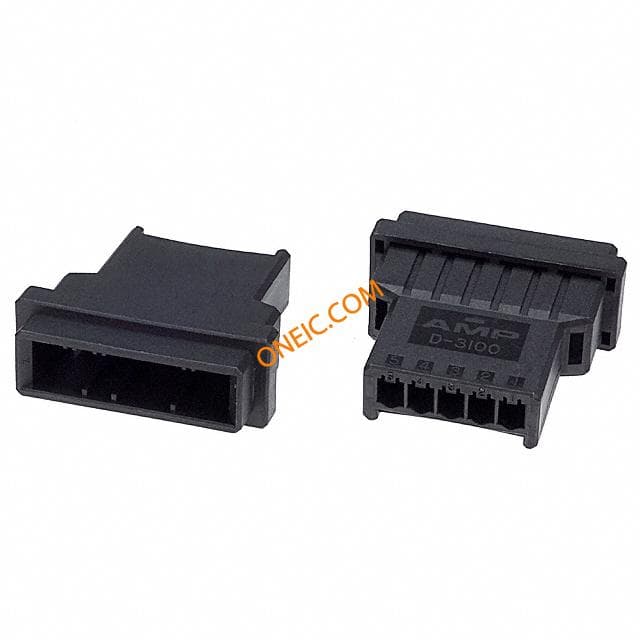

1-177648-5
te connectivity / amp
Conn Housing M 5 POS 3.81mm Crimp ST Cable Mount Bag Dynamic Series Connectors CONN HOUSING TAB 5POS KEY-X Housing 5 way TAB 3.81mm X key D-3 Heavy Duty Power Connectors 5P TAB HSG Dynamic Series Connectors Product Highlights:ConnectorHousing Gender = ReceptacleWithout ContactsHousing Accepts Contact Type = TabTerminate To WireSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, HOUSING, PLUG, D-3100S, 5WAY Housing5wayTAB3.81mmXkeyD-3 TE Connectivity Dynamic 3000 系列 3.81mm 节距 5 路 直 公 电缆安装 PCB 壳体 D3100S DYNAMIC W-T-W TAB HSG
1-175218-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Bag Dynamic Series Connectors CONN RCPT 16-20AWG CRIMP TIN Heavy Duty Power Connectors CONTACT RCPT TIN Contact SKT Crimp ST Cable Mount Bag Product Highlights:Terminate To WireContactReceptacleProduct Series = D-3Wire Range = 0.50-1.40² [20-16] mm [AWG]Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, CRIMP SOCKET, 16-20AWG DYNAMICPOSTHEADER,3.81DYNAMICRECLLPTN20-16 Contact; female; 0.5÷1.4mm2; D-3; tinned; crimped, on cable 3.81 DYNAMIC REC L LP TN 20-16
1-917484-3
te connectivity / amp
Conn Contact F 1 POS Crimp ST Cable Mount Reel Dynamic Series Connectors CONN RCPT 14-16AWG CRIMP 30GOLD Headers & Wire Housings RECPT 16-14 AWG Contact SKT Crimp ST Cable Mount Reel Contact SKT Crimp ST Cable Mount Reel Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, DYNAMIC D-3 REC CONT 2L 16-14
175216-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Bag Dynamic Series Connectors CONN RCPT 24-28AWG CRIMP 15GOLD Contact,receptacle,crimp,28-24AWG,D-3 Heavy Duty Power Connectors D3100 CONTACT SKT Contact SKT Crimp ST Cable Mount Bag Product Highlights:Terminate To WireContactReceptacleProduct Series = D-3Wire Range = 0.08-0.24² [28-24] mm [AWG]Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, CONTACT, CRIMP, RECEPTACLE, 28-24AWG CONTACT,REC,CRIMP TE Connectivity Dynamic 3000 系列 母 压接接线端子, 压接, 镀金触点 DYNAMIC REC CONT. S L/P

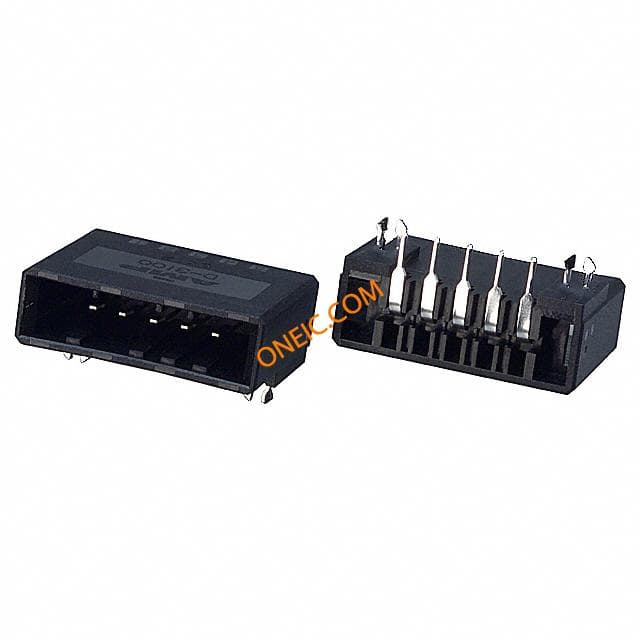

1-178295-5
te connectivity / amp
Conn Power M 5 POS 3.81mm Solder RA Thru-Hole 5 Terminal 1 Port Tube Dynamic Series Connectors CONN HDR 5POS R/A KEY-X TIN D-3000 5 Male Right Angle Heavy Duty Power Connector, Through Hole,600V ac Headers & Wire Housings HDR 5 POS R/A TIN KEY-X Conn Power M 5 POS 3.81mm Solder RA Thru-Hole 5 Terminal 1 Port Tube Product Highlights:Terminate To Printed Circuit BoardHeaderTabNumber of Positions = 5Mount = Board MountSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, Headerhoriz5wayTAB3.81mmXkeyD-3 TE Connectivity Dynamic 3000 系列 3.81mm节距 5路 直角 PCB 针座, 焊接端接 , 通孔 3.81 DYNAMIC CAP H RT

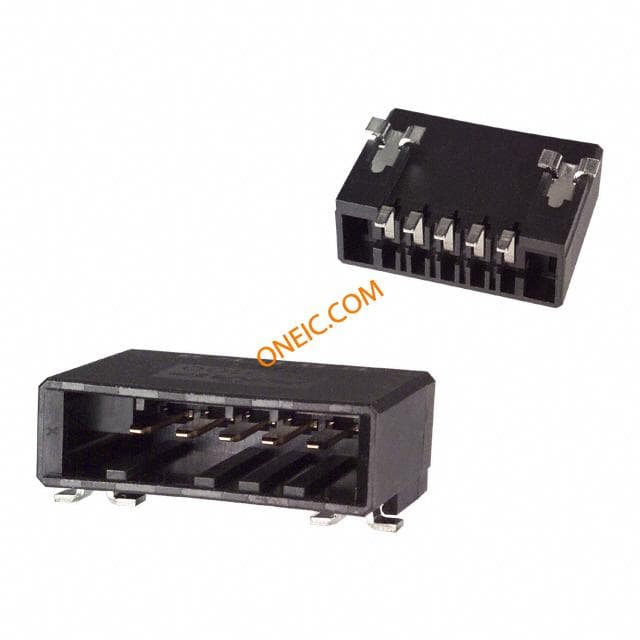

1-177662-2
