1-1634629-0
| Manufacturer | |
| Description | Conn ZDC/BNC RCP 0Hz to 2GHz 75Ohm Solder ST Thru-Hole Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK STR 75 OHM PCB RF Connectors / Coaxial Connectors Str PCB Skt Black 75Ohm Conn ZDC/BNC RCP 0Hz to 2GHz 75Ohm Solder ST Thru-Hole Gold Over Nickel Over Copper Individual Product Highlights:ConnectorConnector Type = ZDC/BNCJackTerminate To Printed Circuit BoardBody Style = StraightSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 SOCKET, BNC, INS, PCB, 75R, BLACK BNCINSSTRPCBSKT75OHMBLACK BNC Ins Str PCB Skt 75Ohm Black |
| Category |
Business
| Product | PCB Receptacles | Product Category | RF Connectors / Coaxial Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366910 |
| Rad Hardened | No | ||
Electrical
| Frequency | 0 to 2 GHz | Impedance | 75 Ohm |
| Voltage Rating | 500V | Frequency - Max | 2GHz |
| Voltage - Working | :500V | Contact Resistance | :1.5mohm |
| Voltage - Breakdown | :1500V | Insulation Resistance | :5000Mohm |
| Impedance - Unbalanced/Balanced | :75R | ||
Mechanical
| Size | Standard | Depth | 15.8 mm |
| Height | 43.9 mm | Weight | 0.01 |
| Packaging | Bulk | Cable Type | :- |
| Body Finish | Nickel | Orientation | Straight |
| Termination | Solder | Body Material | Zinc Alloy |
| Housing Color | Black | Mounting Type | Through Hole |
| Angle of Throw | Straight | Connector Type | Jack, Female Socket |
| Contact Finish | Gold Over Nickel Over Copper | Fastening Type | Bayonet Lock |
| Housing Finish | Nickel | Mounting Style | Through Hole |
| Plating - Body | Nickel Over Copper | Connector Style | BNC |
| Contact Material | Brass | Length - Overall | 14.76 mm |
| Primary Material | BNC | Termination Style | Solder |
| Color - Connectors | :Black | Shield Termination | Solder |
| Contact Termination | Solder | Dielectric Material | Polyethylene (PE) |
| Insulation Material | Polyethylene 606 | Material - Insulation | :Zinc |
| Center Contact Plating | Gold | Center Contact Material | Brass |
| Supplier Device Package | Straight | 1st Connector Mounting Type | :PCB |
Product Info
| Type | ZDC/BNC | Gender | RCP |
| Series | :- | Features | Board Guide |
| Polarity | Normal | Connection Type | PCB |
| RF Family/Standard | 1634629 | ||
Environmental
| Mating Cycles | :50 | Operating Temperature | -55°C ~ 85°C |
Documents & Media
Similar Parts
1-1478031-0
te connectivity / amp
Conn BNC RCP 0Hz to 2GHz 75Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK R/A 75 OHM PCB RF Connectors / Coaxial Connectors PCB Skt MP White 75Ohm Conn BNC RCP 0Hz to 2GHz 75Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual Product Highlights:ConnectorConnector Type = ZDC/BNCJackTerminate To Printed Circuit BoardBody Style = ElbowSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 SOCKET, BNC, INS, PCB, 75R, WHITE BNCINSLPPCBSKT75OHMMPWHITE TE Connectivity 直角 75Ω 通孔 BNC 连接器, 插口, 焊接 端接 BNC Ins LP PCB Skt 75Ohm White

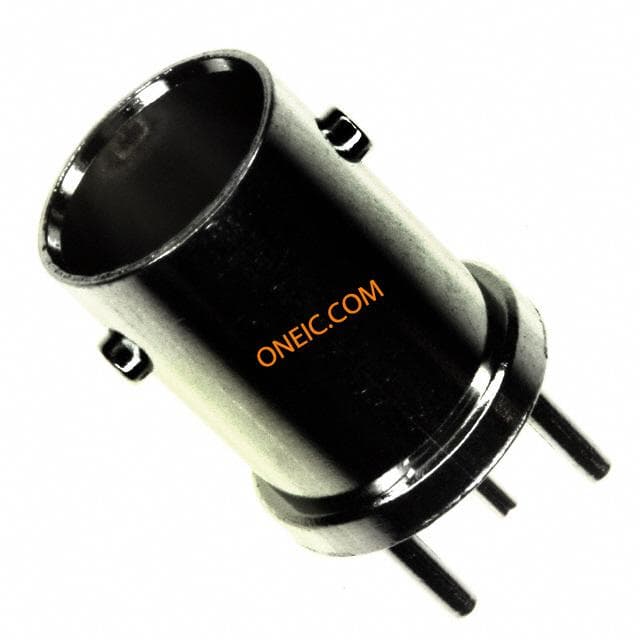

5-1634503-3
