1-1337430-0
| Manufacturer | |
| Description | Conn BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Silver Individual BNC RF Connectors CONN BNC PLUG STR 50 OHM SOLDER BNC straight plug,crimp, Ag, RG174,RG188 Conn BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Silver Individual Product Highlights:ConnectorConnector Type = BNCPlugTerminate To Coaxial CableNot StackedSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 PLUG, BNC, STRAIGHT, RG174 Greenparcrimpstraight,Ag,plug-RG174 TE Connectivity 直 50Ω 电缆安装 BNC 连接器 插头, 压接 端接, RG174 A/U, RG188 A/U, RG316/U电缆, 镀银本体 BNC Str Plg Hex 50Ohm Silver Pltd RG174A |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366910 |
Electrical
| Frequency | 0 to 4 GHz | Impedance | 50 Ohm |
| Voltage Rating | 500V | Frequency - Max | 4GHz |
| Voltage - Working | :500V | Voltage - Breakdown | :1500V |
| Insulation Resistance | :5000Mohm | ||
Mechanical
| Weight | 0.01038 | Packaging | Bulk |
| Cable Type | :RG174 | Body Finish | Silver |
| Cable Group | RG-174A, 188A, 316 | Termination | Crimp |
| Body Material | Brass | Mounting Type | Cable Mount |
| Angle of Throw | Straight | Connector Type | Plug, Male Pin |
| Contact Finish | Silver | Fastening Type | Bayonet Lock |
| Mounting Style | CableMount | Plating - Body | :Silver |
| Connector Style | BNC | Contact Material | Brass |
| Primary Material | BNC | Shield Termination | Crimp |
| Contact Termination | Solder | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Center Contact Plating | Silver | Center Contact Material | Brass |
| Supplier Device Package | :Straight Plug | 1st Connector Mounting Type | :Cable |
Product Info
| Type | BNC | Gender | PL |
| Series | :- | Connection Type | RG/U Cable |
| RF Family/Standard | 1337430 | ||
Environmental
| Mating Cycles | :500 | Operating Temperature | -65°C ~ 165°C |
Documents & Media
Similar Parts
1-1337454-0
te connectivity / amp
Conn BNC Adapter RCP/RCP 0Hz to 4GHz 50Ohm ST Panel Mount Gold BNC RF Connectors CONN BNC INS BH ADP JACK-JACK BNC,insulated,adaptor,jack-jack,50ohm RF Connectors / Coaxial Connectors BH ADP JACK-JACK Conn BNC Adapter RCP/RCP 0Hz to 4GHz 50Ohm ST Panel Mount Gold Product Highlights:AdapterConnector Type = BNCBody Style = StraightCommercial GradeConnector Impedance = 50 ?Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 ADAPTOR, BNC JACK-JACK, BULKHEAD BNC,strt,T-adaptor,plug-jack-jack,50ohm CONN ADAPT JACK-JACK BNC 50 OHM BNC adapter, female/female 50 Ohm, 1-1337454-0, TE Connectivity TE Connectivity 直 50Ω 射频适配器 , 0 → 4GHz, BNC 插座 到 BNC 插座 BNC Ins BH Adp JJ 50Ohm Nickel Pltd
1-1478148-0
te connectivity / amp
Conn BNC RCP 0Hz to 4GHz 50Ohm Crimp ST Panel Mount Silver Individual BNC RF Connectors CONN BNC JACK STR 50 OHM SOLDER RF Connectors / Coaxial Connectors RM BHJ MC 50 Ohm JACK BNC, BULKHEAD, RG58 BNC RM BHJ MC 50Ohm Silver Pltd RG58C/U,
1-1478035-0
te connectivity / amp
Conn BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Silver Individual BNC RF Connectors CONN BNC JACK R/A 50 OHM PCB BNC jack,PCB,right angle, 50 Ohm,silver RF Connectors / Coaxial Connectors R/A PCB Skt 50 Ohm Conn BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Silver Individual Product Highlights:ConnectorConnector Type = BNCJackTerminate To Printed Circuit BoardBody Style = ElbowSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 SOCKET, BNC, PCB, ELBOW, 50R NiPtBNCrightanglePCBsocket,50ohm TE Connectivity Greenpar 直角 50Ω 通孔 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀银本体 BNC R/A PCB Skt 50Ohm Silver P

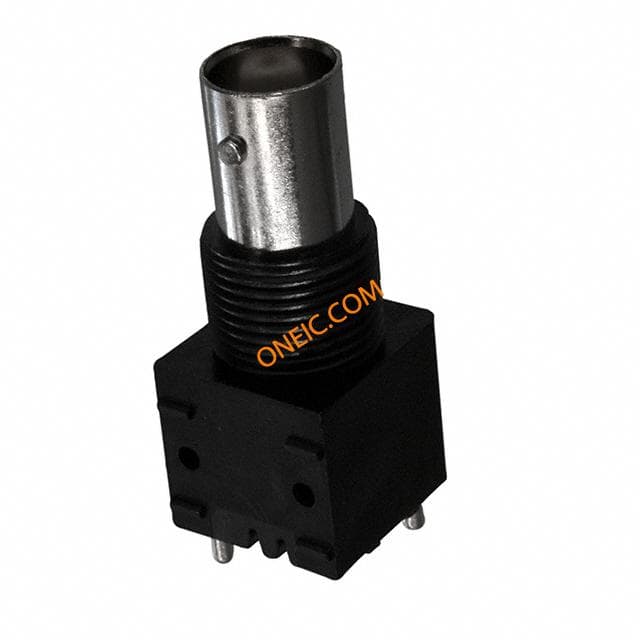

1-1634505-0
te connectivity / amp
Conn ZDC/BNC RCP 50Ohm Solder ST Thru-Hole Gold Individual BNC RF Connectors CONN BNC JACK STR 50 OHM PCB BNC black insul straight socket, 50 ohm RF Connectors / Coaxial Connectors Str PCB Skt MP Black 50Ohm Conn ZDC/BNC RCP 50Ohm Solder ST Thru-Hole Gold Individual Product Highlights:ConnectorConnector Type = ZDC/BNCJackTerminate To Printed Circuit BoardBody Style = StraightSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 SOCKET, BNC, INS, PCB, 50R, BLACK BNCINSSTRPCBSKT50OHMMPBLACK TE Connectivity Greenpar 直 50Ω 通孔 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC Ins Str PCB Skt 50Ohm Black
1-1337457-0
te connectivity / amp
Conn BNC Adapter RCP/RCP 0Hz to 4GHz 50Ohm ST Silver Individual BNC RF Connectors CONN BNC ADAPTER FEMALE/FEMALE Greenpar AgPt BNC skt-skt adaptor,50ohm RF Connectors / Coaxial Connectors BNC STR ADP JJ 50OHM SILVER PLTD Conn BNC Adapter RCP/RCP 0Hz to 4GHz 50Ohm ST Silver Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 ADAPTOR, BNC JACK-JACK, 50R GreenparAgPtBNCskt-sktadaptor,50ohm TE Connectivity 直 50Ω 射频适配器 , 0 → 4GHz, BNC 插座 到 BNC 插座 BNC Str Adp JJ 50Ohm Silver Pltd
1-1337446-0
te connectivity / amp
Conn BNC RCP 0Hz to 2GHz 75Ohm Solder Cup ST Panel Mount Silver Individual BNC RF Connectors CONN BNC JACK STR 75 OHM SOLDER AgPt BNC panel mount solder socket,50ohm RF Connectors / Coaxial Connectors BNC PNL SKT 50OHM SILVER PLTD Conn BNC RCP 0Hz to 2GHz 75Ohm Solder Cup ST Panel Mount Silver Individual Product Highlights:ConnectorConnector Type = BNCJackBody Style = PanelNot Surface MountableSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 SOCKET, BNC, PANEL, 50R AgPtBNCpanelmountsoldersocket,50ohm Socket; BNC; female; straight; 50Ω; soldering; teflon TE Connectivity Greenpar 直 50Ω 面板安装 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀银本体 BNC Pnl Skt 50Ohm Silver Pltd
1-1337463-0
te connectivity / amp
BNC PLG TERM 50OHM SILVER PLTD BNC RF Connectors CONN TERMINATOR BNC MALE 50 OHM BNC plug termination 50ohm 1GHz 0.5W RF Connectors / Coaxial Connectors BNC PLG TERM 50OHM SILVER PLTD Connector Accessories Plug BNC Terminator Individual Connector Accessories Plug BNC Terminator Individual Product Highlights:TerminatorConnector Type = BNCPlugBody Style = StraightNot Surface MountableSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 PLUG, BNC, TERM, 50R BNCplugtermination50ohm1GHz0.5W BNCTERMINATION50OHM Terminator; BNC; 50Ω; teflon; silver plated TE Connectivity 50Ω 直 BNC 射频终接器 插头, 电缆安装, 0 → 1GHz, 平均额定功率0.5W BNC Plg Term 50Ohm Silver Pltd
1-1337442-0
te connectivity / amp
Conn BNC RCP 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Silver Individual BNC RF Connectors CONN BNC JACK STR 50 OHM SOLDER Crimp BNC straight jack-RG58 cable,50ohm RF Connectors / Coaxial Connectors Str Jk Hex 50 Ohm Conn BNC RCP 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Silver Individual Product Highlights:ConnectorConnector Type = BNCJackTerminate To Coaxial CableNot StackedSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 JACK BNC, RG58, STRAIGHT CrimpBNCstraightjack-RG58cable,50ohm TE Connectivity 直 50Ω 电缆安装 BNC 连接器, 插口, 压接 端接, RG141 A/U, RG58 C/U电缆, 镀银本体 BNC Str Jk Hex 50Ohm Silver Pltd RG58C/U

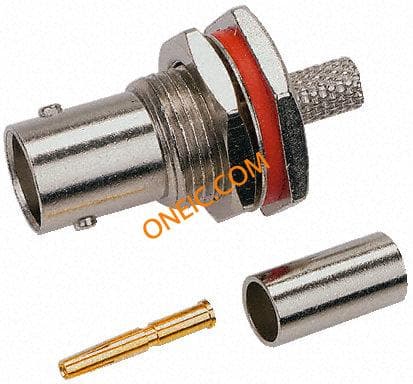

1-1337548-0
