点击放大查看
1-1337442-0
| Manufacturer | |
| Description | Conn BNC RCP 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Silver Individual BNC RF Connectors CONN BNC JACK STR 50 OHM SOLDER Crimp BNC straight jack-RG58 cable,50ohm RF Connectors / Coaxial Connectors Str Jk Hex 50 Ohm Conn BNC RCP 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Silver Individual Product Highlights:ConnectorConnector Type = BNCJackTerminate To Coaxial CableNot StackedSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 JACK BNC, RG58, STRAIGHT CrimpBNCstraightjack-RG58cable,50ohm TE Connectivity 直 50Ω 电缆安装 BNC 连接器, 插口, 压接 端接, RG141 A/U, RG58 C/U电缆, 镀银本体 BNC Str Jk Hex 50Ohm Silver Pltd RG58C/U |
| Category |
Business
| Product | Connectors | Product Category | RF Connectors / Coaxial Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366910 |
Electrical
| Frequency | 0 to 4 GHz | Impedance | 50 Ohm |
| Voltage Rating | 500V | Frequency - Max | 4GHz |
| Voltage - Working | :500V | Voltage - Breakdown | :1500V |
| Insulation Resistance | :5000Mohm | ||
Mechanical
| Weight | 0.01527 | Packaging | Bulk |
| Cable Type | :RG58C, RG141A, URM43, URM76 | Body Finish | Silver |
| Cable Group | RG-58C, 141A | Termination | Crimp |
| Body Material | Brass | Mounting Type | Cable Mount |
| Angle of Throw | Straight | Connector Type | Jack, Female Socket |
| Contact Finish | Silver | Fastening Type | Bayonet Lock |
| Mounting Style | CableMount | Plating - Body | :Silver |
| Connector Style | BNC | Contact Material | Brass |
| Primary Material | BNC | Shield Termination | Crimp |
| Contact Termination | Solder | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Center Contact Plating | Silver | Center Contact Material | Brass |
| Supplier Device Package | :Straight Jack | 1st Connector Mounting Type | :Cable |
Product Info
| Type | BNC | Gender | RCP |
| Series | :- | Connection Type | Coaxial Cable |
| RF Family/Standard | 1337442 | ||
Environmental
| Mating Cycles | :500 | Operating Temperature | -65°C ~ 165°C |
Documents & Media
Similar Parts
1-1337503-0
te connectivity / amp
Conn BNC PL 0Hz to 4GHz 50Ohm Solder RA Cable Mount Silver Individual BNC RF Connectors CONN BNC PLUG R/A 50 OHM SOLDER RF Connectors / Coaxial Connectors R/A Plg PS 50 Ohm Conn BNC PL 0Hz to 4GHz 50Ohm Solder RA Cable Mount Silver Individual Product Highlights:ConnectorConnector Type = BNCPlugTerminate To Coaxial CableCoaxial Cable Termination Type = Solder/ClampSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012
1-1337427-0
te connectivity / amp
Conn BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Silver Individual BNC RF Connectors CONN BNC PLUG STR 50 OHM SOLDER Crimp BNC straight plug-RG58 cable,50ohm RF Connectors / Coaxial Connectors RF BNC 50 Ohm STR PLUG HEX Conn BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Silver Individual Product Highlights:ConnectorConnector Type = BNCPlugTerminate To Coaxial CableCoaxial Cable Termination Type = CrimpSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 PLUG, BNC, STRAIGHT, RG58 CrimpBNCstraightplug-RG58cable,50ohm Plug; BNC; male; straight; 50Ω; RG141,RG58C/U, URM43,URM76; crimped TE Connectivity 直 50Ω 电缆安装 BNC 连接器 插头, 压接 端接, RG141 A/U, RG58 C/U电缆, 镀银本体 BNC Str Plg Hex 50Ohm Silver P
1-1337463-0
te connectivity / amp
BNC PLG TERM 50OHM SILVER PLTD BNC RF Connectors CONN TERMINATOR BNC MALE 50 OHM BNC plug termination 50ohm 1GHz 0.5W RF Connectors / Coaxial Connectors BNC PLG TERM 50OHM SILVER PLTD Connector Accessories Plug BNC Terminator Individual Connector Accessories Plug BNC Terminator Individual Product Highlights:TerminatorConnector Type = BNCPlugBody Style = StraightNot Surface MountableSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 PLUG, BNC, TERM, 50R BNCplugtermination50ohm1GHz0.5W BNCTERMINATION50OHM Terminator; BNC; 50Ω; teflon; silver plated TE Connectivity 50Ω 直 BNC 射频终接器 插头, 电缆安装, 0 → 1GHz, 平均额定功率0.5W BNC Plg Term 50Ohm Silver Pltd
1-1478075-0
te connectivity / amp
Conn BNC PL 0Hz to 4GHz 50Ohm Crimp RA Cable Mount Silver Individual BNC RF Connectors CONN BNC PLUG R/A 50 OHM SOLDER Crimp BNC elbow plug-RG58 cable,75ohm RF Connectors / Coaxial Connectors BNC R/A Plg Hex 50 Ohm Silver P Conn BNC PL 0Hz to 4GHz 50Ohm Crimp RA Cable Mount Silver Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 PLUG, BNC, ELBOW, RG58 CrimpBNCelbowplug-RG58cable,75ohm TE Connectivity 直角 50Ω 电缆安装 BNC 连接器 插头, 压接 端接, RG141 A/U, RG58 C/U电缆, 镀银本体 BNC R/A Plg Hex 50Ohm Silver Pltd RG58C/

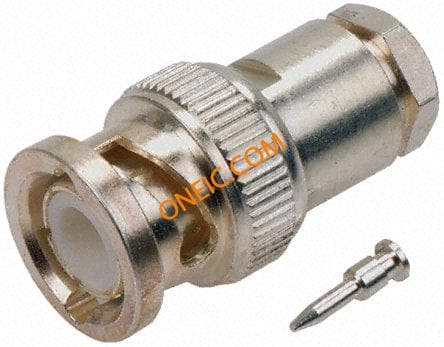

1-1478400-0
