33470
| Manufacturer | |
| Description | Ring Tongue Terminal 4AWG 33.38mm 16.66mm Tin Loose Piece Terminals RING #4 5/16 Ring and Spade Tongue Terminals CONN RING 4 AWG # 5/16 SOLIS Ring terminal, SOLISTRAND, M8, 4 AWG Ring Tongue Terminal 4AWG 33.38mm 16.66mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = SOLISTRANDBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR,
EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B CRIMP TERMINAL, RING, M8, PK25 TERMINAL, RING TONGUE, 5/16IN, CRIMP Terminal,RingTongue,4AWG,StudSz5/16 Ring terminal; M6; 21mm2; crimped; for cable; non-insulated; 8.3mm Ring cable lug, blank 8.3 mm 16.8...26.6 mm², 33470, TE Connectivity TE Connectivity SOLISTRAND 系列 非绝缘 镀锡触芯 环形压接端子 , M8 螺栓 TERMINAL,SOLIS R 4 5/16 |
| Category |
Business
| Product | Ring Terminals | Product Category | Terminals |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | Rad Hardened | No |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Approval Agency Marking | No | ||
Electrical
| Core Type | Closed Barrel | Drive Type | ring terminal |
Mechanical
| Color | Not Required | Depth | 16.66 mm |
| Shape | RING-048 | Finish | Tin |
| Weight | 0.22 | Plating | Tin |
| Material | Copper | Packaging | Bulk |
| Thickness | 1.78 [0.070] | Cable Type | Regular Wire |
| Heavy Duty | No | Insulation | Not Insulated |
| Wire Gauge | 4 AWG | Body Finish | SOLISTRAND |
| Termination | Crimp | Body Material | Copper |
| Contact Shape | Ring Tongue | Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 8 mm | Terminal Type | Circular |
| Angle of Throw | Straight | Connector Type | :Ring Tongue |
| Contact Finish | Tin | Mounting Style | for cable |
| Plating - Body | Tin | Bundle Diameter | 7.52 mm |
| Connector Style | Straight | Contact Material | Copper |
| Ferrule Material | non-insulated | Insulation Color | :(Not Available) |
| Length - Overall | 1.314" (33.38mm) | Material - Blade | Copper |
| Package Quantity | Loose Piece | Primary Material | Ring |
| Diameter - Inside | 8.3mm | Insulation Height | Non-Insulation Support |
| Termination Style | Crimp | Color - Connectors | :Tin |
| Insulation Material | Non-Insulated | Width - Outer Edges | 0.656" (16.66mm) |
| Material - Insulation | :Uninsulated | Mounting Hole Diameter | M6 |
| Supplier Device Package | SOLISTRAND | Wire Gauge or Range - AWG | 33,100 â 52,600 |
| Wire Gauge or Range - mm2 | 21.00² [4] | Contact Material - Plating | tinned |
| Diameter - Outside, Non-Expanded | :6.7mm | ||
Product Info
| Spg | 1 | Type | Ring Tongue Terminal |
| Gender | Female | Series | 347 |
| Features | Brazed Seam, Serrated Termination | CAD Drawing | 3D CAD Model |
| Manufacturer | AMP | Number of Units | 1 |
Environmental
| Operating Temperature | :170°C | ||
Documents & Media
Similar Parts
33470
TE Connectivity AMP Connectors
Ring Tongue Terminal 4AWG 33.38mm 16.66mm Tin Loose Piece Terminals RING #4 5/16 Ring and Spade Tongue Terminals CONN RING 4 AWG # 5/16 SOLIS Ring terminal, SOLISTRAND, M8, 4 AWG Ring Tongue Terminal 4AWG 33.38mm 16.66mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = SOLISTRANDBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B CRIMP TERMINAL, RING, M8, PK25 TERMINAL, RING TONGUE, 5/16IN, CRIMP Terminal,RingTongue,4AWG,StudSz5/16 Ring terminal; M6; 21mm2; crimped; for cable; non-insulated; 8.3mm Ring cable lug, blank 8.3 mm 16.8...26.6 mm², 33470, TE Connectivity TE Connectivity SOLISTRAND 系列 非绝缘 镀锡触芯 环形压接端子 , M8 螺栓 TERMINAL,SOLIS R 4 5/16
601075
te connectivity / amp

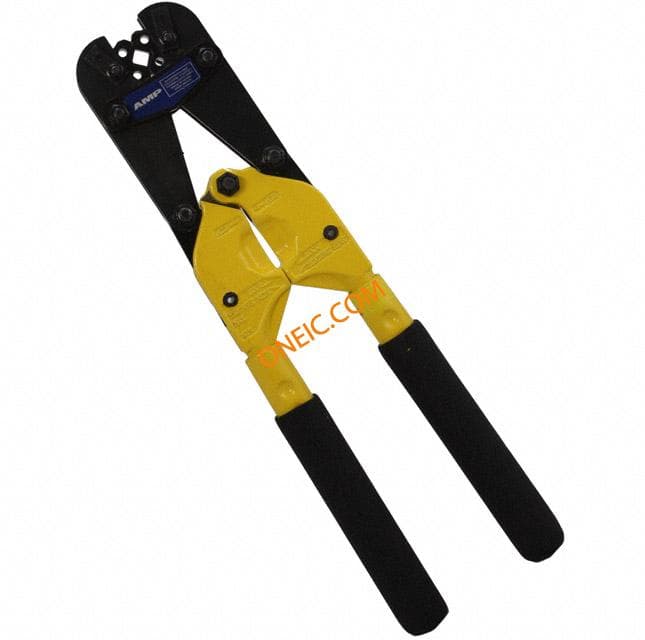

BANTAM ROTA-CRIMP TOOL Crimpers BANTAM ROTA-CRIMP TOOL TOOL HAND CRIMP ROTA-CRIMP Rota crimp tool-AMP solistrand terminal Bantam Rota-Crimp Tool Rota-Crimp Hand Tools HAND TOOL, BANTAM ROTARY CRIMP Rotacrimptool-AMPsolistrandterminal CRIMPTOOL TE Connectivity Bantam ROTA-CRIMP 系列 SOLISTRAND Crimp Terminals and Splices 压接工具 , 适用于6.7 → 60.5 mm² 线规格
