点击放大查看

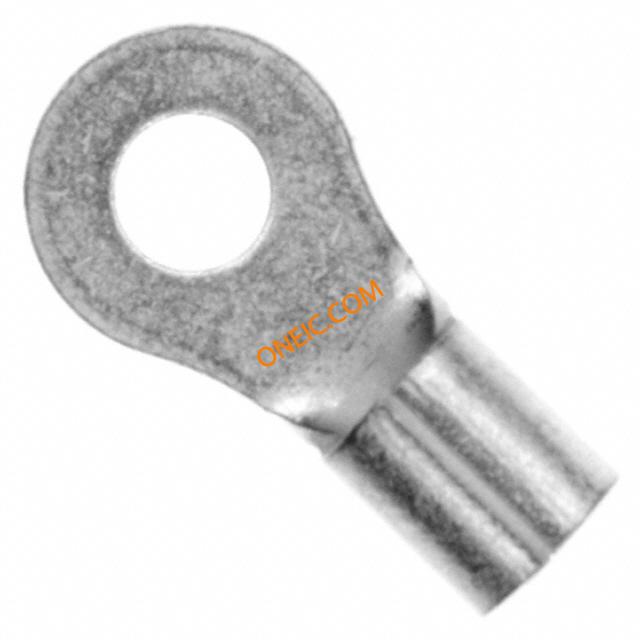

32994
| Manufacturer | |
| Description | Ring Tongue Terminal 10-12AWG 19.43mm 9.53mm Tin Loose Piece Terminals RING TONGUE 12-10 8 Ring and Spade Tongue Terminals CONN RING 10-12 AWG #8 SOLIS Ring terminal, SOLISTRAND, M4, 12-10 AWG Ring Tongue Terminal 10-12AWG 19.43mm 9.53mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = SOLISTRANDBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR,
EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING TONGUE, #8, CRIMP CRIMP TERMINAL, RING, M4, PK100 Terminal,RingTongue,12-10AWG,StudSz8 Ring terminal; M4; 3÷6mm2; crimped; for cable; non-insulated Ring Terminal 19.43 mm metallic, 3...6 mm², 12...10 AWG, SOLISTRAND, 32994, TE Connectivity TE Connectivity SOLISTRAND 系列 非绝缘 镀锡触芯 环形压接端子 , M4 螺栓 TERMINAL,SOLIS R 12-10 8 |
| Category |
Business
| Product | Ring Terminals | Other Names | A0927 |
| Product Category | Terminals | Standard Package | Bulk |
| Factory Pack Quantity | 500 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366910 |
| Rad Hardened | No | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Approval Agency Marking | No |
Electrical
| Core Type | Closed Barrel | Drive Type | ring terminal |
Mechanical
| Color | Not Required | Depth | 9.53 mm |
| Shape | RING-048 | Finish | Tin |
| Weight | 0.721 | Material | Copper |
| Packaging | Bulk | Thickness | 0.99 [0.039] |
| Cable Type | Regular Wire | Heavy Duty | No |
| Insulation | Not Insulated | Screw Size | 8 |
| Wire Gauge | 10-12 AWG | Termination | Crimp |
| Body Material | Copper | Contact Shape | Ring Tongue |
| Mounting Type | Free Hanging (In-Line) | Stud/Tab Size | 4.16 mm |
| Terminal Type | Circular | Angle of Throw | Straight |
| Connector Type | :Ring Tongue | Contact Finish | Tin |
| Mounting Style | for cable | Plating - Body | Tin |
| Bundle Diameter | 3.28 mm | Connector Style | Straight |
| Width - Overall | 0.375" | Contact Material | Copper |
| Ferrule Material | non-insulated | Insulation Color | :Uninsulated |
| Length - Overall | 0.765" (19.43mm) | Package Quantity | Loose Piece |
| Primary Material | Ring | Diameter - Inside | 4.34mm |
| Insulation Height | Non-Insulation Support | Termination Style | Crimp |
| Color - Connectors | :Tin | Insulation Material | Not Insulated |
| Width - Outer Edges | 0.375" (9.53mm) | Material - Insulation | :Uninsulated |
| Mounting Hole Diameter | M4 | Supplier Device Package | SOLISTRAND |
| Wire Gauge or Range - AWG | 5,180 â 13,100 | Wire Gauge or Range - mm2 | 3.00-6.00² [12-10] |
| Contact Material - Plating | tinned | Diameter - Outside, Non-Expanded | :3.3mm |
Product Info
| Spg | 1 | Type | Ring Tongue Terminal |
| Gender | Female | Series | 329 |
| Features | Brazed Seam, Serrated Termination | Manufacturer | AMP |
| Number of Units | 1 | ||
Environmental
| Operating Temperature | :170°C | ||
