326861
| Manufacturer | |
| Description | Spade Tongue Terminal 16-22AWG 19.13mm 7.54mm Tin Loose Piece Terminals PIDG SPADE 22-16 6 BULK Ring and Spade Tongue Terminals CONN SPADE 16-22 AWG #6 RED PIDG Spade terminal, PIDG,red,AWG 22-16, M3.5 Spade Tongue Terminal 16-22AWG 19.13mm 7.54mm Tin Loose Piece Product Highlights:Terminal Shape = Spade TongueReceptacle Style = StraightBody Style = PIDGBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR,
EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B PIDGSPD22-16COMM22-18MIL6 TE Connectivity PIDG 系列 红色 绝缘 压接铲形连接器 , M3.5 螺栓 PIDG SPD 22-16 COMM 22-18MIL 6 |
| Category |
Business
| Product | Fork Terminals | Product Category | Terminals |
| Standard Package | Bulk | Factory Pack Quantity | 1000 |
Compliance
| RoHS | RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Approval Agency Marking | No |
Electrical
| Voltage - Max | 300 | Voltage Rating | 300 VAC |
| Voltage - Supply | 300 | ||
Mechanical
| Color | Red | Shape | SPADE-020 |
| Width | 7.54mm | Finish | Tin |
| Weight | .703 | Material | Copper |
| Packaging | Bulk | Cable Type | Regular Wire |
| Heavy Duty | No | Insulation | Insulated |
| Screw Size | 6 | Wire Gauge | 16-22 AWG |
| Termination | Crimp | Contact Shape | Spade Tongue |
| Mounting Type | Free Hanging (In-Line) | Stud/Tab Size | 3.5 mm |
| Terminal Type | Standard | Angle of Throw | Straight |
| Cable Material | Solid or Stranded | Contact Finish | Tin |
| Terminal Style | Straight | Connector Style | Straight |
| Width - Overall | 0.297" | Contact Material | Copper |
| Length - Overall | 0.753" (19.13mm) | Package Quantity | Loose Piece |
| Primary Material | Fork | Insulation Height | Insulation Support |
| Termination Style | 叉形舌片 | Color - Connectors | Red |
| Insulation Diameter | 3.56 [.140] Max. | Insulation Material | Nylon |
| Width - Outer Edges | 0.297" (7.54mm) | Length - Termination | 0.550" (13.97mm) |
| Material - Insulation | Polyamide (PA), Nylon | Tongue Inside Opening | 0.84 [0.033] |
| Thread/Screw/Hole Size | M3.5 | Supplier Device Package | PIDG |
| Support Panel Thickness | Insulation Support | Wire Gauge or Range - AWG | 509 â 3,260 |
| Wire Gauge or Range - mm2 | 0.30-1.40² [22-16] | Diameter - Outside, Non-Expanded | 3.56 mm [ .14 in ] |
| Length - Ring Center to Termination | 0.203" (5.16mm) | ||
Product Info
| Type | Spade Tongue Terminal | Gender | Female |
| Series | 326 | Features | Serrated Termination |
| Sealable | 否 | Check Slot | 否 |
| Manufacturer | AMP | ||
Environmental
| Operating Temperature | 105 | ||
Documents & Media
Similar Parts
326861
TE Connectivity AMP Connectors
Spade Tongue Terminal 16-22AWG 19.13mm 7.54mm Tin Loose Piece Terminals PIDG SPADE 22-16 6 BULK Ring and Spade Tongue Terminals CONN SPADE 16-22 AWG #6 RED PIDG Spade terminal, PIDG,red,AWG 22-16, M3.5 Spade Tongue Terminal 16-22AWG 19.13mm 7.54mm Tin Loose Piece Product Highlights:Terminal Shape = Spade TongueReceptacle Style = StraightBody Style = PIDGBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B PIDGSPD22-16COMM22-18MIL6 TE Connectivity PIDG 系列 红色 绝缘 压接铲形连接器 , M3.5 螺栓 PIDG SPD 22-16 COMM 22-18MIL 6
217202-1
te connectivity / amp

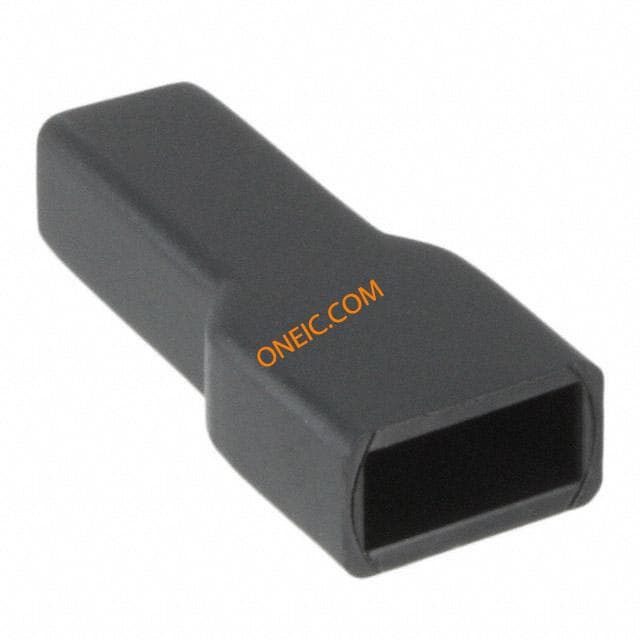

Terminals Tool Die Set Pneumatic Crimping Head Crimpers 626 T HD CRIMPER Hand Tools 626 T HD CRIMPER T-HEAD CRIMPER NORM CLOSED 626 T HD CRIMPER,NORM CLOSED
