1-1971776-5
| Manufacturer | |
| Description | 2x5 plug housing Key A nat 2X5 PLUG HOUSING KEY A NAT Male Housing Pitch6 mm Poles 2 x 5 Multi row / Free hanging/cable mount Power Triple Lock, 1-1971776-5, TE Connectivity PTL 2X5 PLUG HSG STD TEMP KEY A NAT |
| Category |
Business
| Other Names | A117182 | Standard Pack | 1,100 |
| Standard Package | 1,100 | ||
Compliance
| RoHS | Not applicable / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | Standard Number | UL |
| UL Flammability Rating | UL 94V-0 | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 600 | Number of Poles | 2 x 5 |
| Voltage - Supply | 600 | Frequency - Center | 带有 |
| Connector Impedance | 压接 | Current Rating (Max) | <20 A |
Mechanical
| Color | Natural | Pitch | 0.236" (6.00mm) |
| Packaging | Bulk | Body Color | Natural |
| Row Spacing | 0.319" (8.10mm) | Contact Type | Female Blade Socket |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Plug |
| Contact Finish | Without | Fastening Type | Latch Holder |
| Number of Pins | 10 | Number of Rows | 2 |
| Package / Case | Plug | Shell Material | 插头 |
| Connector Style | Multi row | Housing Material | Glass fibre (GF) |
| Panel Mount Type | 不带 | Termination Style | 母端 |
| Color - Connectors | natural | Contact Termination | Crimp |
| Number of Positions | 10 | Compatible Shell Size | CPA, 母端外壳, 母端（插座）端子, 端子锁定片 |
| Contact Layout, Typical | 矩阵 | ||
Product Info
| Note | Contacts Not Provided | Series | Power Triple Lock |
| Key Type | A | Product Type | 护套 |
| Connection Method | Wire-Wire | Output Configuration | 直式 |
| Application Specifics | Power | ||
Environmental
| Operating Range | 不密封 | Temperature - Test | 标准件 - 非灼热丝 |
| Operating Temperature | -55...+105 °C | ||
Similar Parts
1971785-1
TE Connectivity
CONN CONT RCPT 22AWG Headers & Wire Housings 22 AWG PhosBr Rcpt Contact Terminal 1971785-1 Contact SKT Crimp ST Cable Mount CONTACT, SOCKET, 22AWG, CRIMP CONTACT, SOCKET, 22 AWG, CRIMP Contact;Socket;Crimp;22AWG;PowerTripleLock;TinoverCopperAlloy Crimp contact, 5 A, 22 AWG, 1971785-1, TE Connectivity TE Connectivity Power Triple Lock 系列 母 压接触点, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 20 - 22 AWG
1971785-2
TE Connectivity/AMP Brand
Receptacle contact, 22 Awg Headers & Wire Housings 22 Awg Receptacle contact RECEPTACLE CONTACT 22 AWG Power Triple Lock Tin Plated 20 - 22 AWG Crimp Socket Receptacle Crimp contact, 5 A, 22 AWG, 1971785-2, TE Connectivity TE Connectivity Power Triple Lock 系列 母 压接接线端子, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 20 - 22 AWG
1971789-1
TE Connectivity/AMP Brand
CPA ConnectorPositionAssurance(CPA);PowerTripleLockAccessory;600VAC/600VDC; Connector locking, 7.6 mm, red, 1971789-1, TE Connectivity
1-1971774-5
TE Connectivity/AMP Brand
2x5 cap housing free hanging Key A nat 2X5 CAP HOUSING FREE HANGING KEY Female Housing Pitch6 mm Poles 2 x 5 Multi row / Free hanging/cable mount Power Triple Lock, 1-1971774-5, TE Connectivity PTL 2X5 CAP FREE HANG STD TEMP KEY A NAT
1-1971775-5
TE Connectivity/AMP Brand
2x5 cap housing panel mount Key A nat 2X5 CAP HOUSING PANEL MOUNT KEY Female Housing Pitch6 mm Poles 2 x 5 Multi row / for panel mount Power Triple Lock, 1-1971775-5, TE Connectivity PTL 2X5 CAP PANEL MT STD TEMP KEY A NAT

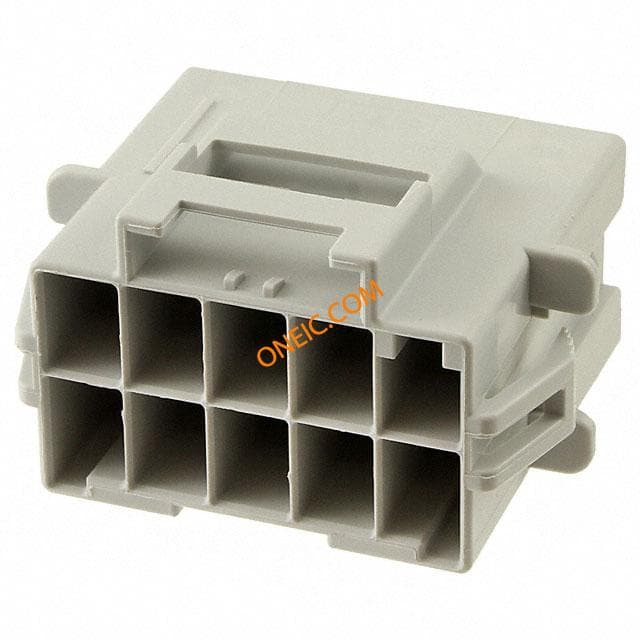

5-1971775-5
TE Connectivity
Headers & Wire Housings 2x5 cap housing lgr panel mount Key A CONN RCPT HOUSING 10POS 6MM PTL 2X5 CAP PANEL MT HIGH TEMP KEY A LGR

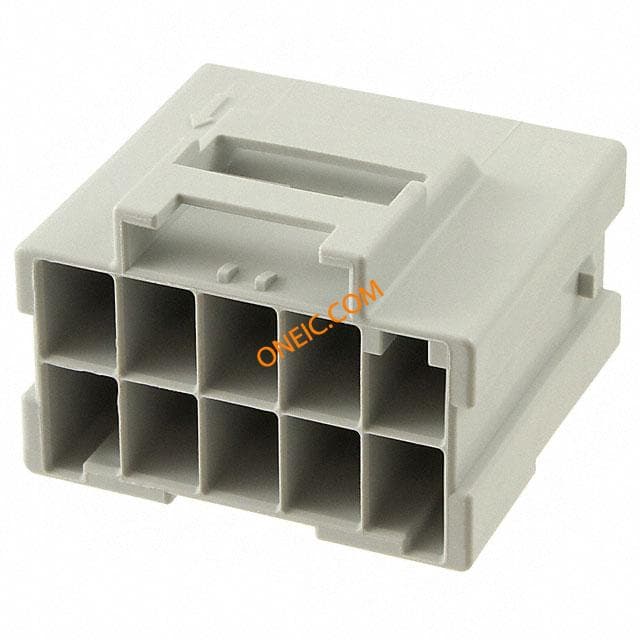

5-1971774-5
