1-1971775-5
| Manufacturer | |
| Description | 2x5 cap housing panel mount Key A nat 2X5 CAP HOUSING PANEL MOUNT KEY Female Housing Pitch6 mm Poles 2 x 5 Multi row / for panel mount Power Triple Lock, 1-1971775-5, TE Connectivity PTL 2X5 CAP PANEL MT STD TEMP KEY A NAT |
| Category |
Business
| Other Names | A117180 | Standard Pack | 800 |
| Standard Package | 800 | ||
Compliance
| RoHS | Not applicable / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | Standard Number | UL |
| UL Flammability Rating | UL 94V-0 | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 600 | Number of Poles | 2 x 5 |
| Voltage - Supply | 600 | Frequency - Center | 带有 |
| Connector Impedance | 压接 | Current Rating (Max) | <20 A |
Mechanical
| Color | Natural | Pitch | 0.236" (6.00mm) |
| Packaging | Bulk | Body Color | Natural |
| Row Spacing | 0.319" (8.10mm) | Size - Body | 1 – 2 mm [ .039 – .079 in ] |
| Contact Type | Tab | Mounting Type | Panel Mount, Snap-In |
| Connector Type | Receptacle | Contact Finish | Without |
| Fastening Type | Latch Lock | Number of Pins | 10 |
| Number of Rows | 2 | Package / Case | Plug |
| Shell Material | 母端, 母端 | Connector Style | Multi row |
| Height (Inches) | 23.05 | Housing Material | Glass fibre (GF) |
| Panel Mount Type | 带有 | Termination Style | 公端 |
| Color - Connectors | natural | Contact Termination | Crimp |
| Number of Positions | 10 | Compatible Shell Size | CPA, 公端端子, 插头护套, 端子锁定片 |
| Contact Layout, Typical | 矩阵 | 1st Connector Mounting Type | Panel |
Product Info
| Note | Contacts Not Provided | Series | Power Triple Lock |
| Key Type | A | Product Type | 护套 |
| Connection Method | Wire-Panel | Output Configuration | 直式 |
| Application Specifics | Power | ||
Environmental
| Operating Range | 不密封 | Temperature - Test | 标准件 - 非灼热丝 |
| Operating Temperature | -55...+105 °C | ||
Similar Parts
1971786-1
TE Connectivity
CONN TAB 22AWG Triple Lock tab Contact 22 AWG Headers & Wire Housings 22 AWG Brass Pin Contact Terminal 1971786-1 Contact SKT Crimp ST Cable Mount CONTACT, PIN, 22AWG, CRIMP CONTACT, PIN, 22 AWG, CRIMP Contact;Pin;Crimp;22AWG;PowerTripleLock;TinoverCopperAlloy Crimp contact, 5 A, 22 AWG, 1971786-1, TE Connectivity TE Connectivity Power Triple Lock 系列 公 压接触点, 压接, 镀锡触点 PTL TAB CONTACT, 20 - 22 AWG
1971786-2
TE Connectivity/AMP Brand
Tab contact, 22 Awg Headers & Wire Housings 22 Awg Tab contact TAB CONTACT 22 AWG Power Triple Lock Tin Plated 20 - 22 AWG Crimp Tab Contact Crimp contact, 6.2 A, 22 AWG, 1971786-2, TE Connectivity TE Connectivity Power Triple Lock 系列 公 压接接线端子, 压接, 镀锡触点 PTL TAB CONTACT, 20 - 22 AWG

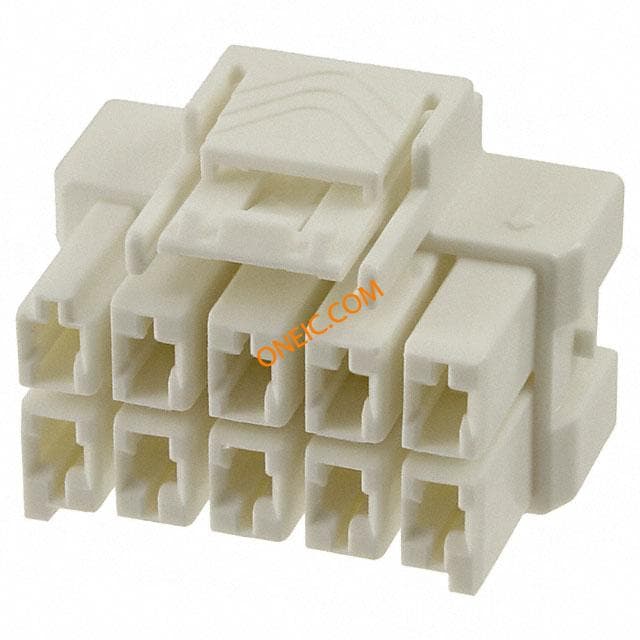

1-1971776-5
