B66398A2000X

Manufacturer	TDK Electronics AG
Description	BUEGEL ETD59 Coil Former Stainless Spring Steel, 0.4mm, 24 Pin FERRITE CORES Yoke Mounting Kit For Use With B66398 Ferrite Cores & Accessories YOKE ETD59 CLIP, ETD59 FERRITE CORE YOKE ETD59/31/22CLIP
Category	Connector SolutionsPower Entry ConnectorsPower Entry Connectors

对参数有疑问？问 AI 助手

Business

Product	Hardware & Accessories	Part # Aliases	B66398A2000X000
Standard Package	40	Factory Pack Quantity	40

Compliance

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
EU RoHS	Compliant	Tariff No	85049018

Electrical

Core Size	ETD 59 x 31 x 22	Tolerance	- %
Connector Impedance	:Mounting Clip

Mechanical

Depth	:22.1mm	Width	:65.2mm
Length	:12.9mm	Weight	0.006
Packaging	Bulk	Width - Overall	22.1 mm
Length - Overall	65.2 mm	Diameter - Outside, Non-Expanded	12.9 mm

Product Info

Product Type	Yoke	Accessory Type	Yoke
For Use With/Related Products	B66398

Documents & Media

PDF Document

80926.pdf

Similar Parts

B66397GX197

tdk epcos

Ferrite Core ETD Core 59.8mm 22.1mm 31.2mm SMPS Transformer FERRITE CORES Ferrite Cores & Accessories ETD59/31/22 N97OL FERRITE CORE, ETD, N97 ETD59/31/22N975500+30%-20%

$22.9588

Details

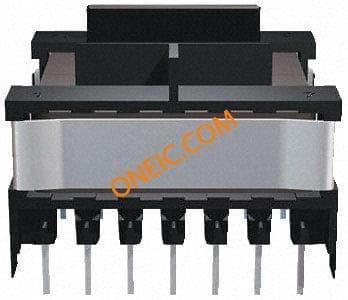

B66398W1024T1
