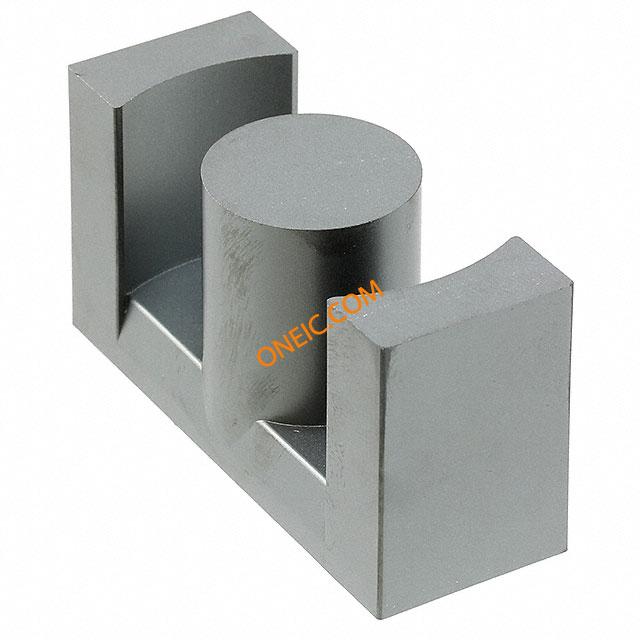

B66397GX197

Manufacturer	TDK Electronics AG
Description	Ferrite Core ETD Core 59.8mm 22.1mm 31.2mm SMPS Transformer FERRITE CORES Ferrite Cores & Accessories ETD59/31/22 N97OL FERRITE CORE, ETD, N97 ETD59/31/22N975500+30%-20%
Category	Circuit Protection SolutionsRFI and EMI Shielding MaterialsFerrite Cores and Beads

对参数有疑问？问 AI 助手

Business

Product	Ferrite Cores	Part # Aliases	B66397G0000X197
Standard Package	40	Factory Pack Quantity	40

Compliance

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
Tariff No	85049011

Electrical

Core Size	ETD 59 x 31 x 22	Core Type	:ETD
Tolerance	- %	B Value Tolerance	:30%
Inductance Factor (Al)	:5500nH

Mechanical

Depth	22.1 mm	Width	:59.8mm
Height	31.2 mm	Length	:31.2mm
Weight	0.13	Packaging	Bulk
Material Finish	:N97	Width - Overall	22.1 mm
Length - Overall	59.8 mm	Diameter - Outside, Non-Expanded	31.2 mm

Product Info

Type	ETD Core	Series	:ETD
Applications	SMPS Transformer	Product Type	ETD Core
RF Family/Standard	B66397	Other Specifications	:139mm

Documents & Media

PDF Document

80926.pdf
