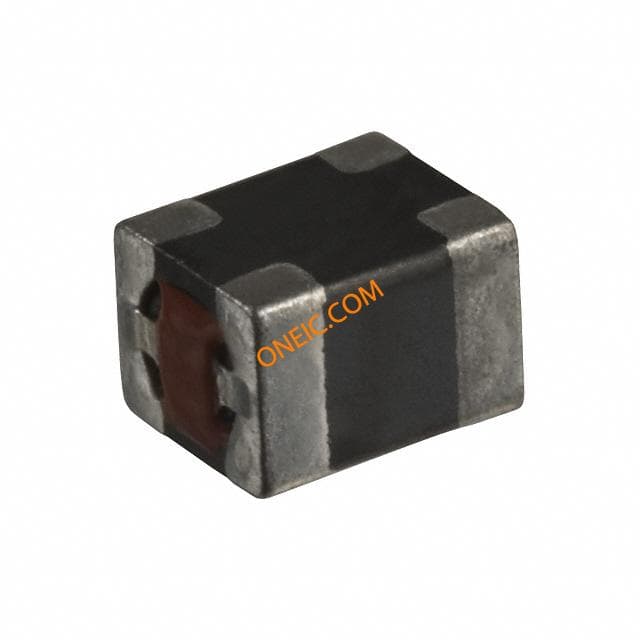

ACM3225-601-2P-T001
| Manufacturer | |
| Description | EMI Filters Common Mode Chokes Common Mode Chokes Dual 600Ohm 100MHz 1A 200mOhm DCR SMD T/R ACM3225 600R 200mA 2-line CHOKE COMMON MODE 600 OHM SMD CHOKE, COMMON MODE, 2X600Z |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 1000 | Unit Pack | 1000 |
| Other Names | 445-2035-1 | Standard Package | 1,000 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85045020 | Automotive | NO |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Current | 1A | Core Type | :Common / Asymmetrical |
| Frequency | 100M | Impedance | 600X2Ohm |
| Tolerance | 25% | Inductance | L X2µH |
| Filter Type | Power Line | Range deg/s | :TDK - ACM Series |
| Test Frequency | 100MHz | Voltage Rating | :50V |
| Current - Output | 200mA | Current Rating - DC | :1A |
| DC Resistance (DCR) | 0.2Ohm | Current Rating (Max) | :1A |
| Impedance @ Frequency | :600ohm | DC Resistance (DCR) (Max) | :0.2ohm |
| Frequency - Self Resonant | :100MHz | Current - DC Forward (If) (Max) | 1 |
| Resistance - Initial (Ri) (Min) | 10M | ||
Mechanical
| Size | 1210Inch | Depth | 2.7 |
| Width | 2.5mm | Height | 2.3mm |
| Length | 3.2mm | Weight | 0.000087 |
| Packaging | Tape and Reel | Height (Max) | 0.091" (2.30mm) |
| Nominal I.D. | 50VDC | Core Material | :Ferrite |
| Mounting Type | SMD | Number of Pins | :4 |
| Package / Case | 1210 (3225 Metric), 4 Lead | Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Dimensions - Overall | :3.2mm x 2.5mm x 2.3mm | ||
Product Info
| Type | Power Line | Design | CAN-BUS |
| Matchcode | INDKCANBUS | Technology | 2-LINE |
| Configuration | Dual | Number of Lines | 2 |
| Standard Leadtime | 99 weeks | Assembly Configuration | Surface Mount |
Environmental
| Temperature - Test | -25°C | Operating Temperature | -25°C ~ 85°C |
Documents & Media
PDF Document
PDF Document
