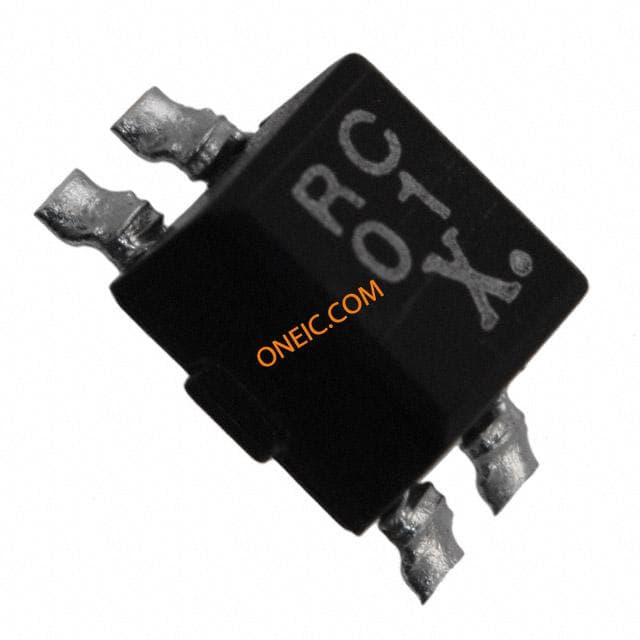

CM04RC01T
| Manufacturer | |
| Description | Ind Common Mode Choke 800Ohm 100MHz Ferrite 1.5A Embossed T/R CHOKE COMMON MODE 800OHMS SMD Common Mode Chokes Dual 800Ohm 100MHz 1.5A 60mOhm DCR SMD Embossed T/R |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 587-2702-1 | Standard Package | Tape & Reel |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Current | 1.5A | Impedance | 800 Ohm |
| Filter Type | Power Line | DC Resistance (DCR) | 60 mOhm Max |
| Current Rating (Max) | 1.5 A | Resistance - Initial (Ri) (Min) | 60 mOhm |
Mechanical
| Depth | 9.5 mm | Height | 4.7 mm |
| Packaging | Tape & Reel (TR) | Height (Max) | 0.185" (4.70mm) |
| Core Material | Ferrite | Mounting Type | Surface Mount |
| Package / Case | 5.4 X 9.5 X 4.7 | Size / Dimension | 0.205" L x 0.354" W (5.20mm x 9.00mm) |
Product Info
| Type | Common Mode Choke | Number of Lines | 2 |
Environmental
| Operating Temperature | -25°C ~ 105°C | ||
