TB5M
| Manufacturer | |
| Description | XLR Connectors 5P PANEL MALE Conn Mini XLR Connector M 5 POS Solder Cup ST Panel Mount 5 Terminal 1 Port CONN RCPT 5POS PNL MNT PIN MINI PLUG, TINI, Q-G, PANEL, 5POLE DINPlug;Receptacle;5;Male;125;5A;0.010Ohms(Max.);CopperAlloy Mini XLR 5 Panel-mount male receptacle Tini-Q-G® / TB Soldering Connection nickel-plated, TB5M, Switchcraft |
| Category |
Business
| Lead Time | 20 Days | Subcategory | Connector Audio and Video |
| Product Category | XLR Connectors | Standard Package | 1 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Voltage Rating | 125VAC | Voltage - Supply | Mini (Tiny) XLR |
| Voltage - Working | :125V | Contact Resistance | :10mohm |
| Current Rating (Max) | 4A | Voltage - Input (Min) | 125VAC |
Mechanical
| Color | Black | Weight | 0.008 |
| Diameter | 11.9 | Material | :Brass, Nickel Plated |
| Packaging | Bulk | Orientation | Keyed |
| Termination | Solder Cup | Mounting Type | Panel Mount |
| Shell Plating | Nickel | Connector Type | Receptacle, Male Pins |
| Contact Finish | Silver | Fastening Type | Latch Lock |
| Mounting Style | Chassis (Panel) | Plating - Body | :Nickel |
| Material - Body | :Metal | Contact Material | Copper Alloy |
| Housing Material | Copper Alloy | Length - Overall | 17.9 |
| Termination Style | Solder | Color - Connectors | :Black |
| Number of Contacts | 5 | Panel Cutout Shape | :10.7mm |
| Contact Termination | :Solder | Number of Positions | 5 |
| Shell Size - Insert | Mini XLR | Shell Material, Finish | Copper, Nickel Plated |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Type | Mini XLR Connector | Gender | M |
| Series | TB | Features | Mounting Hardware |
| Product Type | Connectors | Number of Ports | 1 |
Environmental
| Operating Temperature | -55°C ~ 85°C | ||
Documents & Media
Similar Parts

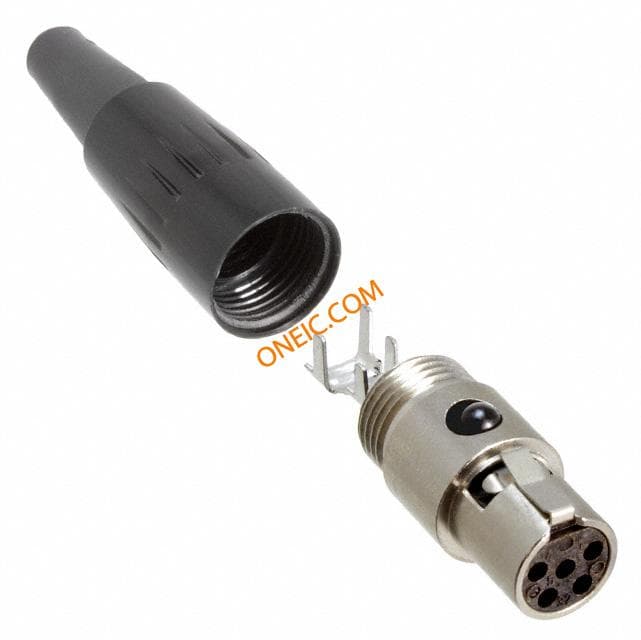

TA5FX
Switchcraft
XLR Connectors 5P PLUG FEMALE Conn Mini XLR Connector F 5 POS Solder ST Cable Mount 5 Terminal 1 Port CONN PLUG CORD MINI 5POS FEMALE SOCKET, TINI, Q-G, IN-LINE, 5POLE DINPlug;Plug;5;Female;125;5A;510000Megohms(Min.)@500VDC Mini XLR 5 Cable socket / straight Tini-Q-G® / TA black and silver, TA5FX, Switchcraft Switchcraft Tini QG系列 5路 直向 电缆安装 插座, 4A
TA5MX
Switchcraft
XLR Connectors 5P PLUG MALE Conn Mini XLR Connector M 5 POS Solder ST Cable Mount 5 Terminal 1 Port CONN RCPT CORD MINI 5POS MALE Switchcraft Tini QG Series 5 Way Straight Male Cable Mount Miniature Connector, 4A PLUG, TINI, Q-G, IN-LINE, 5POLE DINPlug;Plug;5;Male;125;5A;510000Megohms(Min.)@500VDC(Initial) Switchcraft Tini QG系列 5路 直向 电缆安装 插头, 4A

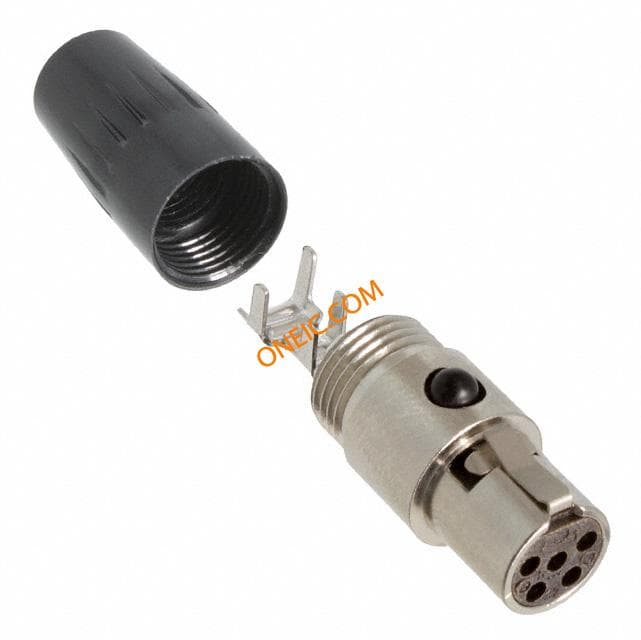

TA5FLX
