TA5FX
| Manufacturer | |
| Description | XLR Connectors 5P PLUG FEMALE Conn Mini XLR Connector F 5 POS Solder ST Cable Mount 5 Terminal 1 Port CONN PLUG CORD MINI 5POS FEMALE SOCKET, TINI, Q-G, IN-LINE, 5POLE DINPlug;Plug;5;Female;125;5A;510000Megohms(Min.)@500VDC Mini XLR 5 Cable socket / straight Tini-Q-G® / TA black and silver, TA5FX, Switchcraft Switchcraft Tini QG系列 5路 直向 电缆安装 插座, 4A |
| Category |
Business
| Product Category | XLR Connectors | Standard Package | 1 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Voltage Rating | 125VAC | Voltage - Supply | Mini (Tiny) XLR |
| Voltage - Working | :125V | Contact Resistance | :10mohm |
| Current Rating (Max) | 4A | Voltage - Input (Min) | 125VAC |
Mechanical
| Length | :48.3mm | Weight | 0.008 |
| Diameter | 10.5 | Material | :Brass, Nickel Plated |
| Packaging | Bulk | Orientation | Keyed |
| Termination | Solder | Mounting Type | Cable Mount |
| Shell Plating | Nickel | Connector Type | Plug, Female Sockets |
| Contact Finish | Silver | Fastening Type | Latch Lock |
| Mounting Style | Cable | Plating - Body | :Nickel |
| Material - Body | :Metal | Contact Material | Copper Alloy |
| Housing Material | Zinc Die Cast | Length - Overall | 48 |
| Termination Style | Solder | Color - Connectors | :Black |
| Number of Contacts | 5 | Contact Termination | :Solder |
| Number of Positions | 5 | Shell Size - Insert | Mini XLR |
| Shell Material, Finish | Copper, Nickel Plated | 1st Connector Mounting Type | :Cable |
| Diameter - Outside, Non-Expanded | :3mm | ||
Product Info
| Type | Mini XLR Connector | Gender | F |
| Series | TA | Features | Strain Relief |
| Product Type | Connectors | Number of Ports | 1 |
Environmental
| Operating Temperature | -55°C ~ 85°C | ||
Documents & Media
Similar Parts
TA5MLX
Switchcraft
XLR Connectors 5P PLUG MALE Conn Mini XLR Connector M 5 POS Solder ST Cable Mount 5 Terminal 1 Port CONN RCPT CORD MINI 5POS MALE DIN Plug; Straight Male Cord Plug; 510000 Megohms (Min.) @ 500 VDC; 1.5 A CONNECTOR, XLR, PLUG, 5POS DINPlug;StraightMaleCordPlug;510000Megohms(Min.)@500VDC;1.5A
TA5MX
Switchcraft
XLR Connectors 5P PLUG MALE Conn Mini XLR Connector M 5 POS Solder ST Cable Mount 5 Terminal 1 Port CONN RCPT CORD MINI 5POS MALE Switchcraft Tini QG Series 5 Way Straight Male Cable Mount Miniature Connector, 4A PLUG, TINI, Q-G, IN-LINE, 5POLE DINPlug;Plug;5;Male;125;5A;510000Megohms(Min.)@500VDC(Initial) Switchcraft Tini QG系列 5路 直向 电缆安装 插头, 4A

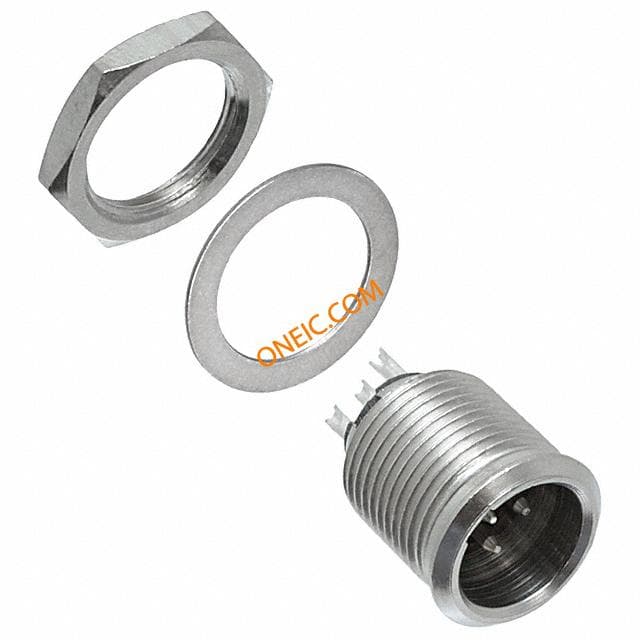

TB5M
