点击放大查看
EN3P5FRAPCX
| Manufacturer | |
| Description | Standard Circular Connector 5P R/A RCB Conn Circular SKT 5 POS Solder RA Thru-Hole 5 Terminal 1 Port Bulk CONN RCPT 5POS FEM R/A PANEL #20 EN3 R/A PCB PANEL MOUNT 5way socket EN3R/APCBPANELMOUNT5waysocket Switchcraft EN3 系列 5路 面板安装 直角 连接器 插头 , 母触点, 卡口式接合 |
| Category |
Business
| Tradename | EN3 | Product Category | Standard Circular Connector |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS non-compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| Voltage Rating | 600 V ac | Current Rating (Max) | 4A |
Mechanical
| Depth | 31.73 mm | Outline | 20.62mm |
| Diameter | 20.62 mm | Packaging | Bulk |
| Cable Exit | No | Shell Size | 20.62mm |
| Orientation | Keyed | Shell Style | Receptacle |
| Termination | Solder | Contact Form | 5Signal |
| Contact Type | 5Signal | Mounting Type | Through Hole |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Fastening Type | Bayonet Lock | Mounting Style | Panel |
| Shell Material | Plastic | Connector Usage | Bayonet |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |
| Termination Rows | 焊接 | Termination Style | Crimp / Solder |
| 1st Contact Gender | SKT | Mating Orientation | Bayonet |
| Number of Contacts | 5 | Number of Positions | 5 |
| Shell Material, Finish | Thermoplastic Polymer, Glass Fiber | ||
Product Info
| Type | Circular | Gender | PL |
| Series | EN3 | DELETED | Compliant |
| Product Type | Connectors | RF Family/Standard | EN3 |
| Output Configuration | Panel Mount, Bulkhead; Through Hole, Right Angle | ||
Environmental
| Seal Rating | IP66, IP68 | Ingress Protection | IP66/68 - Dust Tight, Water Resistant, Waterproof |
Documents & Media
Similar Parts
EN3C5MCKX
Switchcraft
Standard Circular Connector 5 PIN CRIMP CORD PLU CONN PLUG 5POS MALE CORD #20
EN3PQCA
Switchcraft
Standard Circular Connector EN3 PANEL ADAPTER EN3 QUICK DISCONNECT EN3QUICKDISCONNECT
EN3CAP
Switchcraft
Standard Circular Connector PROTECTIVE CAP Connector Accessories Cap CAP DUST WEATHRTIGHT FOR EN3 SRS SEALING CAP CapforEN3miniweathertightconnectorseries Protection cover; EN3 Protective cap, EN3CAP, Switchcraft

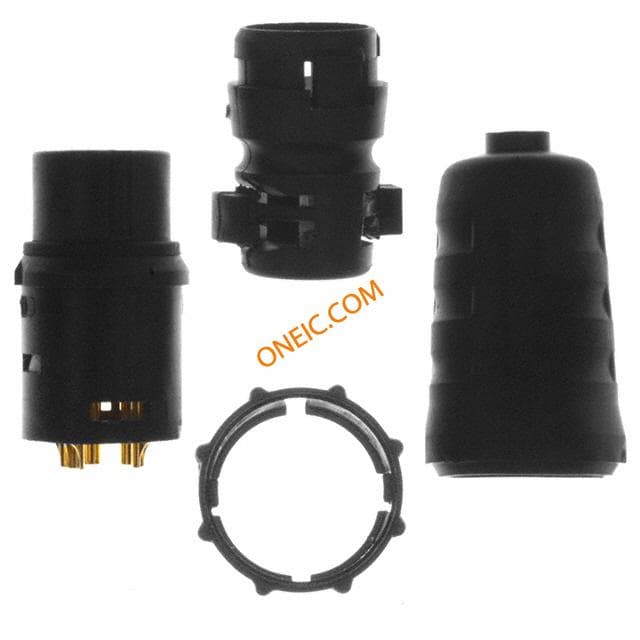

EN3C5MX
