点击放大查看
EN3C5MX
| Manufacturer | |
| Description | Standard Circular Connector 5P MALE CORD TYPE Conn Circular M 5 POS Solder Cup ST Cable Mount 5 Terminal 1 Port Bulk CONN PLUG 5POS MALE CORD #20 CORDCONNECTOR,MALE,WEATHERTIGHT,#20CONTACTS,5PIN |
| Category |
Business
| Tradename | EN3 | Other Names | SC256 |
| Product Category | Standard Circular Connector | Standard Package | 1 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94-V0 | ||
Electrical
| Voltage Rating | 600V | Current Rating (Max) | 7.5A |
Mechanical
| Diameter | 18 | Packaging | Bulk |
| Cable Exit | Yes | Wire Gauge | 20 |
| Orientation | Keyed | Shell Style | Plug |
| Termination | Solder Cup | Contact Type | 5Signal |
| Mounting Type | Cable Mount | Shell Plating | Gold over Nickel |
| Angle of Throw | Straight | Connector Type | Plug, Male Pins |
| Contact Finish | Gold Over Nickel | Fastening Type | Bayonet Lock |
| Contact Material | Copper Alloy | Housing Material | ThermoplasticRubber |
| Length - Overall | 55.9 | Primary Material | Sealed |
| Termination Style | Solder Cup | 1st Contact Gender | M |
| Number of Contacts | 5 | Number of Positions | 5 |
| Shell Material, Finish | Thermoplastic Polymer, Glass Fiber | ||
Product Info
| Type | Circular | Gender | PL |
| Series | EN3 | Features | Cable Clamp |
| Manufacturer | EN3Series | Product Type | Connectors |
| Application Specifics | Commercial | ||
Environmental
| Ingress Protection | IP66/68 - Dust Tight, Water Resistant, Waterproof | ||
Documents & Media
Similar Parts
EN3PH5F20X
Switchcraft
Standard Circular Connector 5 PIN PANEL FEMALE # CONN FEMALE HOUSING 5PIN #20
EN3P5FKX
Switchcraft
Standard Circular Connector SOLDER PANEL MOUNT K CONN RCPT 5POS FEMALE PANEL #20
EN3CLAMPL
Switchcraft
Cable Mounting & Accessories LARGE CABLE CLAMP CABLE CLAMP, LARGE, CABLE CLAMP LARGE CABLECLAMP,LARGE,
EN3L5FCKX
Switchcraft
Standard Circular Connector EN3 INLINE 5PIN FEM. CONN RCPT 5POS FEM IN-LINE #20
EN3P5FCX
Switchcraft
Standard Circular Connector EN3 5 PIN PANEL FEMA CONN RCPT 5POS FEMALE PANEL #20
EN3P5FCKX
Switchcraft
Standard Circular Connector 5 PIN CRIMP PANEL FE CONN RCPT 5POS FEMALE PANEL #20
EN3L5FCX
Switchcraft
Standard Circular Connector 5P FEM IN-LINE TYPE #20 CRIMP CONN RCPT 5POS FEM IN-LINE #20 Conn Circular F 5 POS Crimp ST Cable Mount 5 Terminal 1 Port Bulk

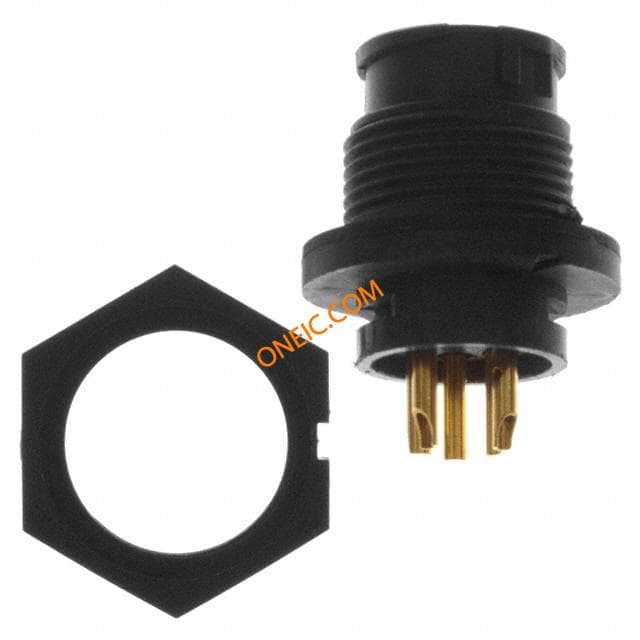

EN3P5FX
