点击放大查看
EN3P3FRAPCX
| Manufacturer | |
| Description | Standard Circular Connector 3P R/A PCB Conn Circular SKT 3 POS Solder RA Thru-Hole 3 Terminal 1 Port Bulk CONN RCPT 3POS FEM R/A PANEL #20 EN3 R/A PCB PANEL MOUNT 3way socket EN3R/APCBPANELMOUNT3waysocket Switchcraft EN3 系列 3路 面板安装 直角 连接器 插头 , 母触点, 卡口式接合 |
| Category |
Business
| Tradename | EN3 | Product Category | Standard Circular Connector |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 600 V ac | Current Rating (Max) | 5A |
Mechanical
| Depth | 31.73 | Outline | 20.62mm |
| Diameter | 20.62 | Packaging | Bulk |
| Cable Exit | No | Shell Size | 20.62mm |
| Orientation | Keyed | Shell Style | Receptacle |
| Termination | Solder | Contact Type | 3Signal |
| Mounting Type | Through Hole | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Fastening Type | Bayonet Lock |
| Mounting Style | Panel | Shell Material | Plastic |
| Connector Usage | Bayonet | Contact Material | Copper Alloy |
| Housing Material | Thermoplastic | Termination Rows | 焊接 |
| Termination Style | Crimp / Solder | 1st Contact Gender | SKT |
| Mating Orientation | Bayonet | Number of Contacts | 3 |
| Number of Positions | 3 | Shell Material, Finish | Thermoplastic Polymer, Glass Fiber |
Product Info
| Type | Circular | Gender | PL |
| Series | EN3 | Product Type | Connectors |
Environmental
| Seal Rating | IP66, IP68 | Ingress Protection | IP66/68 - Dust Tight, Water Resistant, Waterproof |
Documents & Media
Similar Parts
EN3PQCA
Switchcraft
Standard Circular Connector EN3 PANEL ADAPTER EN3 QUICK DISCONNECT EN3QUICKDISCONNECT
EN3C3MKX
Switchcraft
Standard Circular Connector SOLDER CORD PLUG KI CONN PLUG 3POS MALE CORD #20
EN3C3M
Switchcraft
Standard Circular Connector 3C MALE CORD W/#20 Conn Mini Weathertight M 3 POS Solder Cup ST Cable Mount 3 Terminal 1 Port Bulk CONN PLUG 3POS MALE CORD #20 Plug; Connector: circular; EN3; male; PIN:3; internal bayonet; 3A Cable plug EN3, 3-pin 3, EN3C3M, Switchcraft
EN3C3MCX
Switchcraft
Standard Circular Connector 3 POS CORD PLUG CONN PLUG 3POS MALE CORD #20
EN3CAP
Switchcraft
Standard Circular Connector PROTECTIVE CAP Connector Accessories Cap CAP DUST WEATHRTIGHT FOR EN3 SRS SEALING CAP CapforEN3miniweathertightconnectorseries Protection cover; EN3 Protective cap, EN3CAP, Switchcraft

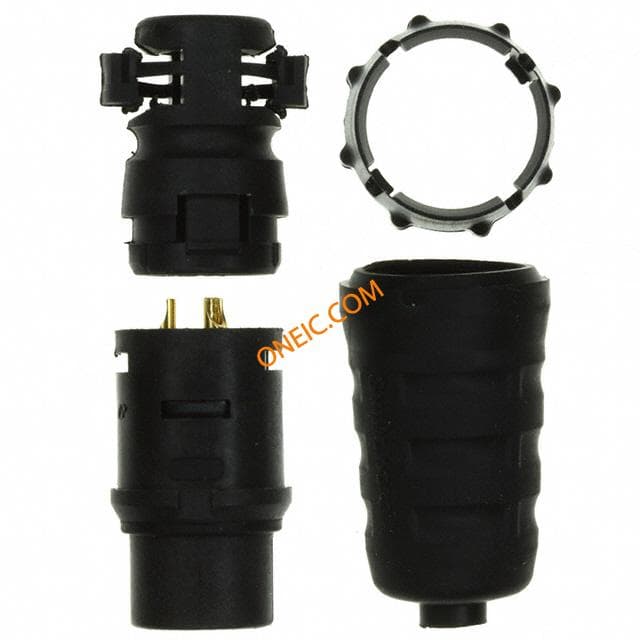

EN3C3MX
Switchcraft
Standard Circular Connector 3C MALE CORD W/#20 Conn Mini Weathertight M 3 POS Solder Cup ST Cable Mount 3 Terminal 1 Port Bulk CONN PLUG 3POS MALE CORD #20 CIRCULAR CONNECTOR, PLUG, 3POS, CABLE CORDCONNECTOR,MALE,WEATHERTIGHT,#20CONTACTS,3PIN

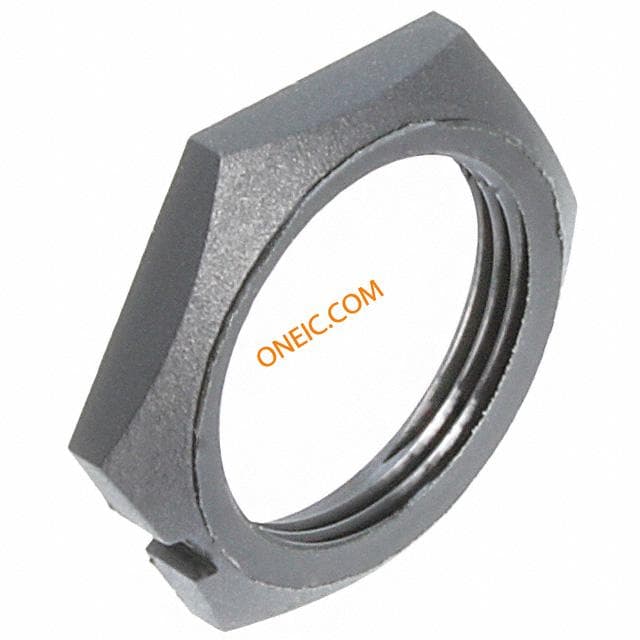

EN3NUT
