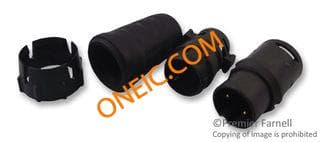

EN3C3M
| Manufacturer | |
| Description | Standard Circular Connector 3C MALE CORD W/#20 Conn Mini Weathertight M 3 POS Solder Cup ST Cable Mount 3 Terminal 1 Port Bulk CONN PLUG 3POS MALE CORD #20 Plug; Connector: circular; EN3; male; PIN:3; internal bayonet; 3A Cable plug EN3, 3-pin 3, EN3C3M, Switchcraft |
| Category |
Business
| Lead Time | 365 Days | Other Names | SC1157 |
| Subcategory | Connector Circular | Product Category | Standard Circular Connector |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Not Compliant |
Electrical
| Voltage Rating | 600V AC | Number of Poles | 3 |
| Current Rating (Max) | 7.5A | Current Rating - Appliance Inlet | 7.5 |
| Voltage - Protection Level (VP) (2416) | IP 68 | ||
Mechanical
| Weight | 6.68 g | Diameter | 17.86 |
| Packaging | Bulk | Cable Exit | No |
| Orientation | Keyed | Shell Style | Plug |
| Termination | Solder Cup | Contact Type | 3Signal |
| Mounting Type | Cable Mount | Shell Plating | Gold over Nickel |
| Cable Diameter | 5.8...9.7mm | Cable End Type | 5...7 mm |
| Connector Type | Plug, Male Pins | Contact Finish | Gold Over Nickel |
| Fastening Type | Bayonet Lock | Mounting Style | for cable |
| Connector Style | straight | Locking Feature | internal bayonet |
| Contact Material | Copper Alloy | Housing Material | Plastic |
| Length - Overall | 39.83 | Package Quantity | 5 |
| Connector - Cable | plug | Termination Style | Solder Cup |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 3 |
| Number of Positions | 3 | 1st Connector Gender | Male |
| Shell Material, Finish | Thermoplastic Polymer, Glass Fiber | Contact Material - Plating | gold plated |
Product Info
| Spg | 5 | Type | Mini Weathertight |
| Series | EN3 | Features | Cable Clamp |
| Product Type | Connectors | Adapter Series | EN3 |
| Number of Units | 1 | ||
Environmental
| Mechanical Life | Obsolete | Ingress Protection | IP66/68 - Dust Tight, Water Resistant, Waterproof |
| Operating Temperature | -40...+65 °C | ||
