点击放大查看
280
| Manufacturer | |
| Description | Phone Connectors 2 COND 1/4 SHIELDED Conn 1/4" Phone Plug M 2 POS Solder ST Cable Mount 2 Terminal 1 Port CONN PLUG PHONE 1/4" 2POS SOLDER Plug; Phone; Solder Lug and Cable Clamp; 0.290 in. (Max.); Copper Alloy Plug,Phone;SolderLugandCableClamp;0.290in.(Max.);CopperAlloy Jack plug Ø6.35 mm nickel-plated 2P, 280, Switchcraft |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | SC1075 | Product Category | Phone Connectors |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Signal Lines | Mono | Number of Poles | 2 |
| Voltage - Supply | 1/4 in | ||
Mechanical
| Color | Silver | Depth | 12.7 mm |
| Diameter | 6.35mm (0.250", 1/4") - Headphone | Packaging | Bulk |
| Shielding | Shielded | Wire Type | Mono |
| Orientation | Vertical | Termination | Solder |
| Housing Color | Silver | Mounting Type | Cable Mount |
| Cable End Type | 7.5 mm | Connector Type | Phone Plug |
| Contact Finish | Tin | Mounting Style | Cable |
| Connector Style | straight | Contact Material | Copper Alloy |
| Housing Material | Brass | Length - Overall | 73.02 |
| Termination Style | Solder | Color - Connectors | nickel-plated |
| Number of Contacts | 2 | 1st Connector Gender | Male |
| Color - Actuator/Cap | Silver | Plug/Mating Plug Diameter | 6.35mm (0.250", 1/4") - Headphone |
| Contact Material - Plating | Nickel | ||
Product Info
| Type | 1/4" Phone Plug | Gender | M |
| Series | 1/4" Guitar Plugs | Features | Cable Clamp |
| Main Purpose | Cable Clamp | Number of Ports | 1 |
| Internal Switch(s) | Does Not Contain Switch | Internal Connection | Does Not Contain Switch |
| Output Configuration | Free Hanging (In-Line) | Number of Positions/Contacts | 2 Conductors, 2 Contacts |
Documents & Media
Similar Parts
11
Switchcraft
Phone Connectors 2 CONDUCTOR 1/4 Conn 1/4" Phone Jack F 2 POS Solder Lug ST Panel Mount 2 Terminal 1 Port CONN JACK PHONE 1/4" 2POS OPEN Jack,Phone;PanelMount;2;NickelPlatedCopperAlloy;0.437in.;1/4in.
$1.2947
Details

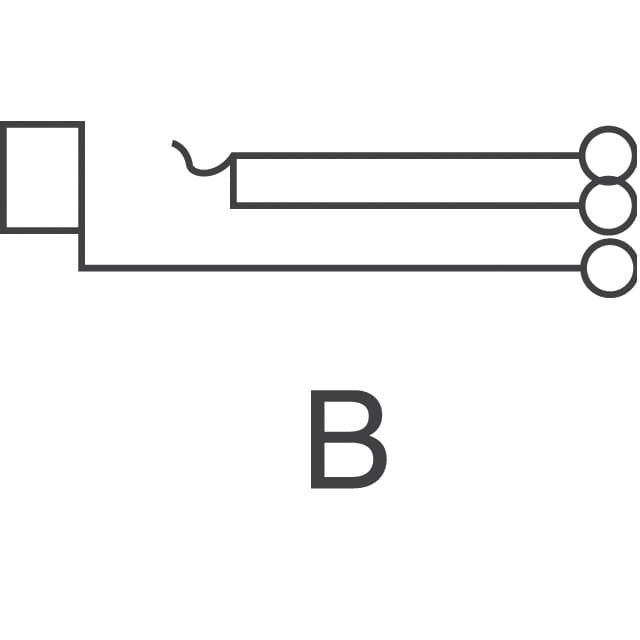

12A
Switchcraft
Phone Connectors 2 CONDUCTOR 1/4 Conn 1/4" Phone Jack F 2 POS Solder ST Panel Mount 2 Terminal 1 Port CONN JACK PHN 1/4" 2POS TIP SHNT Jack; Phone; Panel Mount; 2; Nickel Plated Copper Alloy; 0.437 in.; 1/4 in. SOCKET, 1/4" JACK, PANEL, 2POLE Jack,Phone;PanelMount;2;NickelPlatedCopperAlloy;0.437in.;1/4in. Jack panel socket ø 6.35 mm nickel-plated 2P, 12A, Switchcraft
$1.1710
Details

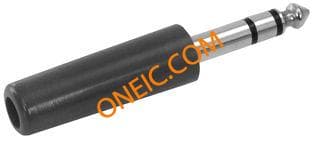

SPC15260
