| Manufacturer | |
| Description | Phone Connectors 2 CONDUCTOR 1/4 Conn 1/4" Phone Jack F 2 POS Solder ST Panel Mount 2 Terminal 1 Port CONN JACK PHN 1/4" 2POS TIP SHNT Jack; Phone; Panel Mount; 2; Nickel Plated Copper Alloy; 0.437 in.; 1/4 in. SOCKET, 1/4" JACK, PANEL, 2POLE Jack,Phone;PanelMount;2;NickelPlatedCopperAlloy;0.437in.;1/4in. Jack panel socket ø 6.35 mm nickel-plated 2P, 12A, Switchcraft |
| Category |
Business
| Lead Time | 20 Days | Other Names | SC1089 |
| Subcategory | Connector Audio and Video | Product Category | Phone Connectors |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Signal Lines | Mono | Voltage Rating | 25 V |
| Voltage - Supply | 1/4 in | Current Rating (Max) | 1 |
| Voltage - Input (Min) | 25VDC | Switch Function/Rating | Switched |
Mechanical
| Length | :32mm | Weight | 0.012 |
| Material | :Nickle Plated Brass Finish | Packaging | Bulk |
| Shielding | Unshielded | Termination | Solder |
| Pin Diameter | :6.35mm | Housing Color | Silver |
| Mounting Type | Panel Mount | Connector Type | Phone Jack |
| Contact Finish | Nickel | Mounting Style | Chassis (Panel) |
| Material - Body | :Metal | Contact Material | Copper Alloy |
| Housing Material | Brass | Length - Overall | 32.41 |
| Termination Style | Solder Lug | Number of Contacts | 2 |
| Contact Termination | :Solder | Color - Actuator/Cap | Silver |
| Pin Size - Below Flange | :6.35mm | Plug/Mating Plug Diameter | 6.35mm (0.250", 1/4") - Headphone |
| Contact Material - Plating | Tin | 1st Connector Mounting Type | :Panel |
Product Info
| Type | 1/4" Phone Jack | Gender | F |
| Series | Littel-Jax | Features | Mounting Hardware, Thread Lock |
| Number of Ports | 1 | Internal Switch(s) | Single Switch |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts | ||
Environmental
| Operating Temperature | :65°C | ||
Documents & Media
Similar Parts
228
Switchcraft

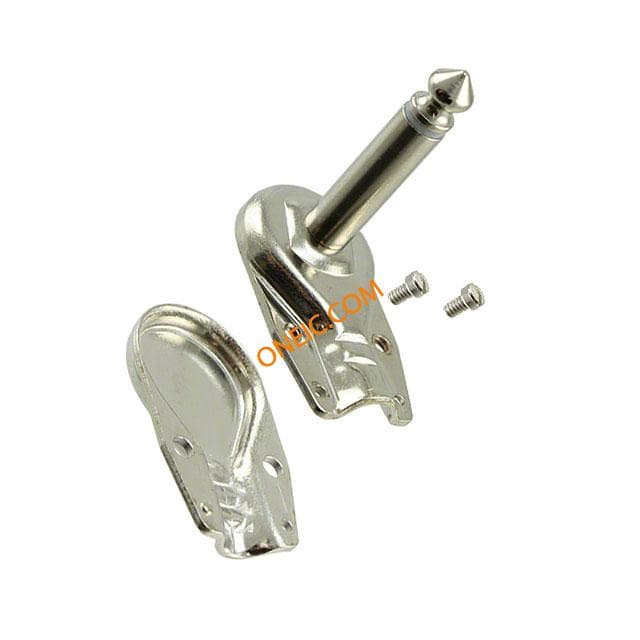

Phone Connectors 2C FLAT PLUG 1/4 Conn 1/4" Mono Plug M 2 POS Solder RA Cable Mount 2 Terminal 1 Port CONN PLUG FLAT 2COND SOLDER LUG CONNECTOR, PHONE AUD, PLUG, 2POS Plug,Phone;SolderLug;0.219to0.250;NickelPlatedCopperAlloy
280
Switchcraft

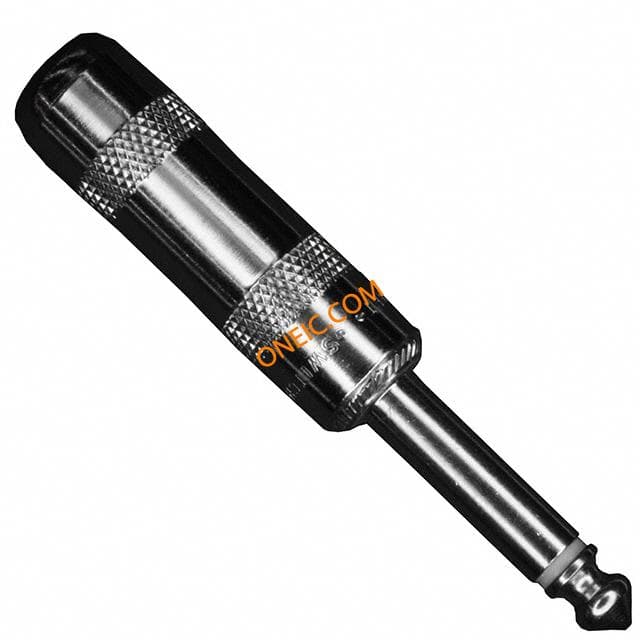

Phone Connectors 2 COND 1/4 SHIELDED Conn 1/4" Phone Plug M 2 POS Solder ST Cable Mount 2 Terminal 1 Port CONN PLUG PHONE 1/4" 2POS SOLDER Plug; Phone; Solder Lug and Cable Clamp; 0.290 in. (Max.); Copper Alloy Plug,Phone;SolderLugandCableClamp;0.290in.(Max.);CopperAlloy Jack plug Ø6.35 mm nickel-plated 2P, 280, Switchcraft
