VIPER16LD
| Manufacturer | |
| Description | Off Line Converter 16-Pin SO N Tube AC to DC Switching Converter Off-Line Switcher 54kHz to 66kHz 16-Pin SO N SMPS SO-16 SMD IC OFFLINE CONV PWM OTP 16-SOIC VIPER16LD, Switching Regulator,, 16-Pin SO N AC/DC Converters FIXED FREQ VIPER AC/DC CONVERTER, 800V, 60KHZ, 16SOIC FIXEDFREQ.PDIP7 STMicroelectronics 开关稳压器, 16针 SOIC封装 |
| Category |
Business
| MOQ | 50 | Unit Pack | 50 |
| Product Category | AC/DC Converters | Standard Package | Bulk |
| Standard Package Name | SOIC | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423300 |
| Automotive | NO | Rad Hardened | No |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Frequency | 60000Hz | Output Power | 10 W |
| Power (Watts) | 12W | Voltage Rating | :265VAC |
| Frequency Range | 54kHz ~ 66kHz | Current - Output | 1.3 mA |
| Duty Cycle (Max) | 80 % | Output Isolation | Either |
| Voltage - Supply | 11.5 V | Number of Outputs | 1 |
| Current - Output 1 | 2.5A | Voltage - Breakdown | 800V |
| Frequency - Switching | 60 kHz | Voltage - Input (Min) | 23.5V |
| Common Mode Transient Immunity (Min) | Automotive | ||
Mechanical
| Width | 4(Max) | Height | 1.5mm |
| Length | 9.9mm | Weight | 0.000638 |
| Packaging | Tube | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :16 | Package / Case | 16SO N |
| Package Cooled | SO N | Material Finish | :MSL 3 - 168 hours |
| Length - Overall | 10(Max) | Package Quantity | SO N |
| Number of Positions | 16 | Shell Size - Insert | 1.6(Max) |
| Supplier Device Package | 16-SO | ||
Product Info
| Type | SMPS | Matchcode | VIPER16LD |
| Standard Leadtime | 15 weeks | Printed Circuit Board | 16 |
Environmental
| Operating Temperature | -40 to 150 °C | Maximum Temperature Limit | 150°C |
| Operating Temperature - Junction | 150C | ||
Documents & Media
Similar Parts
216-7224-55-1902
3M Electronic Solutions Division
Test & Burn-In Sockets BURN-IN SOIC SOCKET 16 Leads Compact envelope w/ tweezer slot for easy loading SOCKET SOIC 16POS LIDDED 16 way clam-shell design SOIC socket IC & Component Sockets BURN-IN SOIC SOCKET 16 Leads CONNECTOR, IC SOCKET, SOIC 3M 1.27mm 节距, 16 路 通孔 SOIC 测试插座
EVLVIP16L-4WFL
stmicroelectronics
POWER SUPPLY Power Management IC Development Tools VIPER16Lx EVAL BOARD VIPER 16L EVAL BRD EVAL BOARD FOR VIPER16LD ISO PSU
EVLVIP16L-4WFN
stmicroelectronics
POWER SUPPLY Power Management IC Development Tools VIPER 16LN EVAL BRD EVAL BOARD FOR VIPER16LD
STEVAL-ISA010V1
stmicroelectronics
Ultra Wide Range Dual Output Back Converter Demonstration Board Based On The Viper16 Power Management IC Development Tools Viper16L Wide Range Converter Board BOARD EVAL BASED ON VIPER16 VIPER16, BUCK CONV, SMPS, DEV BOARD
STEVAL-ISA071V1
stmicroelectronics
Non-Isolated 4 W Wide Input-Voltage Range SMPS Demonstration Board Based On The Viper16 Power Management IC Development Tools VIPER16 4W non-iso SMPS Demo Board STEVAL-ISA071V1, Development Kit, Power Management, Demonstration Board Power Management IC Development Tools BOARD & REF DESIGN VIPER16, SMPS, NON ISOLATED, 4W, DEMO BOARD VIPer164WNon-IsolatedSMPSDemoBoard STMicroelectronics 演示板 电源管理 处理器和微控制器开发套件
16-350000-11-RC
Aries Electronics
SOCKET ADPTR SOIC/16PIN .300 DIP IC & Component Sockets SOIC DIP ADAPTER ADAPTOR, SOIC TO DIL, 16WAY
STEVAL-ISA119V1
STMicroelectronics

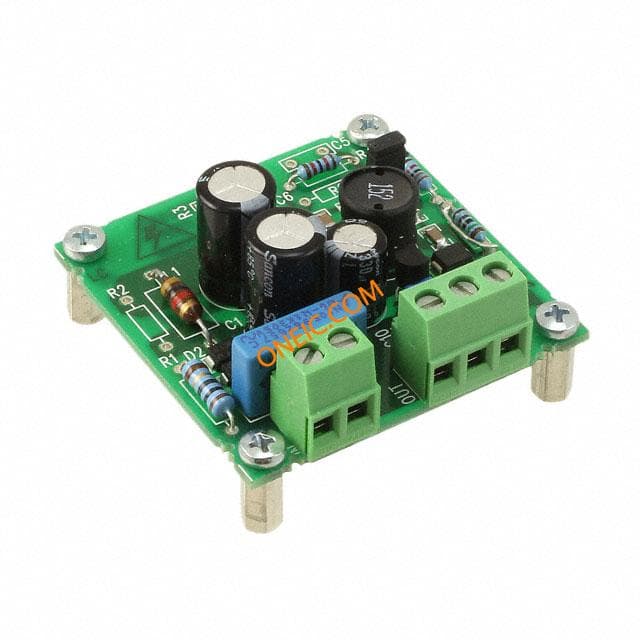

BOARD DEMO 1.5W DUAL VIPER16LD
STEVAL-ISA118V1
STMicroelectronics

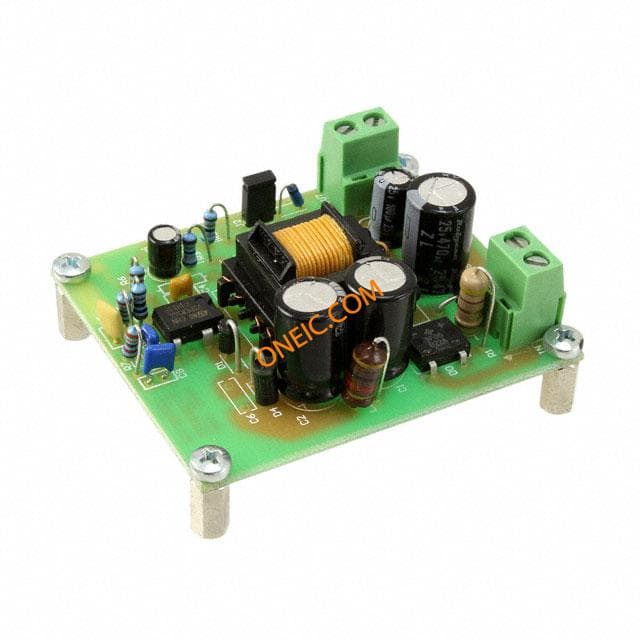

BOARD DEMO OFFLINE CONV VIPER16
