STM32F103ZCT6
| Manufacturer | |
| Description | MCU 32-bit STM32F ARM Cortex M3 RISC 256KB Flash 2.5V/3.3V 144-Pin LQFP Tray MCU 32-bit STM32F1 ARM Cortex M3 RISC 256KB Flash 2.5V/3.3V 144-Pin LQFP Tray Cortex M3 256K LQFP144 85°C MCU ARM 32BIT 256K FLASH 144LQFP STM32F103ZCT6, 32 bit Microcontroller ARM Cortex M3 72MHz 256kb Flash, 48kb RAM, USB I2C SPI 144-Pin LQFP ARM Microcontrollers - MCU 32BIT Cortex M3 H/D 261 to 512 USB/CAN MCU, 32BIT, CORTEXM3, 256KFLASH, 144LQFP Microcontroller 32 Bit LQFP-144, STM32F103ZCT6, ST |
| Category |
Business
| MOQ | 1 | Unit Pack | 60 |
| Product Category | ARM Microcontrollers - MCU | Standard Package | Trays |
| Standard Package Name | QFP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85411000 |
| Part Status | :32F103ZC | Rad Hardened | No |
| Leadfree Defin | RoHS-conform | Approval Agency | No |
Electrical
| Speed | 72 MHz | Timer | 6 x 16 bit |
| RAM Size | 48 KB | Core Size | 32-Bit |
| Core Type | ARM Cortex M3 | Frequency | 72 MHz |
| Interface | CAN/I2C/SPI/USART/USB | Clock Rate | 72 MHz |
| Resolution | 16bit | Memory Size | 256KByte |
| Memory Type | FLASH | Number of I/O | 112 |
| Number of Bits | 12/12/12 | Voltage Rating | 2 → 3.6 V |
| Watchdog Timer | 2 | Clock Frequency | :72MHz |
| Data Converters | A/D 21x12b; D/A 2x12b | Frequency - Max | 72MHz |
| Number of DAC's | 2/2 | Oscillator Type | Internal |
| Voltage - Supply | 2.5|3.3 V | Digital I/O Lines | 80pins |
| RS-232 (422, 485) | 1 | Resolution (Bits) | 12Bit |
| Serial Interfaces | 5 | Number of Channels | 2 |
| Program Memory Size | 256 KB | Program Memory Type | Flash |
| Number of ADCs / DACs | 21/21/21 | Voltage - Input (Min) | 3.6V |
| Voltage - Supply (Min) | 2 V | Frequency (Center/Band) | 16bit |
| Power Dissipation (Max) | 666 mW | Number of Bits per Element | 12/12 |
| Voltage - Supply (Vcc/Vdd) | 2 V ~ 3.6 V | ||
Mechanical
| Width | 20.2mm | Height | 1.45mm |
| Length | 20.2mm | Weight | 0.0011 |
| Packaging | TRAY | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :144 |
| Package / Case | 144LQFP | Package Cooled | LQFP |
| Material Finish | :MSL 3 - 168 hours | Length - Overall | 20 |
| Package Quantity | LQFP | Size / Dimension | 20.2 x 20.2 x 1.45mm |
| Number of Positions | 144 | Shell Size - Insert | 1.4 |
| Number of Cores/Bus Width | 32 Bit | Pulse Width Distortion (Max) | 2(16 bit) (Motor Control) |
Product Info
| SPI | 3 | USB | 1 |
| Series | STM32 | Features | CAN Controller |
| Protocol | 2 | Matchcode | STM32F103ZCT6 |
| CAN Number | 1 | Flash Size | :256KB |
| SPI Number | 2 | On-Chip RAM | 3(21-chx12-bit) |
| Peripherals | DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT | Architecture | RISC |
| Connectivity | CAN, I²C, IrDA, LIN, SPI, UART/USART, USB | Programmable | Yes |
| Core Processor | ARM® Cortex™-M3 | Number of Timers | 8 |
| Controller Series | :STM32 | Standard Leadtime | 16 weeks |
| RF Family/Standard | STM32F | DigiKey Programmable | Yes |
| Printed Circuit Board | 144 | Number of A/D Converters | :3 |
Environmental
| Temperature - Test | -40°C | Operating Temperature | -40 to 85 °C |
| Operating Temperature - Junction | 85C | ||
Documents & Media
Similar Parts
STM3210B-MCKIT
stmicroelectronics
Evaluation Kit For 3-Phase Motor Control Power Stage Kit Development Boards & Kits - ARM 32BIT Cortex M3 24V DC W/PMSM MC Starter KIT STM32 KIT STM32 MOTOR DRIVER BLDC STM32, MOTOR CONTROL, WITH JLINK, STARTER KIT
STM3210B-SK/HIT
stmicroelectronics
Evaluation Boards Cortex STM32 Hitex Kit Development Boards & Kits - ARM 32BIT Cortex M3 HITEX KIT KIT STARTER FOR STM32 STM32, W / ULINK, HITEX, STARTER KIT
STM32F103ZCT6
stmicroelectronics
MCU 32-bit STM32F ARM Cortex M3 RISC 256KB Flash 2.5V/3.3V 144-Pin LQFP Tray MCU 32-bit STM32F1 ARM Cortex M3 RISC 256KB Flash 2.5V/3.3V 144-Pin LQFP Tray Cortex M3 256K LQFP144 85°C MCU ARM 32BIT 256K FLASH 144LQFP STM32F103ZCT6, 32 bit Microcontroller ARM Cortex M3 72MHz 256kb Flash, 48kb RAM, USB I2C SPI 144-Pin LQFP ARM Microcontrollers - MCU 32BIT Cortex M3 H/D 261 to 512 USB/CAN MCU, 32BIT, CORTEXM3, 256KFLASH, 144LQFP Microcontroller 32 Bit LQFP-144, STM32F103ZCT6, ST
STM3210B-PRIMER
stmicroelectronics
Kit Evaluation Low Cost STM32 Development Boards & Kits - ARM 32BIT Cortex M3 Low Cost Kit KIT EVALUATION FOR STM32 STM3210B-PRIMER, Development Kit, 32 bit, ARM, MEMS Sensor ARM, CORTEX-M3, STM32, LCD, EVAL KIT Development kit: ARM ST; ARM ST, STM32 Raisonance STM32 Primer with RIDE PC hosted mode USB, STM3210B-PRIMER, ST
STM3210EPRIMER
stmicroelectronics
Kit Starter For STM32 512K Flash Base Primer Plus Target Board Development Boards & Kits - ARM EvoPrimer Base Eval STM32F103VE 64kb
STM3210B-PFSTICK
stmicroelectronics

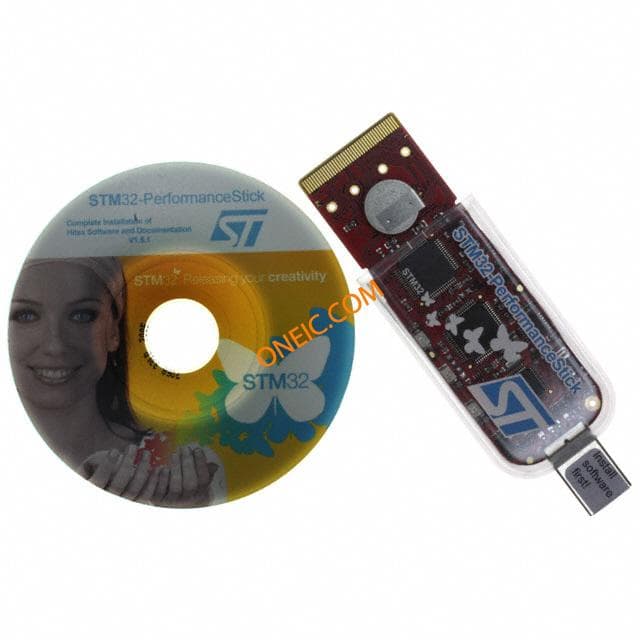

Evaluation And Development For Hitex STM32 Performance Stick Complete Tool Package Development Boards & Kits - ARM 32BIT Cortex M3 EVAL BOARD KIT PERFORMANCE STICK FOR STM32 STM3210B-PFSTICK, Development Kit, CAN, ARM PERFORMANCE STICK, HITEX, HITOP5, FOR STM32 EVAL BOARD, ARM, STM32F103B STMicroelectronics CAN 处理器和微控制器开发套件
