STEVAL-ISA049V1
| Manufacturer | |
| Description | Demonstration Board Based On The ST2S06A Power Management IC Development Tools SYNC DUAL BUCK CNVRT W/ RESET ST2S06A BOARD EVAL BASED ON ST2S06A Development Kit, Power Management With Demonstration Board SYNCDUALBUCKCONVERTER STMicroelectronics |
| Category |
Business
| Product | Power Management Modules | Product Category | Power Management IC Development Tools |
| Standard Package | Bulk | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current - Output | 500mA | Regulator Topology | Buck |
| Frequency - Switching | 1.5MHz | Voltage - Input (Min) | 1.2V, 3.3V |
Mechanical
| Packaging | Bulk | Board Thickness | Fully Populated |
Product Info
| Type | Development Kit | Contents | Board, Software |
| Technology | Power Management | Kit Contents | Demonstration Board |
| Main Purpose | DC/DC, Step Down | Card Standard | Development Kit |
| Outputs and Type | 2, Non-Isolated | Utilized IC / Part | ST2S06A |
Documents & Media
Similar Parts

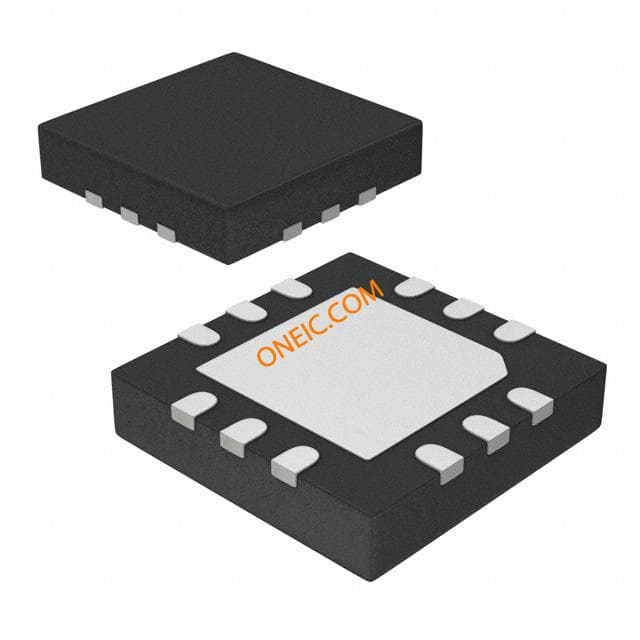

ST2S06A33PQR
stmicroelectronics
Conv DC-DC Single Step Down 2.5V to 5.5V 12-Pin QFN T/R DC/DC Switching Regulators Dual Synch Step Down Switching Reg DC-DC 5.5V 0.8A D QFN-12L SMD IC REG BUCK SYNC 3.3V 0.8A 12QFN Voltage Regulators - Switching Regulators Dual Synch Step Down Switching Reg ST2S06 Dual 0.5 A 1.5 MHz Adjustable Step Down Switching Regulator - QFN-12 Switching Voltage Regulators Dual Synch Step Down Switching Reg
ST2S06D33PQR
STMicroelectronics
DC/DC Switching Converters Dual Synch Step-Down Switch Reg IC REG BUCK SYNC ADJ 0.8A QFN12L
ST2S06BPQR
stmicroelectronics
Conv DC-DC Single Step Down 2.5V to 5.5V 12-Pin QFN T/R DC/DC Switching Regulators Dual Synch Step Down Switching Reg DC-DC 5.5V 0.8A D QFN-12L SMD IC REG BUCK SYNC ADJ 0.8A 12QFN Voltage Regulators - Switching Regulators Dual Synch Step Down Switching Reg Switching Voltage Regulators Dual Synch Step Down Switching Reg
