ST2S06A33PQR
| Manufacturer | |
| Description | Conv DC-DC Single Step Down 2.5V to 5.5V 12-Pin QFN T/R DC/DC Switching Regulators Dual Synch Step Down Switching Reg DC-DC 5.5V 0.8A D QFN-12L SMD IC REG BUCK SYNC 3.3V 0.8A 12QFN Voltage Regulators - Switching Regulators Dual Synch Step Down Switching Reg ST2S06 Dual 0.5 A 1.5 MHz Adjustable Step Down Switching Regulator - QFN-12 Switching Voltage Regulators Dual Synch Step Down Switching Reg |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 4500 | Unit Pack | 4500 |
| Other Names | 497-6909-1 | Product Category | DC/DC Switching Regulators |
| Standard Package | Tape & Reel | Standard Package Name | QFN |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Automotive | NO | Leadfree Defin | RoHS-conform |
Electrical
| PWM Type | Current Mode | Frequency | 1500000Hz |
| Efficiency | 90(Typ) % | Output Type | Adjustable|Fixed |
| Voltage Rating | 0.8(Min)|3.3 V | Line Regulation | 0.032(Typ) %Vo/Vi |
| Load Regulation | 5.5(Typ) mV | Current - Output | 0.5 A |
| Number of Outputs | 1 | Current - Output 1 | 0.8A |
| Switching Regulator | Yes | Frequency - Switching | 1500(Typ) kHz |
| Synchronous Rectifier | Yes | Voltage - Input (Min) | 5.5 V |
Mechanical
| Width | 4 mm | Packaging | Reel |
| Lead Style | No Lead | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | 12QFN |
| Length - Overall | 4 | Package Quantity | QFN |
| Number of Positions | 12 | Shell Size - Insert | 0.88 |
| Supplier Device Package | 12-QFN (4x4) | ||
Product Info
| Type | Step Down | Matchcode | ST2S06A33PQR |
| Standard Leadtime | 18 weeks | Printed Circuit Board | 12 |
Environmental
| Operating Temperature | -30 to 125 °C | Maximum Temperature Limit | 150°C |
Documents & Media
PDF Document
PDF Document
Similar Parts

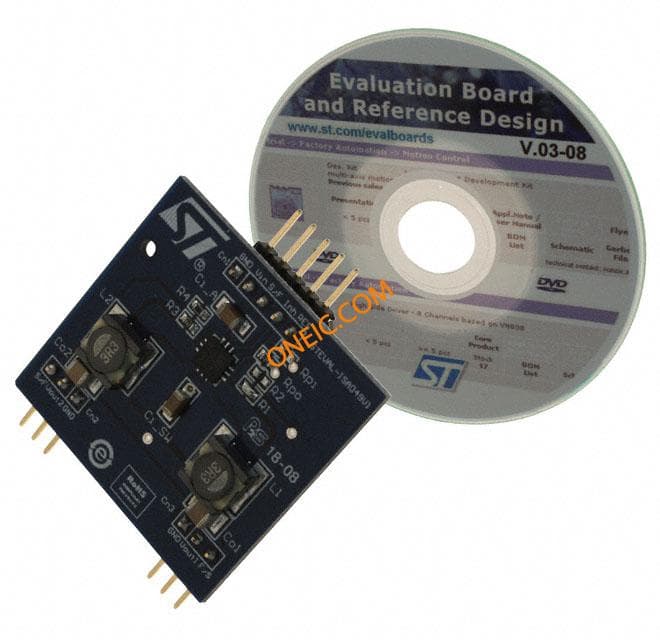

STEVAL-ISA049V1
stmicroelectronics
Demonstration Board Based On The ST2S06A Power Management IC Development Tools SYNC DUAL BUCK CNVRT W/ RESET ST2S06A BOARD EVAL BASED ON ST2S06A Development Kit, Power Management With Demonstration Board SYNCDUALBUCKCONVERTER STMicroelectronics
$445.9700
Details

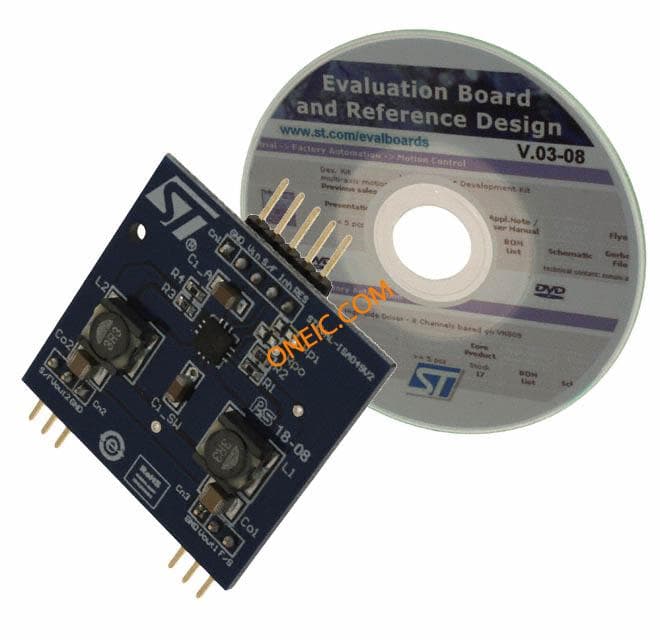

STEVAL-ISA049V2
stmicroelectronics
Demonstration Board Based On The ST2S06B Power Management IC Development Tools SYNC DUAL BUCK CNVRT W/ INHIBIT ST2S06B BOARD EVAL BASED ON ST2S06B
$445.9700
Details
