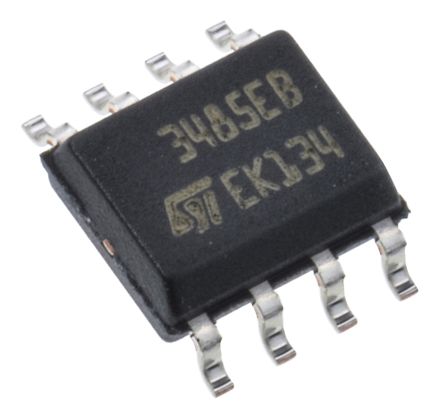

ST3485EBDR
| Manufacturer | |
| Description | Single Transmitter/Receiver RS-422/RS-485 8-Pin SO N T/R RS458/422 1T/1R 3V SO8 SMD IC TXRX 3.3V RS485/422 8 SOIC ST3485EBDR, Line Transceiver, RS-485, RS-422 15Mbit/s Differential, 3.3V, 8-Pin SO Buffers & Line Drivers Trancvr Driver/Recvr IC, RS485 / RS422, 3.3V, 15KV, 8-SO Line transmitter-receiver; RS422 / RS485; 3.3VDC; SO8 STMicroelectronics 15MBps 线路收发器, RS-422，RS-485接口, 差分接收器信号, 3.3 V, 8针 SOIC封装 |
| Category |
Business
| MOQ | 1 | Unit Pack | 2500 |
| Other Names | 497-2080-2 | Product Category | Buffers & Line Drivers |
| Standard Package | Cut Tape | Factory Pack Quantity | 2500 |
| Standard Package Name | SOIC | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423300 |
| Automotive | NO | Rad Hardened | No |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Data Rate | 15 Mbps | Interface | RS-422|RS-485 |
| Drive Type | 3-State | Input Signal | Differential |
| Signal Types | Differential | Transmission | 1 |
| Power - Input | Single | Data Rate (Max) | Multidrop|Multipoint |
| Current - Output | 2.2 mA | Current - Supply | 2.2 |
| Voltage - Supply | 3.3 V | Power Supply Type | Single |
| Receiver Hysteresis | 70mV | Voltage - Input (Min) | 3V |
| Voltage - Supply Span (Typ) | Not Required V | Number of Receivers per Line | 10 (RS422), 32 (RS485) |
Mechanical
| Width | 4mm | Height | 1.25mm |
| Length | 5mm | Weight | 0.003 |
| Footprint | 29.4mm² | Packaging | Tape and Reel |
| Case Color | :SOIC | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :8 | Package / Case | 8SO N |
| Package Cooled | SO | Material Finish | :MSL 1 - Unlimited |
| Top Termination | 85°C | Length - Overall | 5(Max) |
| Package Quantity | SO N | Size / Dimension | 5 x 4 x 1.25mm |
| Number of Positions | 8 | Shell Size - Insert | 1.65(Max) |
| Minimum Working Height | -40°C | Supplier Device Package | 8-SO |
Product Info
| Spg | 2500 | Type | RS485/422 |
| Duplex | Half | DELETED | Compliant |
| Function | Line Transceiver | Protocol | RS422, RS485 |
| Matchcode | ST3485EBDR | Communications | RS-422|RS-485 |
| Number of Units | 1 | Number of Drivers | :1 |
| Standard Leadtime | 16 weeks | Number of Receivers | 1 |
| Printed Circuit Board | 8 | Number of Transmitters | 1 |
| Number of Drivers/Receivers | 1/1 | Number of Transmitters/Receivers | 1 |
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
