ST1S06APUR
| Manufacturer | |
| Description | Conv DC-DC Single Step Down 2.7V to 6V 6-Pin DFN T/R DC-DC 7V 1.5A D DFN6D SMD IC REG BUCK SYNC 1.5A DFN6 Voltage Regulators - Switching Regulators Synch rectification inhibit 1.5A 1.5 REGULATOR,VOLTAGE,STEP-DOWN,1.5A,ADJ,DFN6PKG Switching Voltage Regulators Synch rectification inhibit 1.5A 1.5 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 3000 | Unit Pack | 3000 |
| Other Names | 497-6309-2 | Product Category | Voltage Regulators - Switching Regulators |
| Standard Package | Tape & Reel | Factory Pack Quantity | 3000 |
| Standard Package Name | DFN | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Automotive | NO | Rad Hardened | No |
| Leadfree Defin | RoHS-conform | ||
Electrical
| PWM Type | Current Mode | Frequency | 1500000Hz |
| Efficiency | 90(Typ) % | Output Type | Adjustable |
| Regulator Type | DC-DC,Switching | Voltage Rating | 0.5 to 5 V |
| Line Regulation | 0.3% | Load Regulation | 0.3 % |
| Oscillator Type | 1.5MHz | Current - Output | 1.5(Min) A |
| Voltage - Supply | 2.7 to 6 V | Number of Outputs | 1 |
| Current - Output 1 | 1.5A | Regulator Topology | Step Down |
| Resistance @ 25degC | 10°C/W | Switching Regulator | Yes |
| Frequency - Switching | 1500(Typ) kHz | Synchronous Rectifier | Yes |
| Voltage - Input (Min) | 6V | Input Logic Level - Low | 600nA |
| DC Voltage - Input (Min) | 2.7 V | ||
Mechanical
| Packaging | Tape and Reel | Lead Style | No Lead |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Package / Case | 6DFN | Package Cooled | DFN |
| Package Quantity | DFN | Number of Positions | 6 |
| Supplier Device Package | 6-DFN (3x3) | ||
Product Info
| Type | Step Down | Matchcode | ST1S06APUR |
| Standard Leadtime | 18 weeks | ||
Environmental
| Operating Temperature | -30 to 125 °C | Usable Temperature Range | -40to+150°C |
| Maximum Temperature Limit | 150°C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts

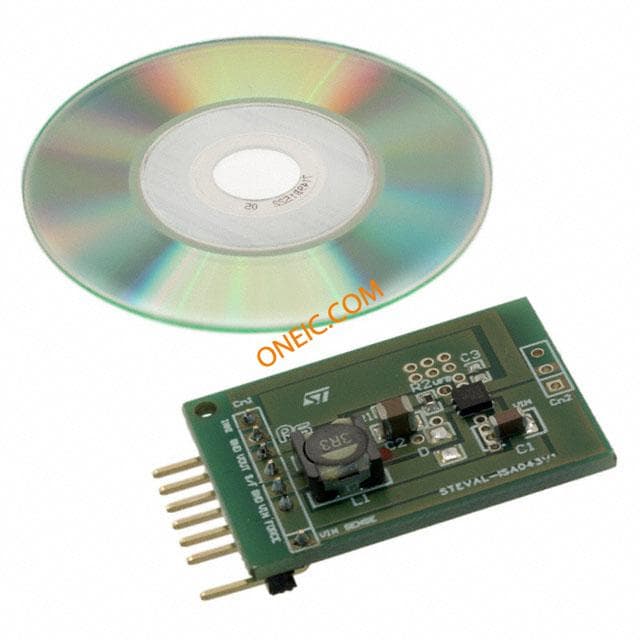

STEVAL-ISA043V1
stmicroelectronics
Evaluation Board For 1.5 A/1.2 V HighFrequency Synchronous Buck Converter Power Management IC Development Tools 1.5A / 1.2V HI FREQ SYNC BUCK CONVERTER BOARD EVAL BASED ON ST1S06 Development Kit, Power Management With Demonstration Board, Soft Starter Control Block 1.5A/1.2VBUCKCONVERTER STMicroelectronics
$45.8738
Details

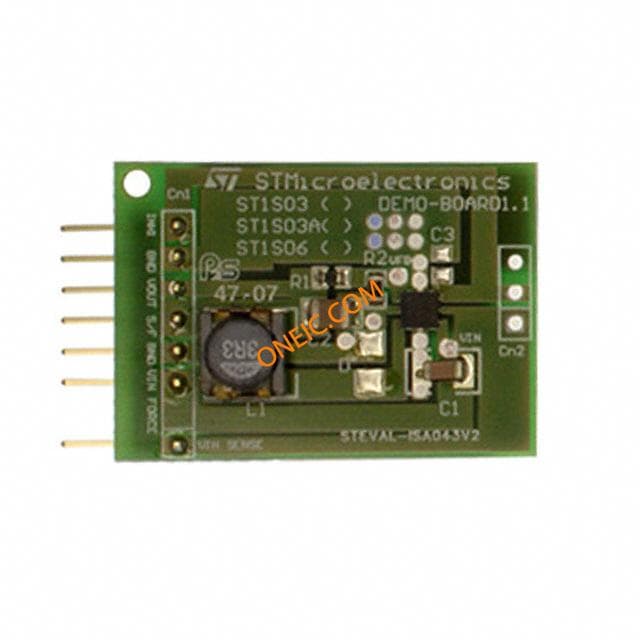

STEVAL-ISA043V2
stmicroelectronics
Evaluation Board For 1.5 A/3.3 V HighFrequency Synchronous Buck Converter Power Management IC Development Tools 1.5A / 3.3V HI FREQ SYNC BUCK CONVERTER BOARD EVAL BASED ON ST1S06 Development Kit, Power Management With Demonstration Board, Soft Starter Control Block 1.5A/3.3VBUCKCONVERTER STMicroelectronics
$54.2136
Details
