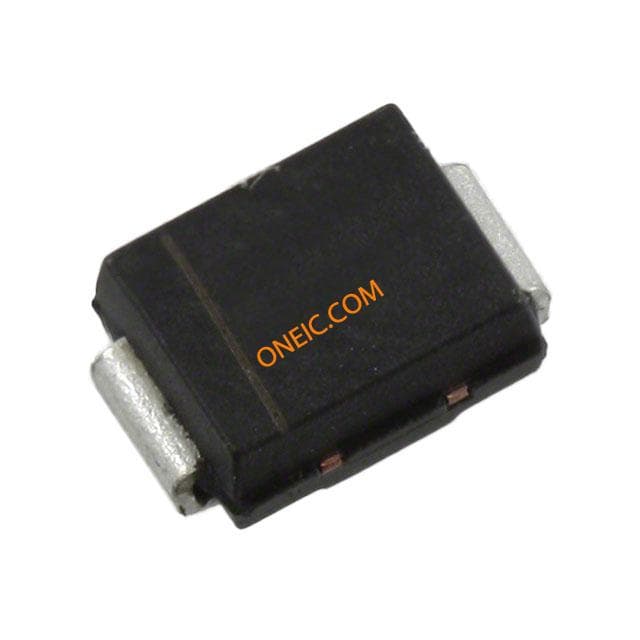

SMBJ10CA-TR
| Manufacturer | |
| Description | Diode TVS Single Bi-Dir 10V 600W 2-Pin SMB T/R TVS DIODE 10VWM 21.7VC DO214AA TVS Diode Bi-Directional SMBJ10CA-TR 21.7V, 600W, SMB 2-Pin TVS Diodes - Transient Voltage Suppressors 600W 10V Bidirect DIODE, TVS, 10V, 600W DIODE, TVS, 10V, 600W, BI, SMB, RL DIODE,SMBJ10CA-TR STMicroelectronics 双向 TVS 二极管, 600W, 21.7V, 2针 SMB封装 |
| Category |
Business
| Other Names | 497-3000-2 | Product Category | TVS Diodes - Transient Voltage Suppressors |
| Standard Package | Cut Tape, Tape & Reel | Factory Pack Quantity | 2500 |
| Standard Package Name | DO-214-AA | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85363010 |
| ESD Protection | No | ||
Electrical
| Channels | 1 Channel | Capacitance | 2300 pF |
| TVS Polarity | :Bidirectional | Current - Surge | 40 A |
| Current - Output | 1 mA | Voltage - Supply | 10V |
| Number of Elements | 1 | Power - Peak Pulse | 600 W |
| Voltage - Clamping | 21.7 V | Capacitance @ Vr, F | :2300pF |
| Diode Configuration | :SMB | Voltage - Breakdown | 11.1 V |
| Voltage - Breakover | :11.1V | Voltage - Isolation | :10V |
| Power Line Protection | No | Voltage - Input (Min) | 10 V |
| Bidirectional Channels | 1 | Voltage - Supply (Min) | 10 V |
| Power Dissipation (Max) | :6W | Current - Peak Pulse (8/20us) | 184 A |
| Current - Reverse Leakage @ Vr | 0.2 uA | Current - Peak Pulse (10/1000us) | 184A (8/20µs) |
Mechanical
| Depth | :3.56mm | Width | :5.59mm |
| Length | :2.44mm | Weight | 0.002 |
| Packaging | Tape and Reel | Lead Style | J-Lead |
| Mounting Type | Surface Mount | Number of Pins | :2 |
| Package / Case | 2SMB | Material Finish | :MSL 1 - Unlimited |
| Package Quantity | SMB | Size / Dimension | 3.95(Max) mm W x 4.6(Max) mm L |
| Termination Style | SMD/SMT | Number of Positions | 2 |
| Supplier Device Package | SMB | ||
Product Info
| Type | Zener | Series | SMBJ |
| Polarity | Bidirectional | Diode Type | :Bidirectional TVS |
| SMD Marking | :BBD | Applications | General Purpose |
| Configuration | Single | Port Direction | Bi-Directional |
Environmental
| Operating Temperature | -55 to 150 °C | Operating Temperature - Junction | -55 to 150 |
