SMBJ10CA
| Manufacturer | |
| Description | TVS Diodes - Transient Voltage Suppressors 10Vr 600W 35.3A 5% BiDirectional Diode TVS Single Bi-Dir 10V 600W 2-Pin SMB T/R TVS SURF MT DO214AA - SMBJ10CA 3K T&R TVS DIODE 10VWM 17VC SMB Diode;35.3A(Max.);11.10V(Min.)@1mA;5uA(Max.)@10V;100A(Max.) Diode: transil; 600W; 10V; 35.3A; bidirectional; DO214AA TRANSIL BI 0,6KW 12V SMB |
| Category |
Business
| MOQ | 3000 | Unit Pack | 3000 |
| Product Category | TVS Diodes - Transient Voltage Suppressors | Standard Package | 3,000 |
| Factory Pack Quantity | 3000 | Standard Package Name | DO-214-AA |
Compliance
| RoHS | Lead free by exemption / RoHS Compliant | EU RoHS | Compliant |
| Automotive | NO | Rad Hardened | No |
| ESD Protection | No | Leadfree Defin | RoHS-conform |
Electrical
| Channels | 1 Channel | Power - Rated | 600W |
| Current - Surge | 35.3 A | Current - Output | 5uA(Max.)@10V |
| Voltage - Supply | 10V | Current - Leakage | 0.01 uA |
| Voltage - Working | 10 V | Number of Elements | 1 |
| Power - Peak Pulse | 600W | Voltage - Clamping | 17V |
| Current - Trip (It) | 1 mA | Voltage - Breakdown | 11.1V |
| Current Rating (Max) | 35.3A | Contact Voltage (Max) | 10V |
| Power Line Protection | No | Voltage - Input (Min) | 10 |
| Bidirectional Channels | 1 | Voltage - Supply (Min) | 10 V |
| Power - Average Forward | 600 W | Power Dissipation (Max) | 600W |
| Current - Peak Pulse (8/20us) | 35.3 A | Current - Reverse Leakage @ Vr | 5μA |
| Current - Peak Pulse (10/1000us) | 35.3A | Voltage - Reverse Standoff (Typ) | 10 V |
Mechanical
| Height | 2.44 mm | Length | 5.59 mm |
| Weight | 0.093g | Packaging | Tape and Reel |
| Lead Style | J-Lead | Termination | Solder |
| Mounting Type | Surface Mount | Mounting Style | SMD |
| Package / Case | DO-214AA, SMB | Package Cooled | SMB |
| Package Quantity | SMB | Primary Material | Diodes |
| Size / Dimension | 3.94 mm W x 5.59 mm L x 2.44 mm H | Termination Style | SMD/SMT |
| Number of Positions | 2 | Supplier Device Package | SMB |
Product Info
| Spg | 3000 | Type | Zener |
| Series | SMBJ | Polarity | Bidirectional |
| Structure | bidirectional | Diode Type | transil |
| Applications | Telecom | Manufacturer | SMBJSeries |
| Configuration | Bidirectional | Port Direction | Bi-Directional |
| Number of Units | 1 | Application Specifics | BIDIRECTIO |
| For Use With/Related Products | Data/Comm,IndustrialEquipment | ||
Environmental
| Operating Temperature | -55°C ~ 150°C | Operating Temperature - Junction | 150°C |
Documents & Media
Similar Parts
SMBJ10CA-TR
stmicroelectronics
Diode TVS Single Bi-Dir 10V 600W 2-Pin SMB T/R TVS DIODE 10VWM 21.7VC DO214AA TVS Diode Bi-Directional SMBJ10CA-TR 21.7V, 600W, SMB 2-Pin TVS Diodes - Transient Voltage Suppressors 600W 10V Bidirect DIODE, TVS, 10V, 600W DIODE, TVS, 10V, 600W, BI, SMB, RL DIODE,SMBJ10CA-TR STMicroelectronics 双向 TVS 二极管, 600W, 21.7V, 2针 SMB封装
80-4-5
Illinois Capacitor, Inc.
Solder Removal .110 BLUE Chemical,DesolderingBraid,Rosin,EsdSafe,5FootBobbin,.110Inch/2.8mmBlue Soder-Wick® Rosin SD .110" ESD 5' Spool Desoldering braids 2.8 mm, 80-4-5, Chemtronics
SA10CA
Littelfuse
TVS Diodes - Transient Voltage Suppressors SA10CA Bi-Directional Diode TVS Single Bi-Dir 10V 500W 2-Pin DO-15 T/R TVS DIODE AXIAL LEAD - SA10CA T&R TVS DIODE 10VWM 17VC AXIAL
SM6T10CA
stmicroelectronics
Diode TVS Single Bi-Dir 8.55V 600W 2-Pin SMB T/R TRANSIL BI 0,6KW 10V SMB TVS DIODE 8.55VWM 18.6VC SMB TVS Diode Bi-Directional SM6T10CA 18.6V, 600W, SMB 2-Pin TVS Diodes - Transient Voltage Suppressors 600W 10V Bidirect DIODE, TVS, 10V, 600W DIODE, TVS, 10V, 600W, BI, SMB , RL SM6T10CA Diode: transil; 600W; 10V; bidirectional; DO214AA TVS diode, 8.55 V 600 W SMB, SM6T10CA, ST STMicroelectronics 双向 TVS 二极管, 600W, 18.6V, 2针 SMB封装

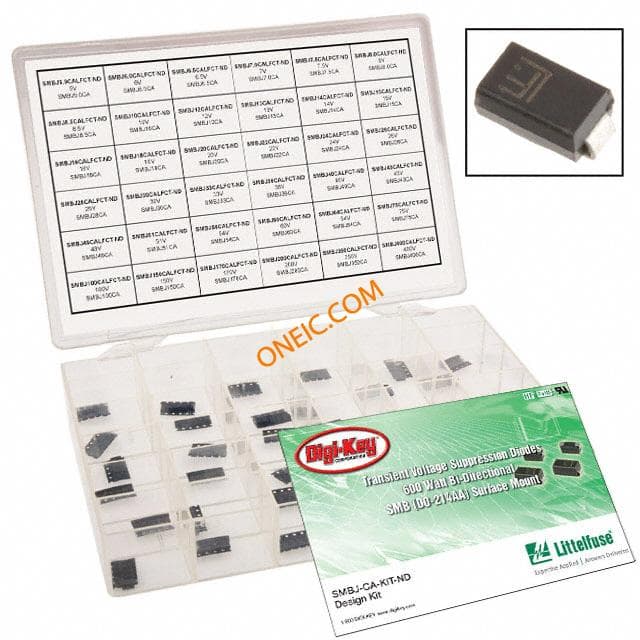

4879333
