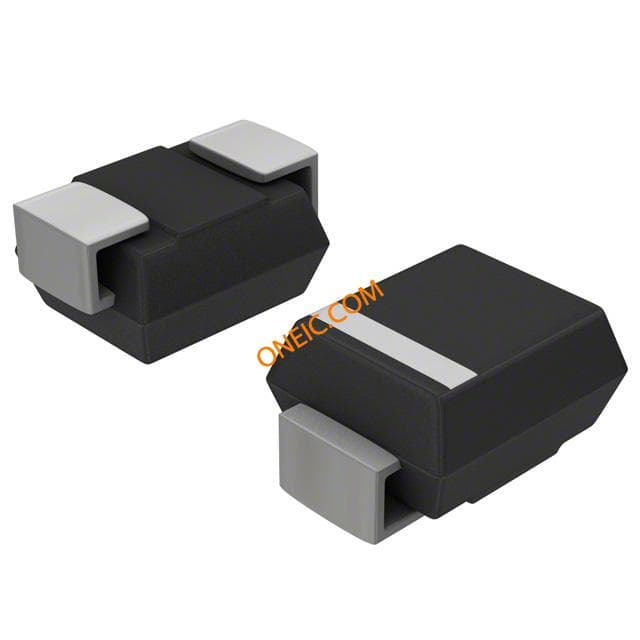

SMAJ5.0A-TR
| Manufacturer | |
| Description | Diode TVS Single Uni-Dir 5V 400W 2-Pin SMA T/R TRANSIL UNI 0,4KW 6,8V SMA TVS DIODE 5VWM 13.4VC DO214AC TVS Diode Uni-Directional SMAJ5.0A-TR 13.4V, 400W, SMA 2-Pin TVS Diodes - Transient Voltage Suppressors 400W 5.0V Unidirect DIODE, TVS, UNIDIRECTION, 5V, 400W, SMA DIODE, TVS, 5V, 400W, UNI, SMA, RL DIODE,TVS,UNI-DIR,400W5V,DO-214ACPKG STMicroelectronics 单向 TVS 二极管, 400W, 13.4V, 2针 SMA封装 |
| Category |
Business
| MOQ | 5000 | Unit Pack | 5000 |
| Other Names | 497-2999-1 | Product Category | TVS Diodes - Transient Voltage Suppressors |
| Standard Package | Cut Tape, Tape & Reel | Factory Pack Quantity | 5000 |
| Standard Package Name | DO-214-AC | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85363010 |
| Automotive | NO | Rad Hardened | No |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Channels | 1 Channel | Tolerance | 5% |
| Capacitance | 3500 pF | TVS Polarity | :Unidirectional |
| Current - Surge | 10 mA | Current - Output | 10 mA |
| Voltage - Supply | 5V | Current - Leakage | 0.02 uA |
| Number of Elements | 1 | Power - Peak Pulse | 400 W |
| Voltage - Clamping | 13.4 V | Capacitance @ Vr, F | :3500pF |
| Current - Trip (It) | 10 mA | Diode Configuration | :SMA |
| Voltage - Breakdown | 6.4 V | Voltage - Breakover | :6.4V |
| Voltage - Isolation | :5V | Current Rating (Max) | :10mA |
| Contact Voltage (Max) | 5V | Power Line Protection | No |
| Voltage - Input (Min) | 5 V | Bidirectional Channels | :Unidirectional |
| Voltage - Supply (Min) | 5 V | Power Dissipation (Max) | 0.4kW |
| Unidirectional Channels | 1 | Current - Peak Pulse (8/20us) | 174 A |
| Current - Reverse Leakage @ Vr | 20 uA | Voltage - DC Reverse (Vr) (Max) | :6.74V |
| Current - Peak Pulse (10/1000us) | 174A (8/20µs) | Voltage - Reverse Standoff (Typ) | 5 V |
Mechanical
| Depth | :5.6mm | Width | :2.9mm |
| Length | :2.9mm | Weight | 0.000068 |
| Packaging | Tape and Reel | Lead Style | J-Lead |
| Mounting Type | Surface Mount | Number of Pins | :2 |
| Package / Case | 2SMA | Package Cooled | SMA |
| Material Finish | :MSL 1 - Unlimited | Package Quantity | SMA |
| Size / Dimension | 5.35 mm W x 4.6 mm L x 2.45 mm H | Termination Style | SMD/SMT |
| Number of Positions | 2 | Supplier Device Package | SMA |
Product Info
| Type | Zener | Series | SMAJ |
| Polarity | Unidirectional | Matchcode | SMAJ5.0A-TR |
| Diode Type | :Unidirectional TVS | SMD Marking | :AE |
| Applications | General Purpose | Configuration | Single |
| Port Direction | Uni-Directional | Standard Leadtime | 25 weeks |
| Application Specifics | UNIDIRECTI | ||
Environmental
| Operating Temperature | -55 to 150 °C | Operating Temperature - Junction | -55 to 150 |
